2170936 LAPP

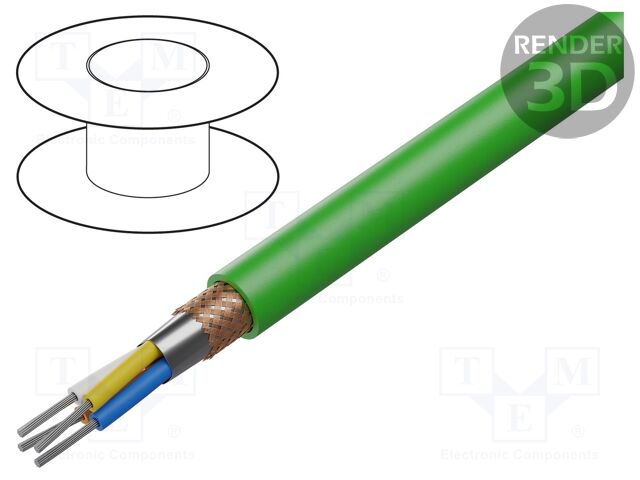

Category: Cables for Power Chains - Shielded, Description: Wire: data transmission; ETHERLINE® FESTOON; 2x2x22AWG; green, Type of wire: data transmission, Manufacturer series: ETHERLINE® FESTOON, Cable structure: 2x2x22AWG, Wire insulation material: PVC, Insulation colour: green, Kind of core: Cu; tinned, Shield structure: Al foil; braid made of copper wires; shielded twofold, Number of cores: 4, Cable application: EtherCAT; EtherNet/IP; Festoon; industrial applications; industrial Ethernet; overhead crane; power chain; PROFINET, Cable external diameter: 6.5mm, Core structure: stranded, Rated voltage: 0.125kV, CPR standard: no classification, Conform to the norm: CSA FT4; FT1; UL 444; UL 758; UL 21694; UL PLTC, Kind of material: no flame propagation, Resistance to: flame; mechanical stesses; most of oils; UV rays, Core diameter: 22AWG, No. of pairs: 2, Ethernet category: Cat 5e, Cable features: Fast Connect, Operating temperature: -40...80°C, Information: The UL Label and Mark on full factory packaging only.
