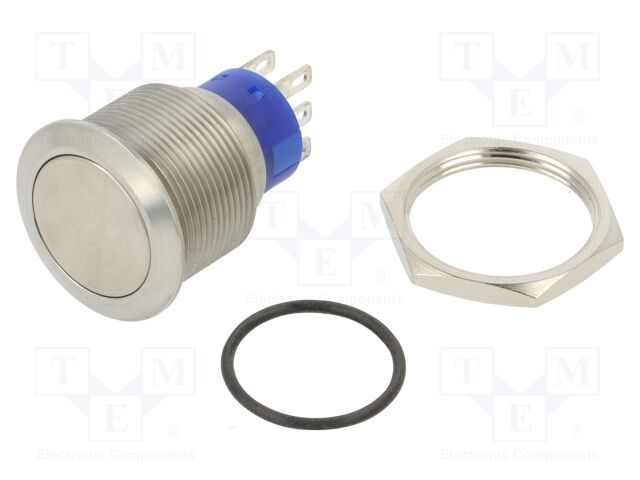

2213771-5 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Manufacturer series: AV
Flammability rating: UL94V-0
Contacts configuration: DPST
Mounting: on panel
IP rating: IP67
Illumination: none
Switching method: OFF-(ON)
Button shape: round
Actuator colour: silver
Body colour: silver
Contact plating: silver plated
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Key stroke: 3.2mm
Mounting hole diameter: Ø22.2mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
AC contacts rating @R: 3A / 250V AC
Operating Force: 3.5N
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Leads: connectors
Contact material: copper
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Manufacturer series: AV
Flammability rating: UL94V-0
Contacts configuration: DPST
Mounting: on panel
IP rating: IP67
Illumination: none
Switching method: OFF-(ON)
Button shape: round
Actuator colour: silver
Body colour: silver
Contact plating: silver plated
Type of switch: vandal resistant
Operating temperature: -20...55°C
Leads dimensions: 2.8x0.5mm
Key stroke: 3.2mm
Mounting hole diameter: Ø22.2mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
AC contacts rating @R: 3A / 250V AC
Operating Force: 3.5N
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Leads: connectors
Contact material: copper
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 24.32 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2213771-5 TE Connectivity
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON), Manufacturer series: AV, Flammability rating: UL94V-0, Contacts configuration: DPST, Mounting: on panel, IP rating: IP67, Illumination: none, Switching method: OFF-(ON), Button shape: round, Actuator colour: silver, Body colour: silver, Contact plating: silver plated, Type of switch: vandal resistant, Operating temperature: -20...55°C, Leads dimensions: 2.8x0.5mm, Key stroke: 3.2mm, Mounting hole diameter: Ø22.2mm, Max. contact resistance:: 50mΩ, Stable positions number: 1, Number of positions: 2, AC contacts rating @R: 3A / 250V AC, Operating Force: 3.5N, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 1GΩ, Leads: connectors, Contact material: copper, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 2213771-5 nach Preis ab 19.43 EUR bis 25.89 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2213771-5 | Hersteller : TE Connectivity |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON) Manufacturer series: AV Flammability rating: UL94V-0 Contacts configuration: DPST Mounting: on panel IP rating: IP67 Illumination: none Switching method: OFF-(ON) Button shape: round Actuator colour: silver Body colour: silver Contact plating: silver plated Type of switch: vandal resistant Operating temperature: -20...55°C Leads dimensions: 2.8x0.5mm Key stroke: 3.2mm Mounting hole diameter: Ø22.2mm Max. contact resistance:: 50mΩ Stable positions number: 1 Number of positions: 2 AC contacts rating @R: 3A / 250V AC Operating Force: 3.5N Electrical life: 50000 cycles Mechanical durability: 1000000 cycles Min. insulation resistance: 1GΩ Leads: connectors Contact material: copper |
auf Bestellung 8 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
2213771-5 | Hersteller : TE Connectivity / Alcoswitch |
 Pushbutton Switches AV22 DPM 5A NO LED |
auf Bestellung 97 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
2213771-5 | Hersteller : TE Connectivity |
Switch Push Button OFF (ON) DPDT Flush Round Button 3A 250VAC 36VDC Momentary Contact Panel Mount Solder Lug |
Produkt ist nicht verfügbar |
