2213775-3 TE Connectivity / Alcoswitch
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
107-111 Tag (e)
Mindestmenge:
200 Stücke
Produktrezensionen
Produktbewertung abgeben

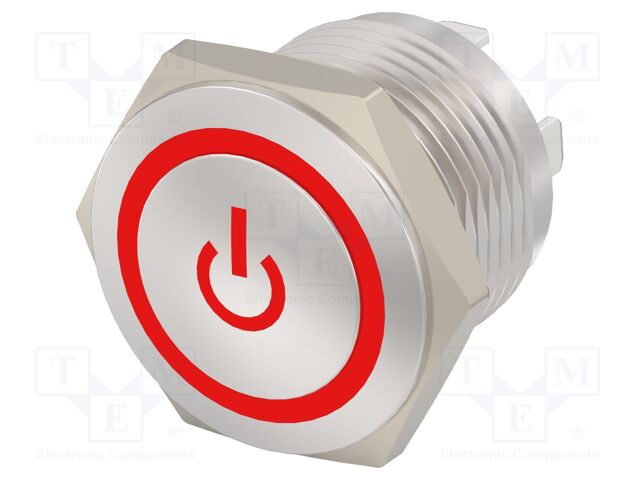

Technische Details 2213775-3 TE Connectivity / Alcoswitch
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST; AV; 2A/36VDC; IP67; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST, Manufacturer series: AV, DC contacts rating @R: 2A / 36V DC, IP rating: IP67, Switching method: OFF-(ON), Illumination: LED; ring, Backlight colour: red, Illumination voltage: 12V DC, Leads: connectors, Leads dimensions: 2.75x0.5mm, Electrical life: 200000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4.5N, Mechanical durability: 1000000 cycles, Button shape: round, Mounting hole dimensions: Ø16mm, Body colour: silver, Contact material: copper, Contact plating: silver plated, Actuator colour: silver, Min. insulation resistance: 1GΩ, Mounting: on panel, Key stroke: 2mm, Flammability rating: UL94V-0, Operating temperature: -20...70°C.
Weitere Produktangebote 2213775-3
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
2213775-3 | TE Connectivity |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST; AV; 2A/36VDC; IP67; OFF-(ON) Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: SPST Manufacturer series: AV DC contacts rating @R: 2A / 36V DC IP rating: IP67 Switching method: OFF-(ON) Illumination: LED; ring Backlight colour: red Illumination voltage: 12V DC Leads: connectors Leads dimensions: 2.75x0.5mm Electrical life: 200000 cycles Max. contact resistance:: 50mΩ Operating Force: 4.5N Mechanical durability: 1000000 cycles Button shape: round Mounting hole dimensions: Ø16mm Body colour: silver Contact material: copper Contact plating: silver plated Actuator colour: silver Min. insulation resistance: 1GΩ Mounting: on panel Key stroke: 2mm Flammability rating: UL94V-0 Operating temperature: -20...70°C |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 200 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 2213775-3 |
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; AV; 2A/36VDC; IP67; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST
Manufacturer series: AV
DC contacts rating @R: 2A / 36V DC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: red
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.75x0.5mm
Electrical life: 200000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole dimensions: Ø16mm
Body colour: silver
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 2mm
Flammability rating: UL94V-0
Operating temperature: -20...70°C
