231-312/037-000 WAGO Innovative Connections
Hersteller: WAGO Innovative Connections

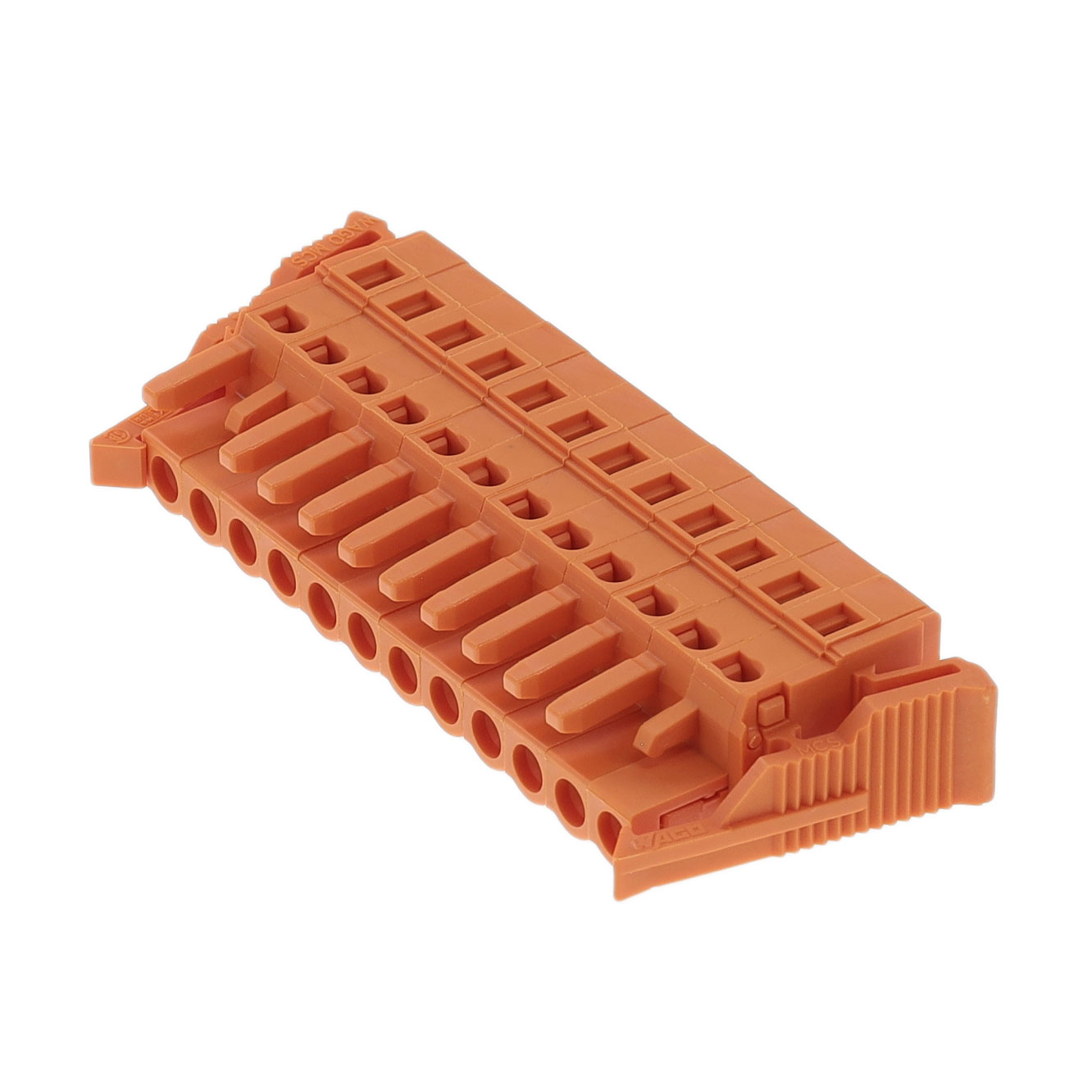

Conn Terminal Block RCP 12 POS 5.08mm Spring Clamp RA Cable Mount 15A Box
| Anzahl | Privatkunde |
|---|---|
| 6+ | 31.81 EUR |
| 25+ | 29.23 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
14-21 Tag (e)
Mindestmenge:
6 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details 231-312/037-000 WAGO Innovative Connections
Description: TERM BLOCK PLUG 12POS 5.08MM, Features: Lever Actuated, Retention Latches (Non-Wire Side), Packaging: Box, Color: Orange, Mounting Type: Free Hanging (In-Line), Number of Positions: 12, Pitch: 0.200" (5.08mm), Type: Plug, Female Sockets, Operating Temperature: -60°C ~ 85°C, Termination Style: Screwless - Push-In Spring, Current - IEC: 16A, Number of Levels: 1, Wire Gauge or Range - AWG: 12-28 AWG, Wire Gauge or Range - mm²: 0.08-2.5mm², Positions Per Level: 12, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Part Status: Active, Current - UL: 15 A, Voltage - IEC: 630 V, Voltage - UL: 600 V.
Weitere Produktangebote 231-312/037-000 nach Preis ab 20.04 EUR bis 40.17 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
231-312/037-000 | WAGO Corporation |
Description: TERM BLOCK PLUG 12POS 5.08MM Features: Lever Actuated, Retention Latches (Non-Wire Side) Packaging: Box Color: Orange Mounting Type: Free Hanging (In-Line) Number of Positions: 12 Pitch: 0.200" (5.08mm) Type: Plug, Female Sockets Operating Temperature: -60°C ~ 85°C Termination Style: Screwless - Push-In Spring Current - IEC: 16A Number of Levels: 1 Wire Gauge or Range - AWG: 12-28 AWG Wire Gauge or Range - mm²: 0.08-2.5mm² Positions Per Level: 12 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 15 A Voltage - IEC: 630 V Voltage - UL: 600 V |
auf Bestellung 11 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
231-312/037-000 | WAGO |
Pluggable Terminal Blocks 1-conductor female connector; CAGE CLAMP; 2.5 mm; Pin spacing 5.08 mm; 12-pole; Lateral locking levers; orange |
auf Bestellung 100 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 231-312/037-000 |
|
Hersteller: WAGO Corporation
Description: TERM BLOCK PLUG 12POS 5.08MM
Features: Lever Actuated, Retention Latches (Non-Wire Side)
Packaging: Box
Color: Orange
Mounting Type: Free Hanging (In-Line)
Number of Positions: 12
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -60°C ~ 85°C
Termination Style: Screwless - Push-In Spring
Current - IEC: 16A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-28 AWG
Wire Gauge or Range - mm²: 0.08-2.5mm²
Positions Per Level: 12
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 15 A
Voltage - IEC: 630 V
Voltage - UL: 600 V
Description: TERM BLOCK PLUG 12POS 5.08MM
Features: Lever Actuated, Retention Latches (Non-Wire Side)
Packaging: Box
Color: Orange
Mounting Type: Free Hanging (In-Line)
Number of Positions: 12
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -60°C ~ 85°C
Termination Style: Screwless - Push-In Spring
Current - IEC: 16A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-28 AWG
Wire Gauge or Range - mm²: 0.08-2.5mm²
Positions Per Level: 12
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 15 A
Voltage - IEC: 630 V
Voltage - UL: 600 V
auf Bestellung 11 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 38.77 EUR |
| 10+ | 27.7 EUR |
| 231-312/037-000 |
|
Hersteller: WAGO
Pluggable Terminal Blocks 1-conductor female connector; CAGE CLAMP; 2.5 mm; Pin spacing 5.08 mm; 12-pole; Lateral locking levers; orange
Pluggable Terminal Blocks 1-conductor female connector; CAGE CLAMP; 2.5 mm; Pin spacing 5.08 mm; 12-pole; Lateral locking levers; orange
auf Bestellung 100 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 40.17 EUR |
| 10+ | 28.71 EUR |
| 25+ | 25.66 EUR |
| 50+ | 23.81 EUR |
| 100+ | 22.35 EUR |
| 250+ | 20.88 EUR |
| 500+ | 20.04 EUR |
