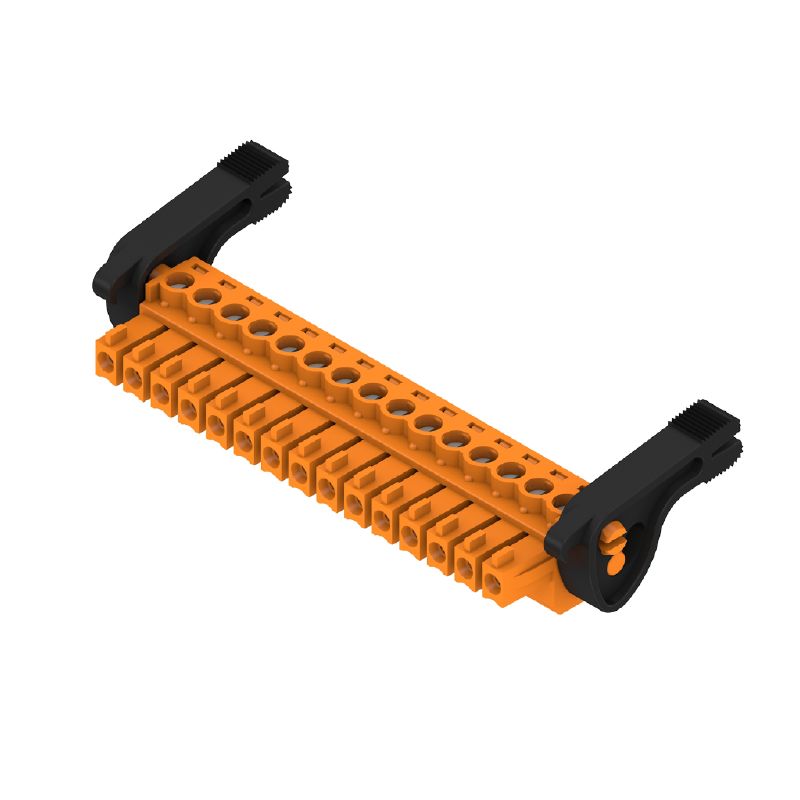

2442430000 WEIDMÜLLER
Hersteller: WEIDMÜLLER
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; 17.5A; PIN: 15
Contact material: copper alloy
Spatial orientation: angled
Body colour: orange
Electrical mounting: screw terminal
Mechanical mounting: on PCBs
Type of connector: pluggable terminal block
Connector: socket
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -50...120°C
Contacts pitch: 3.81mm
Number of pins: 15
Current rating: 17.5A
| Anzahl | Privatkunde |
|---|---|
| 4+ | 33.27 EUR |
| 18+ | 32.65 EUR |
| 36+ | 28.82 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2442430000 WEIDMÜLLER
Description: TERM BLOCK PLUG 15POS 3.81MM, Features: Ejector Latches, Packaging: Box, Color: Orange, Mounting Type: Free Hanging (In-Line), Number of Positions: 15, Pitch: 0.150" (3.81mm), Type: Plug, Female Sockets, Operating Temperature: -50°C ~ 120°C, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Current - IEC: 17.5A, Number of Levels: 1, Wire Gauge or Range - AWG: 16-28 AWG, Wire Gauge or Range - mm²: 0.2-1.5mm², Positions Per Level: 15, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 10 A, Voltage - IEC: 320 V, Voltage - UL: 300 V.
Weitere Produktangebote 2442430000
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
2442430000 | Weidmüller |
Description: TERM BLOCK PLUG 15POS 3.81MM Features: Ejector Latches Packaging: Box Color: Orange Mounting Type: Free Hanging (In-Line) Number of Positions: 15 Pitch: 0.150" (3.81mm) Type: Plug, Female Sockets Operating Temperature: -50°C ~ 120°C Termination Style: Screw - Clamping Yoke (Tension Sleeve) Current - IEC: 17.5A Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 0.2-1.5mm² Positions Per Level: 15 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 10 A Voltage - IEC: 320 V Voltage - UL: 300 V |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 50 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 2442430000 | Weidmuller |
Pluggable Terminal Blocks BCZ 3.81/15/180LR SN OR BX |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| 2442430000 |
|
Hersteller: Weidmüller
Description: TERM BLOCK PLUG 15POS 3.81MM
Features: Ejector Latches
Packaging: Box
Color: Orange
Mounting Type: Free Hanging (In-Line)
Number of Positions: 15
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Operating Temperature: -50°C ~ 120°C
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 17.5A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 0.2-1.5mm²
Positions Per Level: 15
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 10 A
Voltage - IEC: 320 V
Voltage - UL: 300 V
Description: TERM BLOCK PLUG 15POS 3.81MM
Features: Ejector Latches
Packaging: Box
Color: Orange
Mounting Type: Free Hanging (In-Line)
Number of Positions: 15
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Operating Temperature: -50°C ~ 120°C
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 17.5A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 0.2-1.5mm²
Positions Per Level: 15
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 10 A
Voltage - IEC: 320 V
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Mindestbestellmenge: 50 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| 2442430000 |
|
Hersteller: Weidmuller
Pluggable Terminal Blocks BCZ 3.81/15/180LR SN OR BX
Pluggable Terminal Blocks BCZ 3.81/15/180LR SN OR BX
Produkt ist nicht verfügbar
