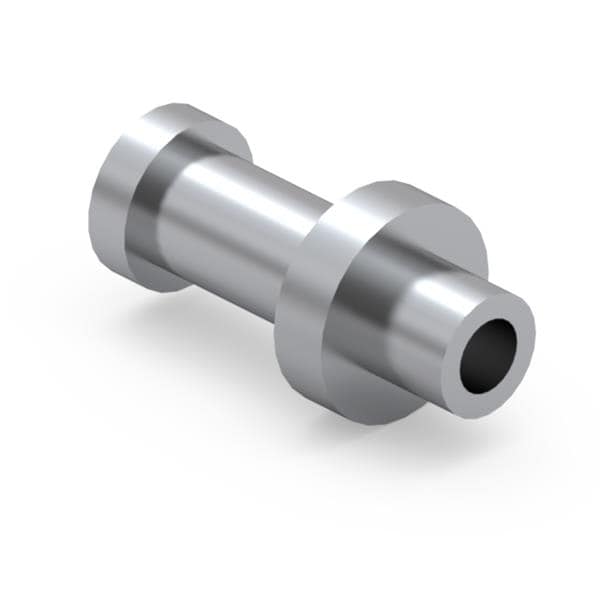

2505-1-00-01-00-00-07-0 Mill-Max Mfg. Corp.

Description: TERM TURRET SINGLE L=4.75MM, Packaging: Bulk, Contact Finish: Tin-Lead, Mounting Type: Through Hole, Insulation: Non-Insulated, Board Thickness: 0.031" (0.79mm), Terminal Type: Single End, Flange Diameter: 0.125" (3.18mm), Length - Overall: 0.249" (6.32mm), Termination: Swage, Length - Above Board: 0.187" (4.75mm), Mounting Hole Diameter: 0.076" (1.93mm), Contact Finish Thickness: 200.0µin (5.08µm), Contact Material: Brass Alloy, Diameter - Turret Head: 0.097" (2.46mm), Number of Turrets: Single, Length - Below Flange: 0.062" (1.57mm), Staking Side OD: 0.071" (1.80mm), Staking Side ID: 0.043" (1.09mm).
