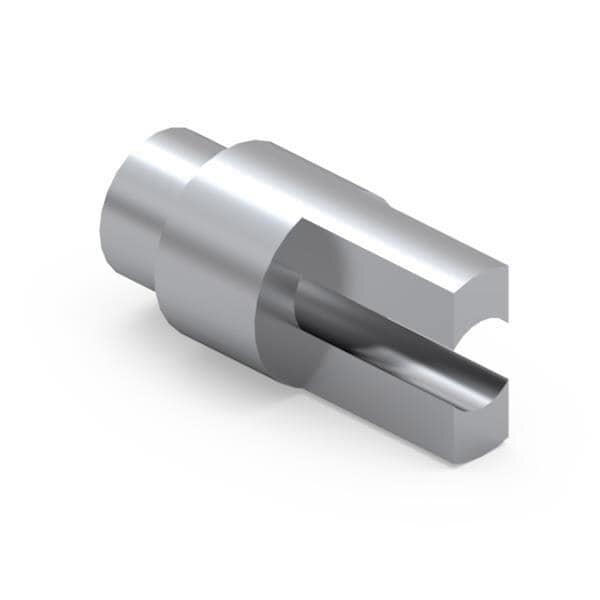

2515-3-01-50-00-00-07-0 Mill-Max Manufacturing Corp.

Description: CONN PC PIN CIRC .125DIA TINLEAD, Length - Above Flange: 0.239" (6.07mm), Length - Below Flange: 0.135" (3.43mm), Pin Size - Above Flange: 0.125" (3.18mm) Dia, Terminal Style: Single End, Slotted, Contact Material: Brass Alloy, Contact Finish Thickness: 300.0µin (7.62µm), Mounting Hole Diameter: 0.094" (2.39mm), Termination: Swage, Length - Overall: 0.374" (9.50mm), Flange Diameter: 0.125" (3.18mm), Terminal Type: PC Pin, Board Thickness: 0.094" (2.39mm), Insulation: Non-Insulated, Mounting Type: Through Hole, Contact Finish: Tin-Lead, Packaging: Bulk.
