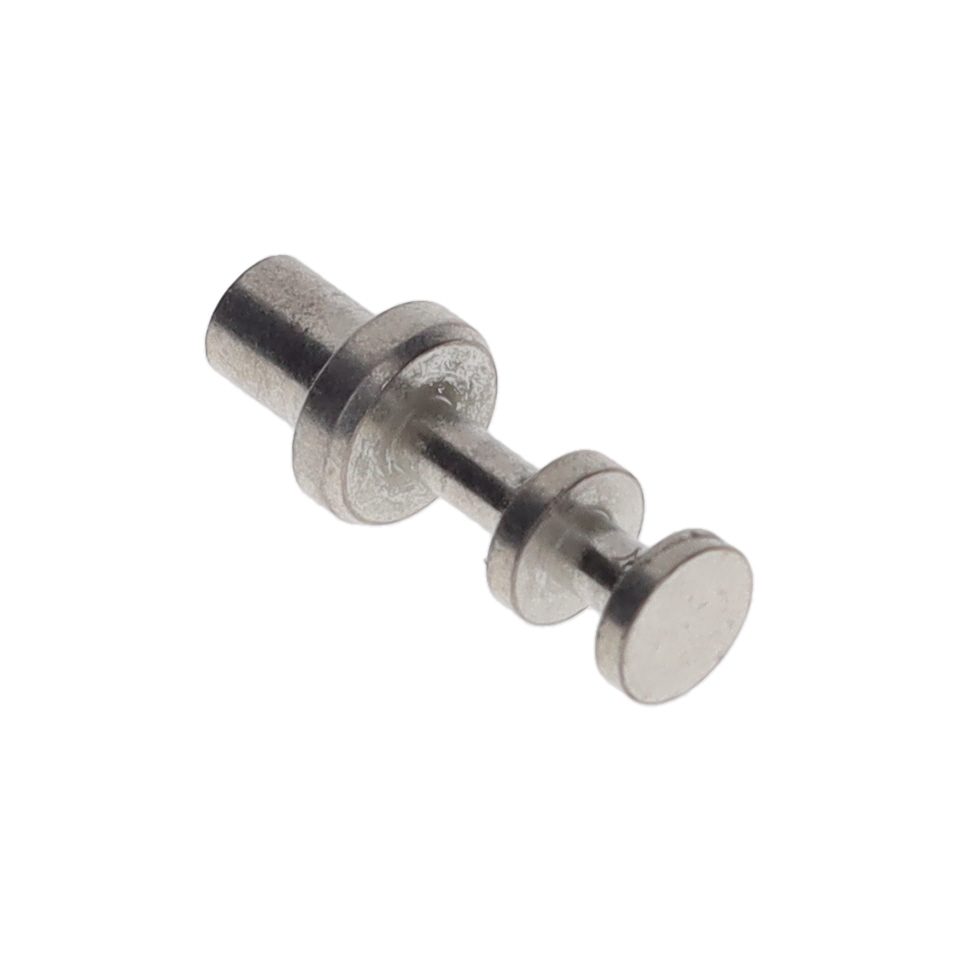

2801-3-00-01-00-00-07-0 Mill-Max

Description: TERM TURRET SINGLE L=9.14MM, Packaging: Bulk, Contact Finish: Tin-Lead, Mounting Type: Through Hole, Insulation: Non-Insulated, Board Thickness: 0.094" (2.39mm), Terminal Type: Single End, Flange Diameter: 0.187" (4.75mm), Length - Overall: 0.501" (12.73mm), Termination: Swage, Length - Above Board: 0.360" (9.14mm), Mounting Hole Diameter: 0.116" (2.95mm), Contact Finish Thickness: 200.0µin (5.08µm), Contact Material: Brass Alloy, Diameter - Turret Head: 0.145" (3.68mm), Number of Turrets: Single, Length - Below Flange: 0.141" (3.58mm), Staking Side OD: 0.112" (2.84mm), Staking Side ID: 0.078" (1.98mm).
