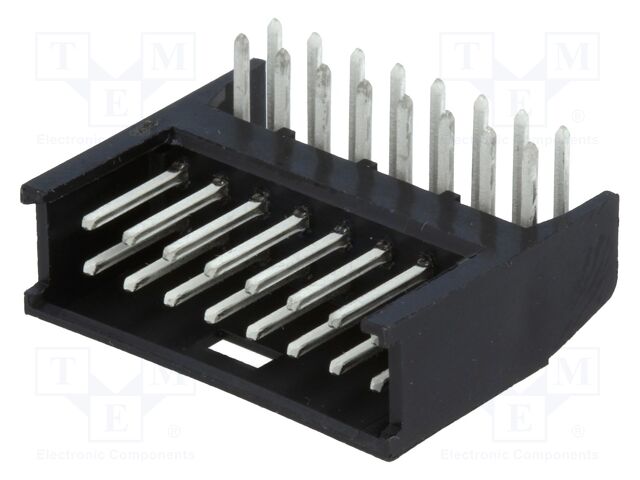

280390-1 TE Connectivity
Hersteller: TE Connectivity
Category: Raster signal connectors 2,54mm
Description: Connector: wire-board; socket; male; PIN: 16; AMPMODU MOD II; THT
Type of connector: wire-board
Connector: socket
Kind of connector: male
Number of pins: 16
Manufacturer series: AMPMODU MOD II
Spatial orientation: angled 90°
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x8
Contact plating: tinned
Produktrezensionen
Produktbewertung abgeben
Technische Details 280390-1 TE Connectivity
Description: CONN HEADER R/A 16POS 2.54MM, Packaging: Bulk, Contact Length - Mating: 0.260" (6.60mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Thermoplastic, Shrouding: Shrouded - 3 Wall, Insulation Height: 0.276" (7.00mm), Contact Length - Post: 0.138" (3.50mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 118.1µin (3.00µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Detent Lock, Contact Type: Male Pin, Operating Temperature: -40°C ~ 80°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 16, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 3A, Voltage Rating: 40V, Connector Type: Header.
Weitere Produktangebote 280390-1 nach Preis ab 1.65 EUR bis 3.1 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
280390-1 | TE Connectivity AMP Connectors |
 Description: CONN HEADER R/A 16POS 2.54MMPackaging: Bulk Contact Length - Mating: 0.260" (6.60mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Thermoplastic Shrouding: Shrouded - 3 Wall Insulation Height: 0.276" (7.00mm) Contact Length - Post: 0.138" (3.50mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 118.1µin (3.00µm) Contact Finish - Mating: Tin Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Brass Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Detent Lock Contact Type: Male Pin Operating Temperature: -40°C ~ 80°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 16 Mounting Type: Through Hole, Right Angle Current Rating (Amps): 3A Voltage Rating: 40V Connector Type: Header |
auf Bestellung 536 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
280390-1 | TE Connectivity |
Headers & Wire Housings 2x08P SHRD HDR R/A TIN |
auf Bestellung 2991 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
280390-1 | TE CONNECTIVITY - AMP |
Description: TE CONNECTIVITY - AMP - 280390-1 - Stiftleiste, Wannenstecker, Wire-to-Board, 2.54 mm, 2 Reihe(n), 16 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Teilweise umhüllt Anzahl der Kontakte: 16Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbinder: PCB-Stiftleiste Produktpalette: AMPMODU MOD II productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (04-Feb-2026) |
auf Bestellung 553 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||
|
|
280390-1 | TE CONNECTIVITY / PARTNER STOCK |
Description: TE CONNECTIVITY / PARTNER STOCK - 280390-1 - PIN HEADERS tariffCode: 85366990 productTraceability: No rohsCompliant: YES euEccn: NLR isCanonical: Y hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 SVHC: No SVHC (04-Feb-2026) |
auf Bestellung 2310 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 60 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 280390-1 |
|
Hersteller: TE Connectivity AMP Connectors
Description: CONN HEADER R/A 16POS 2.54MM
Packaging: Bulk
Contact Length - Mating: 0.260" (6.60mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Thermoplastic
Shrouding: Shrouded - 3 Wall
Insulation Height: 0.276" (7.00mm)
Contact Length - Post: 0.138" (3.50mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 118.1µin (3.00µm)
Contact Finish - Mating: Tin
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Detent Lock
Contact Type: Male Pin
Operating Temperature: -40°C ~ 80°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 16
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 3A
Voltage Rating: 40V
Connector Type: Header
Description: CONN HEADER R/A 16POS 2.54MM
Packaging: Bulk
Contact Length - Mating: 0.260" (6.60mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Thermoplastic
Shrouding: Shrouded - 3 Wall
Insulation Height: 0.276" (7.00mm)
Contact Length - Post: 0.138" (3.50mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 118.1µin (3.00µm)
Contact Finish - Mating: Tin
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Detent Lock
Contact Type: Male Pin
Operating Temperature: -40°C ~ 80°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 16
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 3A
Voltage Rating: 40V
Connector Type: Header
auf Bestellung 536 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 7+ | 2.83 EUR |
| 10+ | 2.4 EUR |
| 100+ | 2.04 EUR |
| 500+ | 1.82 EUR |
| 280390-1 |
|
Hersteller: TE Connectivity
Headers & Wire Housings 2x08P SHRD HDR R/A TIN
Headers & Wire Housings 2x08P SHRD HDR R/A TIN
auf Bestellung 2991 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 3.1 EUR |
| 10+ | 2.66 EUR |
| 25+ | 2.62 EUR |
| 100+ | 2.24 EUR |
| 500+ | 2.02 EUR |
| 1000+ | 1.94 EUR |
| 5000+ | 1.65 EUR |
| 280390-1 |
|
Hersteller: TE CONNECTIVITY - AMP
Description: TE CONNECTIVITY - AMP - 280390-1 - Stiftleiste, Wannenstecker, Wire-to-Board, 2.54 mm, 2 Reihe(n), 16 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Teilweise umhüllt
Anzahl der Kontakte: 16Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: AMPMODU MOD II
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (04-Feb-2026)
Description: TE CONNECTIVITY - AMP - 280390-1 - Stiftleiste, Wannenstecker, Wire-to-Board, 2.54 mm, 2 Reihe(n), 16 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Teilweise umhüllt
Anzahl der Kontakte: 16Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: AMPMODU MOD II
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (04-Feb-2026)
auf Bestellung 553 Stücke:
Lieferzeit 14-21 Tag (e)
| 280390-1 |
|
Hersteller: TE CONNECTIVITY / PARTNER STOCK
Description: TE CONNECTIVITY / PARTNER STOCK - 280390-1 - PIN HEADERS
tariffCode: 85366990
productTraceability: No
rohsCompliant: YES
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
SVHC: No SVHC (04-Feb-2026)
Description: TE CONNECTIVITY / PARTNER STOCK - 280390-1 - PIN HEADERS
tariffCode: 85366990
productTraceability: No
rohsCompliant: YES
euEccn: NLR
isCanonical: Y
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
SVHC: No SVHC (04-Feb-2026)
auf Bestellung 2310 Stücke:
Lieferzeit 14-21 Tag (e)
