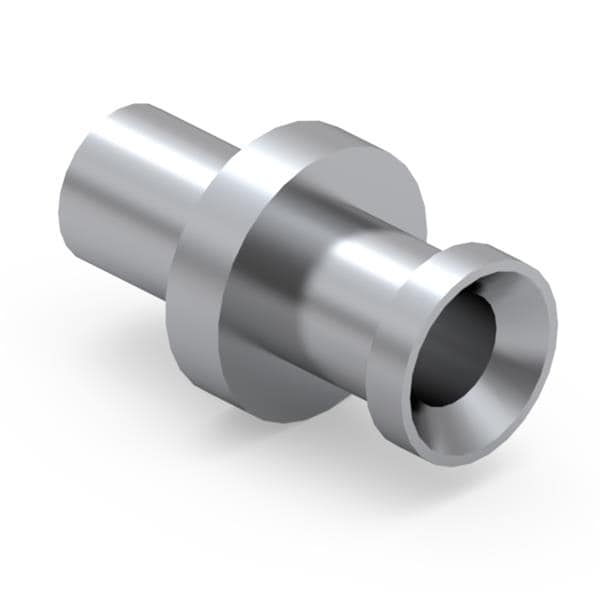

2815-3-00-01-00-00-07-0 Mill-Max Manufacturing Corp.

Description: TERM TURRET SINGLE L=4.75MM, Part Status: Active, Staking Side ID: 0.078" (1.98mm), Staking Side OD: 0.109" (2.77mm), Length - Below Flange: 0.135" (3.43mm), Number of Turrets: Single, Diameter - Turret Head: 0.141" (3.58mm), Contact Material: Brass Alloy, Contact Finish Thickness: 200.0µin (5.08µm), Mounting Hole Diameter: 0.113" (2.87mm), Length - Above Board: 0.187" (4.75mm), Termination: Swage, Length - Overall: 0.322" (8.18mm), Flange Diameter: 0.187" (4.75mm), Terminal Type: Single End, Board Thickness: 0.094" (2.39mm), Insulation: Non-Insulated, Mounting Type: Through Hole, Contact Finish: Tin-Lead, Packaging: Bulk.
