Produkte > AMPHENOL > 2CMA193468R1000

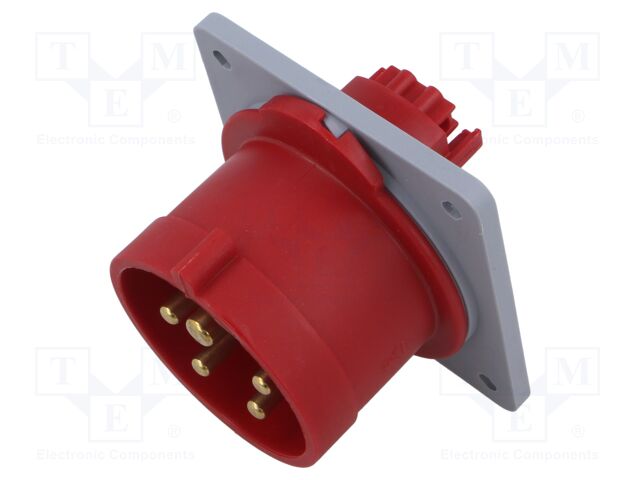

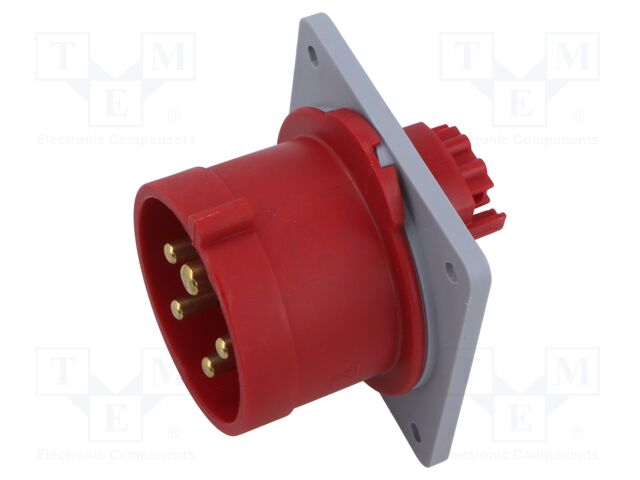

2CMA193468R1000

2CMA193468R1000 AMPHENOL

pVersion=0046&contRep=ZT&docId=005056AB281E1FD082AB1194BFBC60DC&compId=2CMA193468R1000_datasheet.pdf?ci_sign=264bcd22d564af538a6d239168226d30efbb3530 Hersteller: AMPHENOL
Category: Industrial IEC 60309 connectors
Description: Connector: AC supply 3-phase; socket; male; 16A; 415VAC; 415V; IP&S
Rated voltage: 415V; 415V AC
IP rating: IP44
Manufacturer series: IP&S
Kind of connector: male
Mechanical mounting: flange (4 holes); for panel mounting
Standard: IEC 60309
Connector: socket
Electrical mounting: screw terminal
Operating temperature: -25...40°C
Wire cross-section: 1...2.5mm2; 1.5...4mm2
Number of pins: 5
Current rating: 16A
Connector pinout layout: 3P+N+PE
Polarisation: 6H
Type of connector: AC supply 3-phase
Spatial orientation: straight
Contact material: brass
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+26.41 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 2CMA193468R1000 AMPHENOL

Category: Industrial IEC 60309 connectors, Description: Connector: AC supply 3-phase; socket; male; 16A; 415VAC; 415V; IP&S, Rated voltage: 415V; 415V AC, IP rating: IP44, Manufacturer series: IP&S, Kind of connector: male, Mechanical mounting: flange (4 holes); for panel mounting, Standard: IEC 60309, Connector: socket, Electrical mounting: screw terminal, Operating temperature: -25...40°C, Wire cross-section: 1...2.5mm2; 1.5...4mm2, Number of pins: 5, Current rating: 16A, Connector pinout layout: 3P+N+PE, Polarisation: 6H, Type of connector: AC supply 3-phase, Spatial orientation: straight, Contact material: brass, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 2CMA193468R1000 nach Preis ab 19.8 EUR bis 30.18 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
2CMA193468R1000 2CMA193468R1000 Hersteller : AMPHENOL pVersion=0046&contRep=ZT&docId=005056AB281E1FD082AB1194BFBC60DC&compId=2CMA193468R1000_datasheet.pdf?ci_sign=264bcd22d564af538a6d239168226d30efbb3530 Category: Industrial IEC 60309 connectors
Description: Connector: AC supply 3-phase; socket; male; 16A; 415VAC; 415V; IP&S
Rated voltage: 415V; 415V AC
IP rating: IP44
Manufacturer series: IP&S
Kind of connector: male
Mechanical mounting: flange (4 holes); for panel mounting
Standard: IEC 60309
Connector: socket
Electrical mounting: screw terminal
Operating temperature: -25...40°C
Wire cross-section: 1...2.5mm2; 1.5...4mm2
Number of pins: 5
Current rating: 16A
Connector pinout layout: 3P+N+PE
Polarisation: 6H
Type of connector: AC supply 3-phase
Spatial orientation: straight
Contact material: brass
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+26.41 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
2CMA193468R1000 2CMA193468R1000 Hersteller : Amphenol Sine Systems Corp 2CMA193468R1000.pdf Description: 3P+N+E PANEL MOUNTED INLET. REPL
Packaging: Box
Connector Type: Receptacle, Male Pins
Voltage Rating: 200/415V
Current Rating (Amps): 16A
Mounting Type: Panel Mount, Flange
Number of Positions: 5
Termination: Screw
Approval Agency: IEC
Ingress Protection: IP44
Connector Style: Pin and Sleeve (4P5W)
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+28.88 EUR
10+22.24 EUR
Im Einkaufswagen  Stück im Wert von  UAH
2CMA193468R1000 2CMA193468R1000 Hersteller : Amphenol Tuchel 2CMA193468R1000.pdf Heavy Duty Power Connectors 3P+N+E Panel Mounted Inlet. Replaces Part# 416BU6
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+30.18 EUR
10+26.31 EUR
25+24.94 EUR
50+24.59 EUR
100+21.68 EUR
250+20.24 EUR
500+19.8 EUR
Im Einkaufswagen  Stück im Wert von  UAH
