Produkte > Steckverbinder, Reihenklemmen > Steckverbindungen Schaltsteckverbindungen DIN > 2EDGKDA-5.08-03P-14-00AH

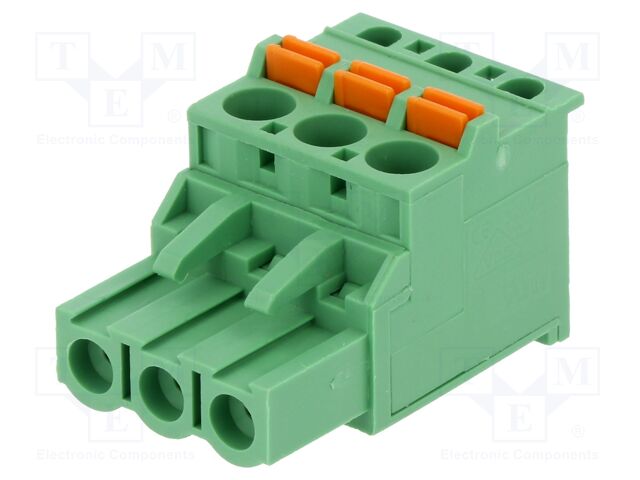

2EDGKDA-5.08-03P-14-00AH
Produktcode: 139663
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Steckverbinder, Reihenklemmen > Steckverbindungen Schaltsteckverbindungen DIN
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote 2EDGKDA-5.08-03P-14-00AH nach Preis ab 1.94 EUR bis 3.4 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
2EDGKDA-5.08-03P-14-00AH | DEGSON ELECTRONICS |
 Category: Pluggable terminal blocksDescription: Connector: pluggable terminal block; plug; female; 2EDGKDA; 20A Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 20A Rated voltage: 0.32kV Spatial orientation: angled 90° Mechanical mounting: for cable Electrical mounting: spring clamp Contact material: phosphor bronze Colour: green Flammability rating: UL94V-0 Body material: polyamide 66 Wire size: 26AWG...12AWG Wire cross-section: 2.5mm2 Contacts pitch: 5.08mm Number of ways: 3 Locking system: latch Conform to the norm: CE; UL; VDE Number of terminals: 3 Operating temperature: -40...105°C Manufacturer series: 2EDGKDA Connector variant: with push button Connector pinout layout: 1x3 |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
| 2EDGKDA-5.08-03P-14-00AH | Degson Electronics | 2EDGKDA-5.08-03P-14-00AH |
auf Bestellung 225 Stücke: Lieferzeit 14-21 Tag (e) |
|
| 2EDGKDA-5.08-03P-14-00AH |
|
Hersteller: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 2EDGKDA; 20A
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 20A
Rated voltage: 0.32kV
Spatial orientation: angled 90°
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 26AWG...12AWG
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 3
Locking system: latch
Conform to the norm: CE; UL; VDE
Number of terminals: 3
Operating temperature: -40...105°C
Manufacturer series: 2EDGKDA
Connector variant: with push button
Connector pinout layout: 1x3
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 2EDGKDA; 20A
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 20A
Rated voltage: 0.32kV
Spatial orientation: angled 90°
Mechanical mounting: for cable
Electrical mounting: spring clamp
Contact material: phosphor bronze
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 26AWG...12AWG
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 3
Locking system: latch
Conform to the norm: CE; UL; VDE
Number of terminals: 3
Operating temperature: -40...105°C
Manufacturer series: 2EDGKDA
Connector variant: with push button
Connector pinout layout: 1x3
auf Bestellung 25 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 25+ | 3.4 EUR |
| 2EDGKDA-5.08-03P-14-00AH |
Hersteller: Degson Electronics
2EDGKDA-5.08-03P-14-00AH
2EDGKDA-5.08-03P-14-00AH
auf Bestellung 225 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 82+ | 2.17 EUR |
| 200+ | 1.94 EUR |
