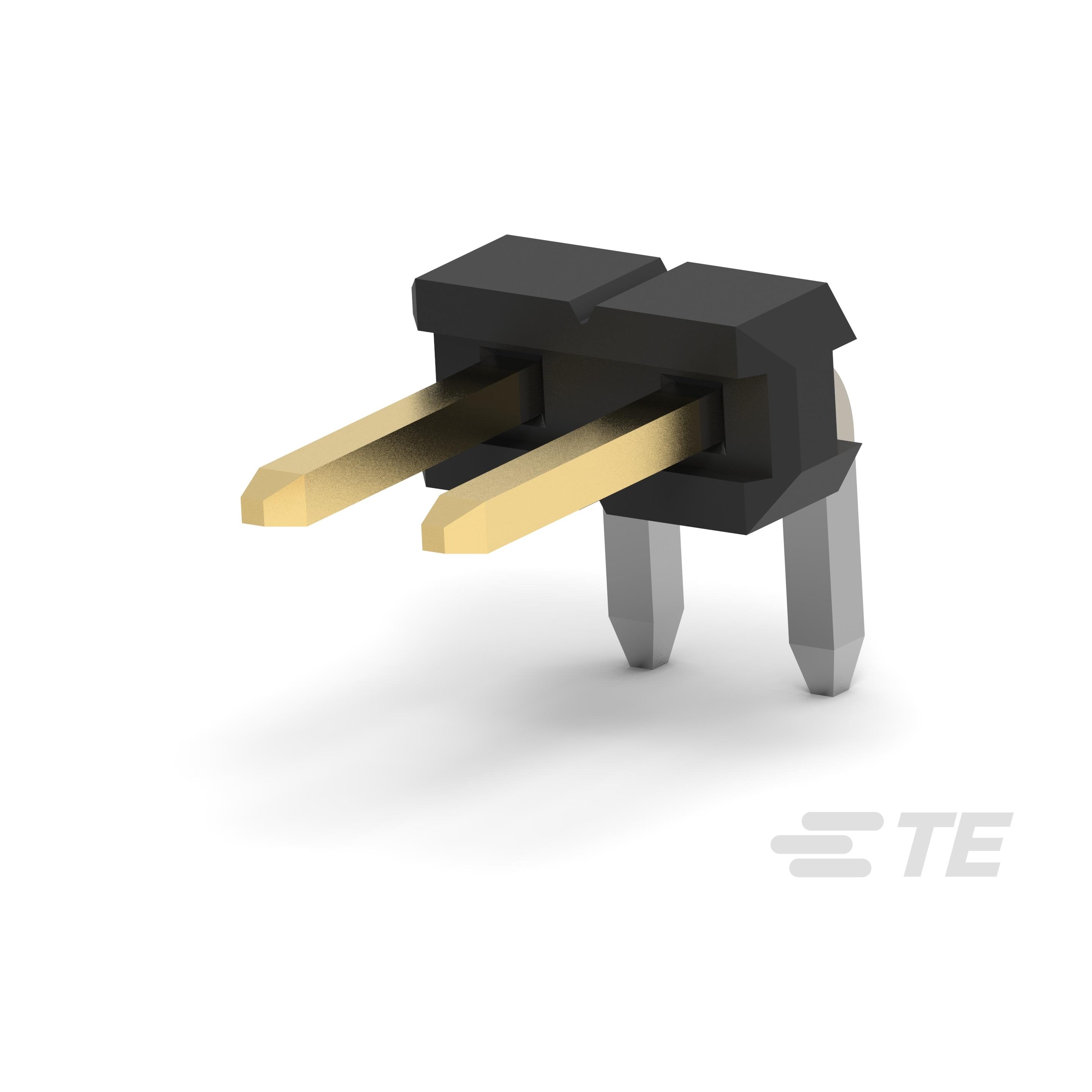

2MM-HB-S02-HT-02-H-TB TE Connectivity AMP Connectors
Hersteller: TE Connectivity AMP ConnectorsDescription: 2P, AMPMODU 2 MM, BREAKAWAY HEAD
Packaging: Tube
Connector Type: Header, Breakaway
Voltage Rating: 250VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.110" (2.80mm)
Insulation Height: 0.079" (2.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Contact Length - Mating: 0.157" (4.00mm)
auf Bestellung 18880 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 17+ | 1.07 EUR |
| 20+ | 0.92 EUR |
| 135+ | 0.76 EUR |
| 540+ | 0.69 EUR |
| 1080+ | 0.66 EUR |
| 5130+ | 0.59 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2MM-HB-S02-HT-02-H-TB TE Connectivity AMP Connectors
Description: 2P, AMPMODU 2 MM, BREAKAWAY HEAD, Packaging: Tube, Connector Type: Header, Breakaway, Voltage Rating: 250VAC/DC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 2, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Rectangular, Contact Length - Post: 0.110" (2.80mm), Insulation Height: 0.079" (2.00mm), Shrouding: Unshrouded, Insulation Material: Thermoplastic, Contact Length - Mating: 0.157" (4.00mm).
Weitere Produktangebote 2MM-HB-S02-HT-02-H-TB nach Preis ab 0.62 EUR bis 1.29 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2MM-HB-S02-HT-02-H-TB | Hersteller : TE Connectivity |
Headers & Wire Housings 2P,2MM,BRK HDR,SRRT,2.8,0.76AU,TB |
auf Bestellung 18514 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
2MM-HB-S02-HT-02-H-TB | Hersteller : TE CONNECTIVITY |
Description: TE CONNECTIVITY - 2MM-HB-S02-HT-02-H-TB - Stiftleiste, Board-to-Board, 2 mm, 1 Reihe(n), 2 Kontakt(e), Durchsteckmontage, abgewinkelt tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 2Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board Steckverbindertyp: Stiftleiste Produktpalette: 2MM-HB Series productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 1Reihe(n) Rastermaß: 2mm SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 18730 Stücke: Lieferzeit 14-21 Tag (e) |
