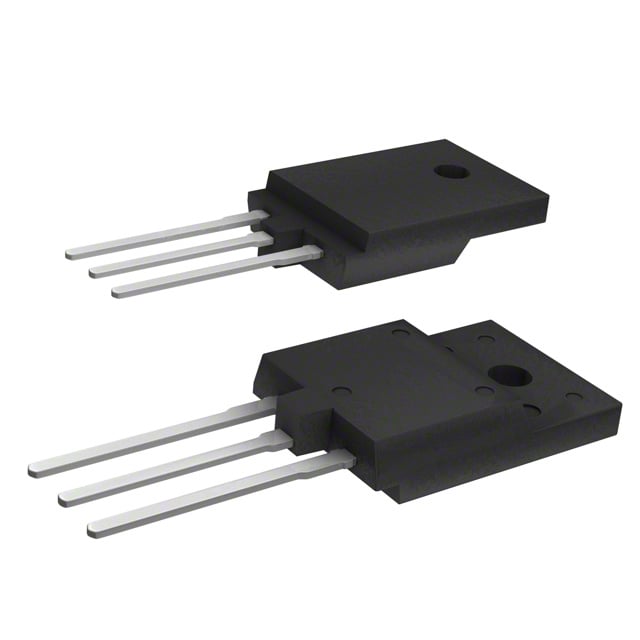

2SK3747-1E

Hersteller: onsemi
Description: MOSFET N-CH 1500V 2A TO3PF-3
Input Capacitance (Ciss) (Max) @ Vds: 380 pF @ 30 V
Gate Charge (Qg) (Max) @ Vgs: 37.5 nC @ 10 V
Drain to Source Voltage (Vdss): 1500 V
Vgs (Max): ±35V
Drive Voltage (Max Rds On, Min Rds On): 10V
Part Status: Obsolete
Supplier Device Package: TO-3PF-3
Power Dissipation (Max): 3W (Ta), 50W (Tc)
Rds On (Max) @ Id, Vgs: 13Ohm @ 1A, 10V
Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: 150°C (TJ)
Mounting Type: Through Hole
Package / Case: SC-94
Packaging: Tube

Hersteller: onsemi
MOSFETs N-Channel Power MOSFET, 1500V, 2A, 13ohm
