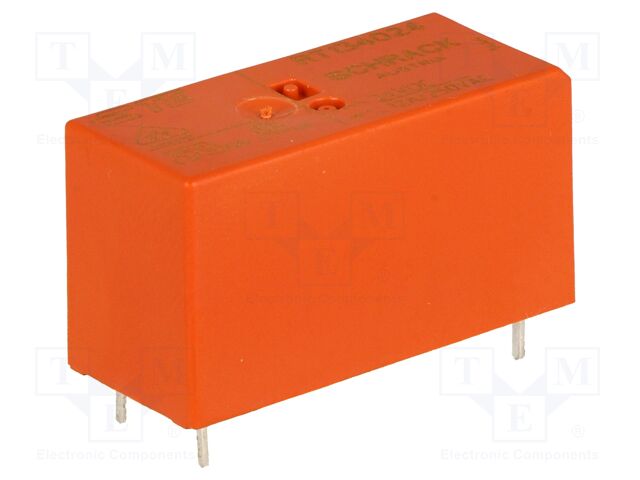

3-1393239-0 TE Connectivity
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 300V DC; max. 400V AC
Relay variant: miniature
Mounting: THT
Coil resistance: 1.44kΩ
Coil voltage min.: 16.8V DC
Body dimensions: 29x15.7x12.7mm
Coil power consumption: 400mW
IP rating: IP40
Mechanical durability: 30000000 cycles
Operating temperature: -40...70°C
Relay series: RT1
Switching capacity: 3kVA
Contact material: AgNi
Terminal pitch: 3.5mm
Height: 15.7mm
Number of pins: 4
Max surge current: 30A
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Switched voltage: max. 300V DC; max. 400V AC
Relay variant: miniature
Mounting: THT
Coil resistance: 1.44kΩ
Coil voltage min.: 16.8V DC
Body dimensions: 29x15.7x12.7mm
Coil power consumption: 400mW
IP rating: IP40
Mechanical durability: 30000000 cycles
Operating temperature: -40...70°C
Relay series: RT1
Switching capacity: 3kVA
Contact material: AgNi
Terminal pitch: 3.5mm
Height: 15.7mm
Number of pins: 4
Max surge current: 30A
auf Bestellung 972 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
21+ | 3.5 EUR |
24+ | 3.1 EUR |
30+ | 2.4 EUR |
32+ | 2.27 EUR |
500+ | 2.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3-1393239-0 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 12A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Switched voltage: max. 300V DC; max. 400V AC, Relay variant: miniature, Mounting: THT, Coil resistance: 1.44kΩ, Coil voltage min.: 16.8V DC, Body dimensions: 29x15.7x12.7mm, Coil power consumption: 400mW, IP rating: IP40, Mechanical durability: 30000000 cycles, Operating temperature: -40...70°C, Relay series: RT1, Switching capacity: 3kVA, Contact material: AgNi, Terminal pitch: 3.5mm, Height: 15.7mm, Number of pins: 4, Max surge current: 30A, Anzahl je Verpackung: 1 Stücke.
