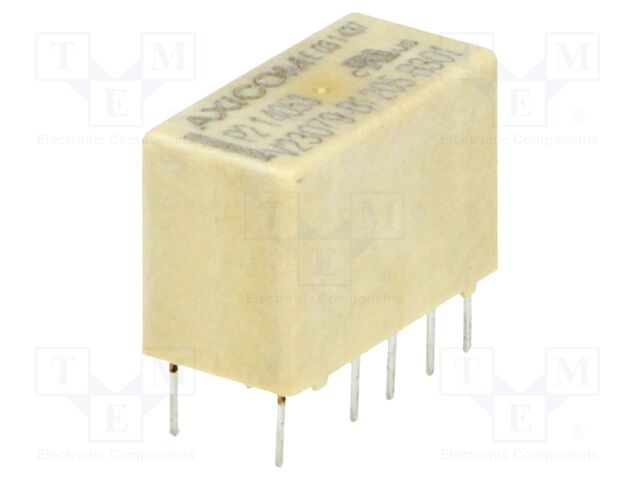

3-1393788-7 TE Connectivity
Hersteller: TE ConnectivityCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; P2
Type of relay: electromagnetic
Relay variant: bistable; miniature
Contacts configuration: DPDT
Manufacturer series: P2
Mounting: THT
Design: two coils
Operating temperature: -40...85°C
Terminal pitch: 2.54mm
Body dimensions: 14.5x7.2x9.8mm
Coil power consumption: 140mW
AC contacts rating @R: 0.5A / 125V AC
Contact current max.: 2A
DC contacts rating @R: 2A / 30V DC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 52.3V DC
Switched voltage: max. 220V DC; max. 250V AC
Coil resistance: 4114Ω
auf Bestellung 60 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 28+ | 2.59 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3-1393788-7 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; P2, Type of relay: electromagnetic, Relay variant: bistable; miniature, Contacts configuration: DPDT, Manufacturer series: P2, Mounting: THT, Design: two coils, Operating temperature: -40...85°C, Terminal pitch: 2.54mm, Body dimensions: 14.5x7.2x9.8mm, Coil power consumption: 140mW, AC contacts rating @R: 0.5A / 125V AC, Contact current max.: 2A, DC contacts rating @R: 2A / 30V DC, Coil voltage min.: 18V DC, Rated coil voltage: 24V DC, Coil voltage max.: 52.3V DC, Switched voltage: max. 220V DC; max. 250V AC, Coil resistance: 4114Ω.
Weitere Produktangebote 3-1393788-7 nach Preis ab 2.81 EUR bis 3.18 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3-1393788-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT(14.5x7.2x9.8)mm THT Medical |
auf Bestellung 1638 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
3-1393788-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT(14.5x7.2x9.8)mm THT Automotive Medical |
auf Bestellung 3631 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||
| 3-1393788-7 | Hersteller : TE CONNECTIVITY / PARTNER STOCK |
Description: TE CONNECTIVITY / PARTNER STOCK - 3-1393788-7 - SIGNAL RELAYS tariffCode: 85364900 productTraceability: No rohsCompliant: YES euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 SVHC: No SVHC (27-Jun-2024) |
auf Bestellung 250 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||
 |
3-1393788-7 | Hersteller : TE Connectivity Potter & Brumfield Relays |
Description: V23079B1205B301 Packaging: Tube |
Produkt ist nicht verfügbar |
