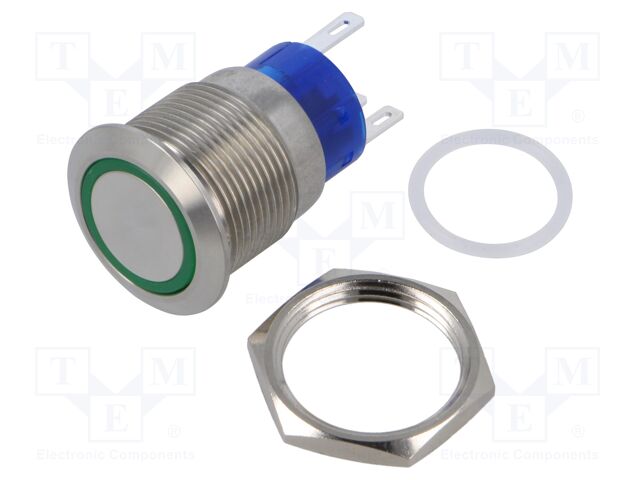

3-2213767-3 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-ON
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 12V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 2.5N
Mechanical durability: 500000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper alloy
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 71.5 EUR |
| 2+ | 35.75 EUR |
| 25+ | 21.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3-2213767-3 TE Connectivity
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPST, AC contacts rating @R: 3A / 250V AC, IP rating: IP67, Switching method: OFF-ON, Illumination: LED; ring, Backlight colour: green, Illumination voltage: 12V DC, Leads: connectors, Leads dimensions: 2.8x0.5mm, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 2.5N, Mechanical durability: 500000 cycles, Button shape: round, Mounting hole diameter: Ø19.2mm, Body colour: silver, Manufacturer series: AV, Contact material: copper alloy, Contact plating: silver plated, Actuator colour: silver, Min. insulation resistance: 1GΩ, Mounting: on panel, Key stroke: 3.2mm, Flammability rating: UL94V-0, Operating temperature: -20...55°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3-2213767-3 nach Preis ab 20.77 EUR bis 71.5 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
3-2213767-3 | Hersteller : TE Connectivity |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST; 3A/250VAC; IP67; OFF-ON Type of switch: vandal resistant Number of positions: 2 Stable positions number: 2 Contacts configuration: SPST AC contacts rating @R: 3A / 250V AC IP rating: IP67 Switching method: OFF-ON Illumination: LED; ring Backlight colour: green Illumination voltage: 12V DC Leads: connectors Leads dimensions: 2.8x0.5mm Electrical life: 50000 cycles Max. contact resistance:: 50mΩ Operating Force: 2.5N Mechanical durability: 500000 cycles Button shape: round Mounting hole diameter: Ø19.2mm Body colour: silver Manufacturer series: AV Contact material: copper alloy Contact plating: silver plated Actuator colour: silver Min. insulation resistance: 1GΩ Mounting: on panel Key stroke: 3.2mm Flammability rating: UL94V-0 Operating temperature: -20...55°C |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
3-2213767-3 | Hersteller : TE CONNECTIVITY / PARTNER STOCK |
 Description: TE CONNECTIVITY / PARTNER STOCK - 3-2213767-3 - STANDARDtariffCode: 85365080 productTraceability: No rohsCompliant: Y-EX euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 SVHC: Lead (27-Jun-2024) |
auf Bestellung 8 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||
| 3-2213767-3 | Hersteller : TE Connectivity | Switch Push Button OFF ON SPDT Flush Round Button 3A 250VAC 36VDC Lock Panel Mount Solder Lug |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
| 3-2213767-3 | Hersteller : TE Connectivity | Switch Push Button OFF ON SPDT Flush Round Button 3A 250VAC 36VDC Lock Panel Mount Solder Lug |
auf Bestellung 50 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
| 3-2213767-3 | Hersteller : TE Connectivity | Switch Push Button OFF ON SPDT Flush Round Button 3A 250VAC 36VDC Lock Panel Mount Solder Lug |
auf Bestellung 100 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
| 3-2213767-3 | Hersteller : TE Connectivity |
Switch Push Button OFF ON SPDT Flush Round Button 3A 250VAC 36VDC Lock Panel Mount Solder Lug |
Produkt ist nicht verfügbar |
||||||||||||
 |
3-2213767-3 | Hersteller : TE Connectivity / Alcoswitch |
Pushbutton Switches AV19 SPL 3A MOVE RING LED GREEN 12V |
Produkt ist nicht verfügbar |
