Produkte > EDAC > 305-024-500-202
305-024-500-202

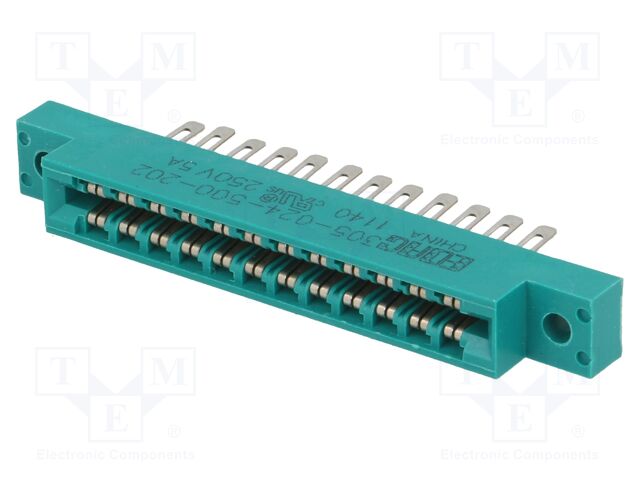

305-024-500-202 EDAC


EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Hersteller: EDAC
Category: IDC connectors
Description: Card edge; PIN: 24; soldering; for panel mounting,for cable; 305
Type of connector: card edge
Connector series: 305
Number of pins: 24
Contact plating: gold-plated
Mechanical mounting: for cable; for panel mounting
Contacts pitch: 3.96mm
Electrical mounting: soldering
Anzahl je Verpackung: 1 Stücke
auf Bestellung 37 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
10+7.46 EUR
16+ 4.58 EUR
17+ 4.33 EUR
Mindestbestellmenge: 10
Produktrezensionen
Produktbewertung abgeben

Technische Details 305-024-500-202 EDAC

Description: CONN EDGE DUAL FMALE 24POS 0.156, Packaging: Bulk, Gender: Female, Contact Finish: Gold, Color: Green, Mounting Type: Panel Mount, Number of Positions: 24, Pitch: 0.156" (3.96mm), Operating Temperature: -40°C ~ 105°C, Read Out: Dual, Contact Type: Semi Bellows, Card Type: Non Specified - Dual Edge, Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm), Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia, Termination: Solder Eyelet(s), Contact Finish Thickness: 10.0µin (0.25µm), Contact Material: Copper Alloy, Number of Positions/Bay/Row: 12, Part Status: Active, Number of Rows: 2.

Weitere Produktangebote 305-024-500-202 nach Preis ab 4.33 EUR bis 21.03 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
305-024-500-202 305-024-500-202 Hersteller : EDAC EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Category: IDC connectors
Description: Card edge; PIN: 24; soldering; for panel mounting,for cable; 305
Type of connector: card edge
Connector series: 305
Number of pins: 24
Contact plating: gold-plated
Mechanical mounting: for cable; for panel mounting
Contacts pitch: 3.96mm
Electrical mounting: soldering
auf Bestellung 37 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
10+7.46 EUR
16+ 4.58 EUR
17+ 4.33 EUR
Mindestbestellmenge: 10
305-024-500-202 305-024-500-202 Hersteller : Edac 208130739351462344_3052031520355.pdf Conn Card Edge SKT 24 POS 3.96mm Solder Lug ST Panel Mount
auf Bestellung 21 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
21+12.26 EUR
Mindestbestellmenge: 21
305-024-500-202 305-024-500-202 Hersteller : EDAC EDAC_305_315_355_Series_Card_Edge_Connectors_Engli-2399221.pdf Standard Card Edge Connectors 24P SOLDER EYELETS 3.56mm ROW SPACE
auf Bestellung 19 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
3+18.88 EUR
10+ 18.8 EUR
25+ 17.99 EUR
100+ 17.19 EUR
250+ 12.51 EUR
500+ 12.04 EUR
1000+ 11.96 EUR
Mindestbestellmenge: 3
305-024-500-202 305-024-500-202 Hersteller : EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 24POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Panel Mount
Number of Positions: 24
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 2
auf Bestellung 212 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
2+21.03 EUR
25+ 17.83 EUR
100+ 16.92 EUR
Mindestbestellmenge: 2
