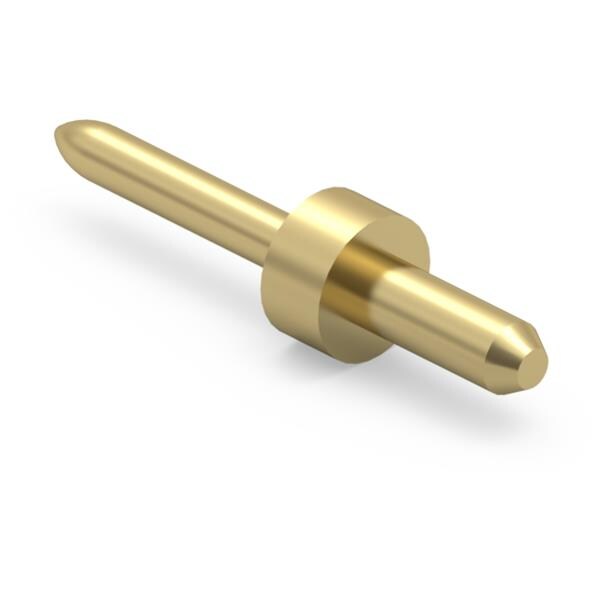

3136-2-00-34-00-00-08-0 Mill-Max Manufacturing Corp.

Description: CONN PC PIN CIRC 0.040DIA GOLD, Pin Size - Below Flange: 0.030" (0.76mm) Dia, Pin Size - Above Flange: 0.040" (1.02mm) Dia, Terminal Style: Double End, Contact Material: Brass Alloy, Contact Finish Thickness: 50.0µin (1.27µm), Mounting Hole Diameter: 0.043" (1.09mm), Termination: Solder, Length - Overall: 0.330" (8.38mm), Flange Diameter: 0.078" (1.98mm), Terminal Type: PC Pin, Board Thickness: 0.094" (2.39mm), Insulation: Non-Insulated, Mounting Type: Through Hole, Contact Finish: Gold, Packaging: Bulk, Length - Above Flange: 0.110" (2.79mm), Length - Below Flange: 0.180" (4.57mm).
