3137-2-00-01-00-00-08-0 Mill-Max
| Anzahl | Privatkunde |
|---|---|
| 3+ | 1.24 EUR |
| 10+ | 0.9 EUR |
| 100+ | 0.8 EUR |
| 500+ | 0.75 EUR |
| 1000+ | 0.7 EUR |
| 2000+ | 0.64 EUR |
Produktrezensionen
Produktbewertung abgeben

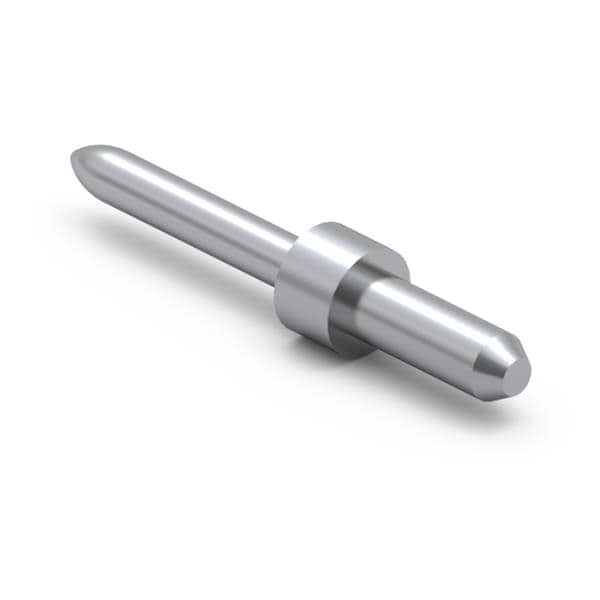

Technische Details 3137-2-00-01-00-00-08-0 Mill-Max
Description: CONN PC PIN CIRC .030DIA TINLEAD, Length - Above Flange: 0.110" (2.79mm), Length - Below Flange: 0.180" (4.57mm), Pin Size - Below Flange: 0.030" (0.76mm) Dia, Pin Size - Above Flange: 0.040" (1.02mm) Dia, Terminal Style: Double End, Contact Material: Brass Alloy, Contact Finish Thickness: 200.0µin (5.08µm), Mounting Hole Diameter: 0.043" (1.09mm), Termination: Solder, Length - Overall: 0.330" (8.38mm), Flange Diameter: 0.062" (1.57mm), Terminal Type: PC Pin, Board Thickness: 0.094" (2.39mm), Insulation: Non-Insulated, Mounting Type: Through Hole, Contact Finish: Tin-Lead, Packaging: Bulk.
Weitere Produktangebote 3137-2-00-01-00-00-08-0 nach Preis ab 0.79 EUR bis 1.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3137-2-00-01-00-00-08-0 | Mill-Max Manufacturing Corp. |
 Description: CONN PC PIN CIRC .030DIA TINLEADLength - Above Flange: 0.110" (2.79mm) Length - Below Flange: 0.180" (4.57mm) Pin Size - Below Flange: 0.030" (0.76mm) Dia Pin Size - Above Flange: 0.040" (1.02mm) Dia Terminal Style: Double End Contact Material: Brass Alloy Contact Finish Thickness: 200.0µin (5.08µm) Mounting Hole Diameter: 0.043" (1.09mm) Termination: Solder Length - Overall: 0.330" (8.38mm) Flange Diameter: 0.062" (1.57mm) Terminal Type: PC Pin Board Thickness: 0.094" (2.39mm) Insulation: Non-Insulated Mounting Type: Through Hole Contact Finish: Tin-Lead Packaging: Bulk |
auf Bestellung 997 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 3137-2-00-01-00-00-08-0 |
|
Hersteller: Mill-Max Manufacturing Corp.
Description: CONN PC PIN CIRC .030DIA TINLEAD
Length - Above Flange: 0.110" (2.79mm)
Length - Below Flange: 0.180" (4.57mm)
Pin Size - Below Flange: 0.030" (0.76mm) Dia
Pin Size - Above Flange: 0.040" (1.02mm) Dia
Terminal Style: Double End
Contact Material: Brass Alloy
Contact Finish Thickness: 200.0µin (5.08µm)
Mounting Hole Diameter: 0.043" (1.09mm)
Termination: Solder
Length - Overall: 0.330" (8.38mm)
Flange Diameter: 0.062" (1.57mm)
Terminal Type: PC Pin
Board Thickness: 0.094" (2.39mm)
Insulation: Non-Insulated
Mounting Type: Through Hole
Contact Finish: Tin-Lead
Packaging: Bulk
Description: CONN PC PIN CIRC .030DIA TINLEAD
Length - Above Flange: 0.110" (2.79mm)
Length - Below Flange: 0.180" (4.57mm)
Pin Size - Below Flange: 0.030" (0.76mm) Dia
Pin Size - Above Flange: 0.040" (1.02mm) Dia
Terminal Style: Double End
Contact Material: Brass Alloy
Contact Finish Thickness: 200.0µin (5.08µm)
Mounting Hole Diameter: 0.043" (1.09mm)
Termination: Solder
Length - Overall: 0.330" (8.38mm)
Flange Diameter: 0.062" (1.57mm)
Terminal Type: PC Pin
Board Thickness: 0.094" (2.39mm)
Insulation: Non-Insulated
Mounting Type: Through Hole
Contact Finish: Tin-Lead
Packaging: Bulk
auf Bestellung 997 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 17+ | 1.24 EUR |
| 21+ | 1.04 EUR |
| 25+ | 0.98 EUR |
| 50+ | 0.93 EUR |
| 100+ | 0.88 EUR |
| 250+ | 0.83 EUR |
| 500+ | 0.79 EUR |
