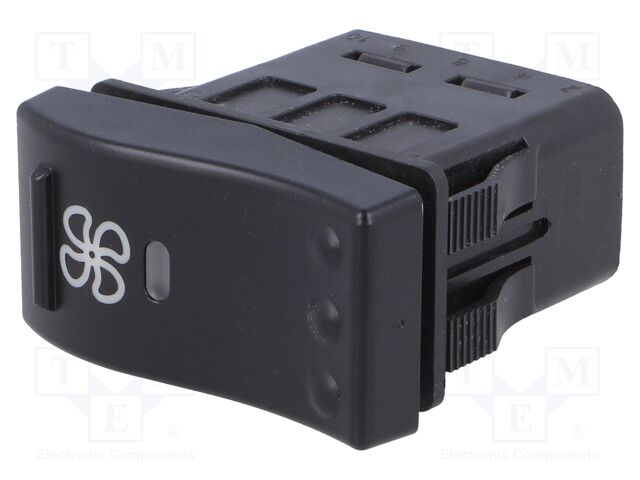

3251.0053 Marquardt



Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 10A/12VDC; black; LED; 3250; 100mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: ON-OFF
DC contacts rating @R: 10A / 12V DC
Key button colour: black
Illumination: LED
Manufacturer series: 3250
Backlight colour: green/red
Max. contact resistance:: 100mΩ
Body colour: black
Operating temperature: -35...70°C
Leads: connectors
Panel thickness: 1...6mm
Mounting hole diameter: 36.8x21.1mm
Button marking: specjal mark
Shape: rectangular
Leads dimensions: 3x0.8mm
Dimensions: 46.2x24x47.6mm
Body dimensions: 46.2x20.6x32.2mm
Button shape: rectangular
Contact plating: silver plated
Contact material: AgNi
IP rating: IP40 at terminal side; IP66 (from the front); IP67 (from the front)
Anzahl je Verpackung: 1 Stücke
auf Bestellung 37 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
5+ | 16.10 EUR |
6+ | 12.34 EUR |
7+ | 11.67 EUR |
50+ | 11.23 EUR |
