Produkte > MARQUARDT > 3251.0058
3251.0058

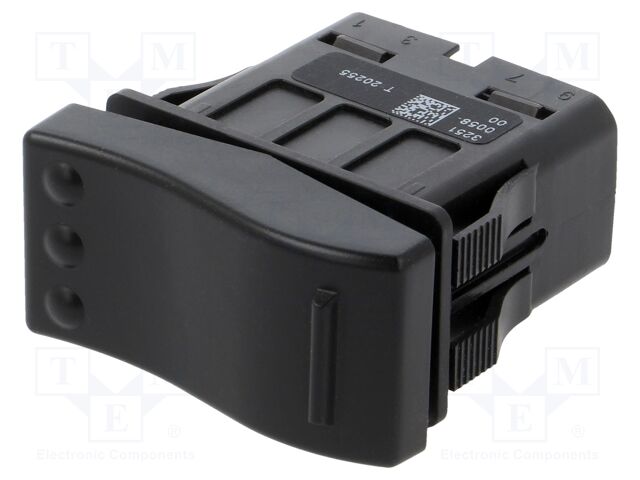

3251.0058 Marquardt


pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9AB97FE9A63E00C4&compId=3251.0058.PDF?ci_sign=1788436bf43405479919524a31fb0c5ead082ae8 pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9AB980E40689A0C4&compId=3251.0058_RYS.PDF?ci_sign=2b792bf9984ff1e68f19a3220147e5a6d96e724f pVersion=0046&contRep=ZT&docId=005056AB281E1EDF9595817F530C00D6&compId=3251%20series.pdf?ci_sign=4f78965e5e1ba366d7f4578dcc554bfb39469d9b Hersteller: Marquardt
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; OFF-(ON); 10A/12VDC; black; none; 3250; 100mΩ
Max. contact resistance:: 100mΩ
Operating temperature: -35...70°C
Body dimensions: 46.2x20.6x32.2mm
Leads dimensions: 3x0.8mm
IP rating: IP40 at terminal side; IP66 (from the front); IP67 (from the front)
Mounting hole diameter: 36.8x21.1mm
Leads: connectors
Contact material: AgNi
Type of switch: ROCKER
Contacts configuration: SPST
DC contacts rating @R: 10A / 12V DC
Switching method: OFF-(ON)
Stable positions number: 1
Illumination: none
Button marking: blank
Body colour: black
Button shape: rectangular
Key button colour: black
Dimensions: 46.2x24x47.6mm
Manufacturer series: 3250
Number of positions: 2
Shape: rectangular
Contact plating: silver plated
Panel thickness: 1...6mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 16 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+13.60 EUR
7+10.30 EUR
8+9.72 EUR
50+9.35 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 3251.0058 Marquardt

Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; OFF-(ON); 10A/12VDC; black; none; 3250; 100mΩ, Max. contact resistance:: 100mΩ, Operating temperature: -35...70°C, Body dimensions: 46.2x20.6x32.2mm, Leads dimensions: 3x0.8mm, IP rating: IP40 at terminal side; IP66 (from the front); IP67 (from the front), Mounting hole diameter: 36.8x21.1mm, Leads: connectors, Contact material: AgNi, Type of switch: ROCKER, Contacts configuration: SPST, DC contacts rating @R: 10A / 12V DC, Switching method: OFF-(ON), Stable positions number: 1, Illumination: none, Button marking: blank, Body colour: black, Button shape: rectangular, Key button colour: black, Dimensions: 46.2x24x47.6mm, Manufacturer series: 3250, Number of positions: 2, Shape: rectangular, Contact plating: silver plated, Panel thickness: 1...6mm, Anzahl je Verpackung: 1 Stücke.
