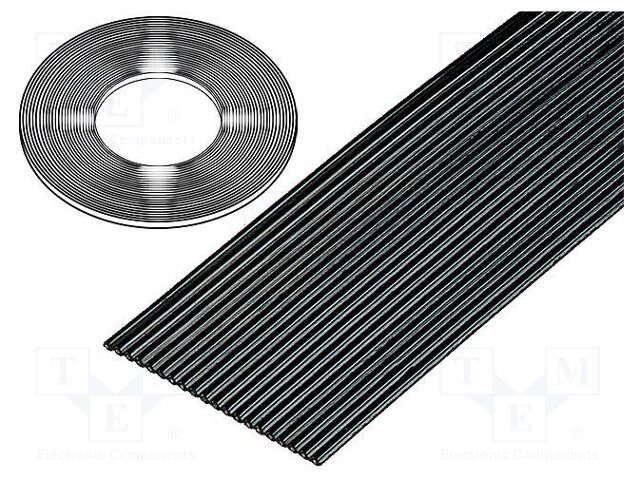

3319/40 (100FT) 3M
Hersteller: 3MCategory: Ribbon Cables - Single Color
Description: Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; black; 30.5m
Type of wire: ribbon
Tape pitch: 1.27mm
Core structure: stranded
Kind of core: Cu; silver plated
Number of cores: 40
Core diameter: 28AWG
Shield structure: unshielded
Wire insulation material: PVC
Insulation colour: black
Operating temperature: -20...105°C
Rated voltage: 49V
Package contents: 30.5m
Cable structure: 40x28AWG
Conform to the norm: CSA AWM I A/B FT1; UL 2651; VW-1
B dimension: 49.53mm
A dimension: 50.8mm
Cable features: work in continuous operation up to 100 million cycles
Flexibility class: 6
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 3319/40 (100FT) 3M
Category: Ribbon Cables - Single Color, Description: Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; black; 30.5m, Type of wire: ribbon, Tape pitch: 1.27mm, Core structure: stranded, Kind of core: Cu; silver plated, Number of cores: 40, Core diameter: 28AWG, Shield structure: unshielded, Wire insulation material: PVC, Insulation colour: black, Operating temperature: -20...105°C, Rated voltage: 49V, Package contents: 30.5m, Cable structure: 40x28AWG, Conform to the norm: CSA AWM I A/B FT1; UL 2651; VW-1, B dimension: 49.53mm, A dimension: 50.8mm, Cable features: work in continuous operation up to 100 million cycles, Flexibility class: 6, Anzahl je Verpackung: 1 Stücke.
