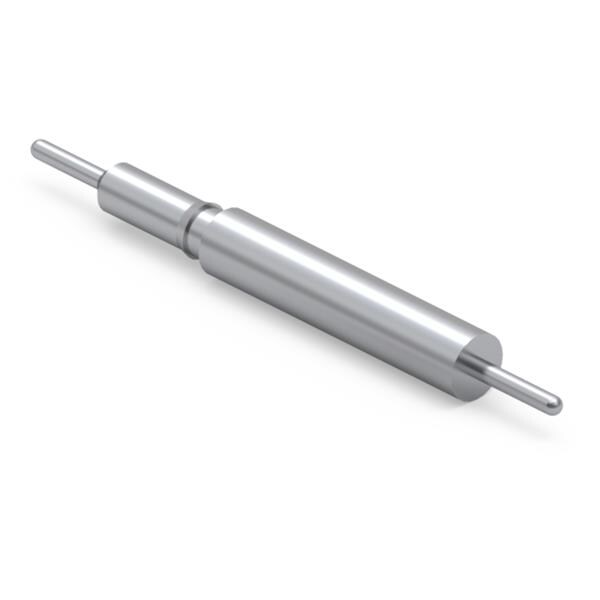

3406-0-00-80-00-00-03-0 Mill-Max Mfg. Corp.

Description: CONN PC PIN CIRC, Packaging: Bulk, Contact Finish: Tin, Mounting Type: Through Hole, Insulation: Non-Insulated, Terminal Type: PC Pin, Flange Diameter: 0.072" (1.83mm), Length - Overall: 0.730" (18.54mm), Termination: Press-Fit, Mounting Hole Diameter: 0.057" (1.45mm), Contact Finish Thickness: 200.0µin (5.08µm), Contact Material: Brass Alloy, Terminal Style: Double End, Pin Size - Above Flange: 0.021" (0.53mm) Dia, Pin Size - Below Flange: 0.021" (0.53mm) Dia, Length - Below Flange: 0.265" (6.73mm), Length - Above Flange: 0.115" (2.92mm).
