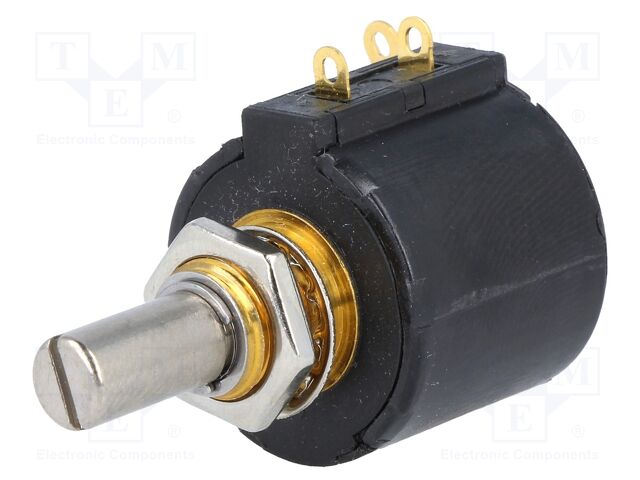

3547S-1AA-502A BOURNS

Category: Wire multiturn potentiometers
Description: Potentiometer: shaft; multiturn; 5kΩ; 1W; ±3%; 6.35mm; linear; IP40
Type of potentiometer: shaft
Power: 1W
Resistance: 5kΩ
Tolerance: ±3%
Characteristics: linear
Shaft diameter: 6.35mm
Shaft surface: smooth
Body dimensions: Ø22.48x19.81mm
Thread length: 8mm
Kind of potentiometer: multiturn
Shaft length: 12.6mm
L shaft length: 20.6mm
Shaft material: metal
Potentiometer features: precise
Track material: wirewound
Min. insulation resistance: 1GΩ
Operating temperature: -40...125°C
Temperature coefficient: 50ppm/°C
IP rating: IP40
Number of electrical turns: 3
Linearity tolerance: ±0.25%
auf Bestellung 49 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
3+ | 27.83 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3547S-1AA-502A BOURNS
Description: BOURNS - 3547S-1AA-502A - Drehpotentiometer, drahtgewickelt, 5 kohm, 3 Umdrehung(en), Linear, 1 W, ± 3%, 3547 Series, tariffCode: 85334010, Produkthöhe: -, rohsCompliant: YES, Bauform/Gehäuse des Widerstands: -, Anzahl der Umdrehungen: 3Umdrehung(en), Widerstandstechnologie: Drahtwiderstand, hazardous: false, rohsPhthalatesCompliant: YES, Potentiometermontage: Panelmontage, Nennleistung: 1W, Einstellungsart: Schraubendreherschlitz, Bahnwiderstand: 5kohm, Widerstandsverlauf: Linear, usEccn: EAR99, Anzahl der Einbaustellen: 1, Wellendurchmesser: 6.35mm, Betriebstemperatur, min.: -40°C, Widerstandstoleranz: 3%, Temperaturkoeffizient: 50ppm/C, Produktlänge: -, euEccn: NLR, Potentiometer: Drehpotentiometer, Länge der Welle: 20.637mm, Produktpalette: 3547 Series, productTraceability: Yes-Date/Lot Code, Potentiometeranschlüsse: Lötfahne, Betriebstemperatur, max.: 125°C, Produktbreite: -, SVHC: Lead (21-Jan-2025).
Weitere Produktangebote 3547S-1AA-502A nach Preis ab 27.11 EUR bis 43.7 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
3547S-1AA-502A | Hersteller : BOURNS |
![]() Description: Potentiometer: shaft; multiturn; 5kΩ; 1W; ±3%; 6.35mm; linear; IP40 Type of potentiometer: shaft Power: 1W Resistance: 5kΩ Tolerance: ±3% Characteristics: linear Shaft diameter: 6.35mm Shaft surface: smooth Body dimensions: Ø22.48x19.81mm Thread length: 8mm Kind of potentiometer: multiturn Shaft length: 12.6mm L shaft length: 20.6mm Shaft material: metal Potentiometer features: precise Track material: wirewound Min. insulation resistance: 1GΩ Operating temperature: -40...125°C Temperature coefficient: 50ppm/°C IP rating: IP40 Number of electrical turns: 3 Linearity tolerance: ±0.25% Anzahl je Verpackung: 1 Stücke |
auf Bestellung 49 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
![]() |
3547S-1AA-502A | Hersteller : Bourns |
![]() |
auf Bestellung 100 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
![]() |
3547S-1AA-502A | Hersteller : Bourns Inc. |
![]() Packaging: Tray Resistance (Ohms): 5k Power (Watts): 1W Tolerance: ±3% Temperature Coefficient: ±50ppm/°C Adjustment Type: User Defined Mounting Type: Panel Mount Termination Style: Solder Lug Bushing Thread: 3/8-32 Actuator Length: 0.813" (20.64mm) Actuator Type: Slotted Built in Switch: None Actuator Diameter: 0.250" (6.35mm) Resistive Material: Wirewound Taper: Linear Rotation: 1080° Number of Gangs: 1 Part Status: Active Number of Turns: 3.0 |
auf Bestellung 389 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
|
3547S-1AA-502A | Hersteller : Bourns |
![]() |
auf Bestellung 97 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
3547S-1AA-502A | Hersteller : BOURNS |
![]() tariffCode: 85334010 Produkthöhe: - rohsCompliant: YES Bauform/Gehäuse des Widerstands: - Anzahl der Umdrehungen: 3Umdrehung(en) Widerstandstechnologie: Drahtwiderstand hazardous: false rohsPhthalatesCompliant: YES Potentiometermontage: Panelmontage Nennleistung: 1W Einstellungsart: Schraubendreherschlitz Bahnwiderstand: 5kohm Widerstandsverlauf: Linear usEccn: EAR99 Anzahl der Einbaustellen: 1 Wellendurchmesser: 6.35mm Betriebstemperatur, min.: -40°C Widerstandstoleranz: 3% Temperaturkoeffizient: 50ppm/C Produktlänge: - euEccn: NLR Potentiometer: Drehpotentiometer Länge der Welle: 20.637mm Produktpalette: 3547 Series productTraceability: Yes-Date/Lot Code Potentiometeranschlüsse: Lötfahne Betriebstemperatur, max.: 125°C Produktbreite: - SVHC: Lead (21-Jan-2025) |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
