4-1393243-3

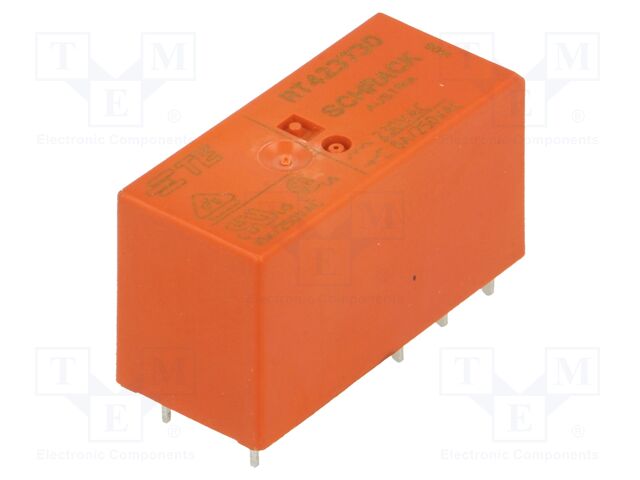

4-1393243-3 TE Connectivity

pVersion=0046&contRep=ZT&docId=005056AB752F1EE697C2D0AD8E7FEFA8&compId=RT2_1014.pdf?ci_sign=e0033a6c55d93d685e8671975f0a9797522d8cf0 Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A; 8A/250VAC; RT2
Operating temperature: -40...70°C
Manufacturer series: RT2
Height: 15.7mm
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
IP rating: IP40
Related items: RT17017; RT17040; RT78726
Relay variant: miniature
Release time: 6ms
Terminal pitch: 5mm
Operate time: 8ms
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 0.75VA
Coil voltage min.: 172.5V AC
Rated coil voltage: 230V AC
Number of pins: 8
Contact current max.: 8A
DC contacts rating @R: 8A / 30V DC
AC contacts rating @R: 8A / 250V AC
Coil resistance: 32.5kΩ
Switched voltage: max. 300V DC; max. 400V AC
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+12.28 EUR
9+8.41 EUR
10+7.94 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 4-1393243-3 TE Connectivity

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A; 8A/250VAC; RT2, Operating temperature: -40...70°C, Manufacturer series: RT2, Height: 15.7mm, Contacts configuration: DPDT, Type of relay: electromagnetic, Mounting: PCB, IP rating: IP40, Related items: RT17017; RT17040; RT78726, Relay variant: miniature, Release time: 6ms, Terminal pitch: 5mm, Operate time: 8ms, Body dimensions: 29x12.7x15.7mm, Coil power consumption: 0.75VA, Coil voltage min.: 172.5V AC, Rated coil voltage: 230V AC, Number of pins: 8, Contact current max.: 8A, DC contacts rating @R: 8A / 30V DC, AC contacts rating @R: 8A / 250V AC, Coil resistance: 32.5kΩ, Switched voltage: max. 300V DC; max. 400V AC, Contact material: AgSnO2, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 4-1393243-3 nach Preis ab 7.94 EUR bis 19.8 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
4-1393243-3 4-1393243-3 Hersteller : TE Connectivity pVersion=0046&contRep=ZT&docId=005056AB752F1EE697C2D0AD8E7FEFA8&compId=RT2_1014.pdf?ci_sign=e0033a6c55d93d685e8671975f0a9797522d8cf0 Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 230VAC; 8A; 8A/250VAC; RT2
Operating temperature: -40...70°C
Manufacturer series: RT2
Height: 15.7mm
Contacts configuration: DPDT
Type of relay: electromagnetic
Mounting: PCB
IP rating: IP40
Related items: RT17017; RT17040; RT78726
Relay variant: miniature
Release time: 6ms
Terminal pitch: 5mm
Operate time: 8ms
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 0.75VA
Coil voltage min.: 172.5V AC
Rated coil voltage: 230V AC
Number of pins: 8
Contact current max.: 8A
DC contacts rating @R: 8A / 30V DC
AC contacts rating @R: 8A / 250V AC
Coil resistance: 32.5kΩ
Switched voltage: max. 300V DC; max. 400V AC
Contact material: AgSnO2
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+12.28 EUR
9+8.41 EUR
10+7.94 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
4-1393243-3 4-1393243-3 Hersteller : TE Connectivity Potter & Brumfield Relays product-4-1393243-3.datasheet.pdf Description: RELAY GEN PURPOSE DPDT 8A 230V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 230VAC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, cURus, VDE
Relay Type: General Purpose
Coil Current: 3.2 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Tin Oxide (AgSnO)
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 400VAC - Max
Must Release Voltage: 34.5 VAC
Must Operate Voltage: 172.5 VAC
Operate Time: 8 ms
Release Time: 6 ms
Part Status: Active
Coil Insulation: Class F
Load - Max Switching: 3200VA
auf Bestellung 1260 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+19.8 EUR
20+16.61 EUR
40+15.94 EUR
60+15.57 EUR
100+15.11 EUR
260+14.28 EUR
500+13.75 EUR
1000+13.2 EUR
Im Einkaufswagen  Stück im Wert von  UAH
4-1393243-3 4-1393243-3 Hersteller : SCHRACK - TE CONNECTIVITY product-4-1393243-3.datasheet.pdf Description: SCHRACK - TE CONNECTIVITY - 4-1393243-3 - LEISTUNGSRELAIS, DPDT, 8A, 250V AC, THT
tariffCode: 85364900
rohsCompliant: YES
Relaisanschlüsse: Lötanschlüsse
hazardous: false
rohsPhthalatesCompliant: YES
Spulentyp: Monostabil
Kontaktmaterial: Silberzinnoxid
Kontaktstrom: 8A
usEccn: EAR99
Spulenwiderstand: 32.5kohm
euEccn: NLR
Kontaktspannung V DC: -
Relaismontage: Durchsteckmontage
Produktpalette: RT2
productTraceability: No
Spulenspannung: 230VAC
Kontaktkonfiguration: DPDT
Kontaktspannung V AC: 250V
SVHC: No SVHC (21-Jan-2025)
auf Bestellung 1127 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
4-1393243-3 4-1393243-3 Hersteller : TE Connectivity eng_ds_rt2_1.pdf Power Relay 230VAC 8A DPDT(29mm 12.7mm 15.7mm) THT
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
4-1393243-3 4-1393243-3 Hersteller : TE Connectivity / Schrack ENG_DS_RT2_3-3475758.pdf General Purpose Relays 8A, 230VAC 2 Form C(CO) PCB MNT
Produkt ist nicht verfügbar
