4-1825136-5

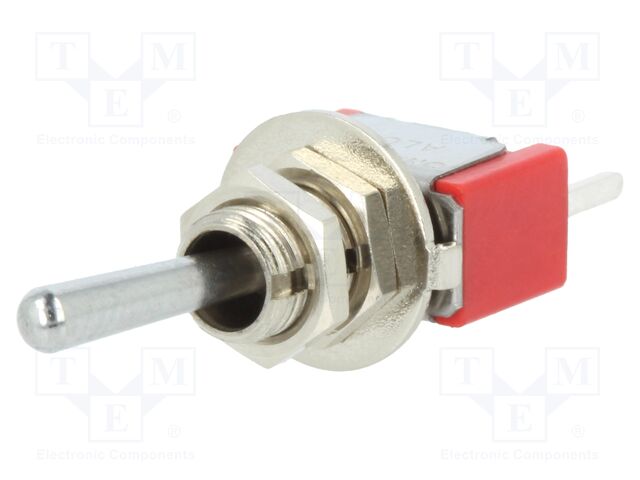

4-1825136-5 TE Connectivity

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58FF436E000C4&compId=4-1825136-5%20datasheet.pdf?ci_sign=6f411310167f6ed4a9b463aa518b6b97b065f25b pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58FA65995E0C4&compId=4-1825136-5%20layout.pdf?ci_sign=d66807277577d67007fccb7ff71ce18539cf3d69 Hersteller: TE Connectivity
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 2A/250VAC; 5A/28VDC; Gemini A
Contact plating: silver plated
Max. contact resistance:: 10mΩ
Operating temperature: -30...85°C
Leads: for PCB
Contact material: copper
Type of switch: toggle
Contacts configuration: SPDT
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Switching method: ON-ON
Stable positions number: 2
Illumination: none
Dimensions: 12.7x6.86x8.89mm
Manufacturer series: Gemini A
Number of positions: 2
Shape: rectangular
Mounting: THT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 85 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
18+4.2 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 4-1825136-5 TE Connectivity

Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 2A/250VAC; 5A/28VDC; Gemini A, Contact plating: silver plated, Max. contact resistance:: 10mΩ, Operating temperature: -30...85°C, Leads: for PCB, Contact material: copper, Type of switch: toggle, Contacts configuration: SPDT, AC contacts rating @R: 2A / 250V AC, DC contacts rating @R: 5A / 28V DC, Switching method: ON-ON, Stable positions number: 2, Illumination: none, Dimensions: 12.7x6.86x8.89mm, Manufacturer series: Gemini A, Number of positions: 2, Shape: rectangular, Mounting: THT, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 4-1825136-5 nach Preis ab 4.2 EUR bis 7.25 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
4-1825136-5 4-1825136-5 Hersteller : TE Connectivity pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58FF436E000C4&compId=4-1825136-5%20datasheet.pdf?ci_sign=6f411310167f6ed4a9b463aa518b6b97b065f25b pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58FA65995E0C4&compId=4-1825136-5%20layout.pdf?ci_sign=d66807277577d67007fccb7ff71ce18539cf3d69 Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 2A/250VAC; 5A/28VDC; Gemini A
Contact plating: silver plated
Max. contact resistance:: 10mΩ
Operating temperature: -30...85°C
Leads: for PCB
Contact material: copper
Type of switch: toggle
Contacts configuration: SPDT
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Switching method: ON-ON
Stable positions number: 2
Illumination: none
Dimensions: 12.7x6.86x8.89mm
Manufacturer series: Gemini A
Number of positions: 2
Shape: rectangular
Mounting: THT
auf Bestellung 85 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
18+4.2 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
4-1825136-5 4-1825136-5 Hersteller : TE Connectivity ALCOSWITCH Switches DDEController?Action=srchrtrv&DocNm=2-1773458-5_GEMINI_SERIES_SWITCHES_QRG&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=4-1825136-5 Description: SWITCH TOGGLE SPDT 5A 120V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 5A (AC/DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: 1/4-40
Actuator Length: 10.41mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.35mm Dia
Part Status: Active
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
auf Bestellung 1879 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.25 EUR
10+6.25 EUR
25+5.9 EUR
50+5.64 EUR
100+5.39 EUR
300+5.03 EUR
500+4.86 EUR
1000+4.65 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
4-1825136-5 4-1825136-5 Hersteller : TE Connectivity eng_cs_1308111-1_switches_core_program_catalog_0308.pdf Switch Toggle ON None ON SPDT Long Baton Lever PC Pins 5A 250VAC 28VDC PC Mount with Threads Bulk
