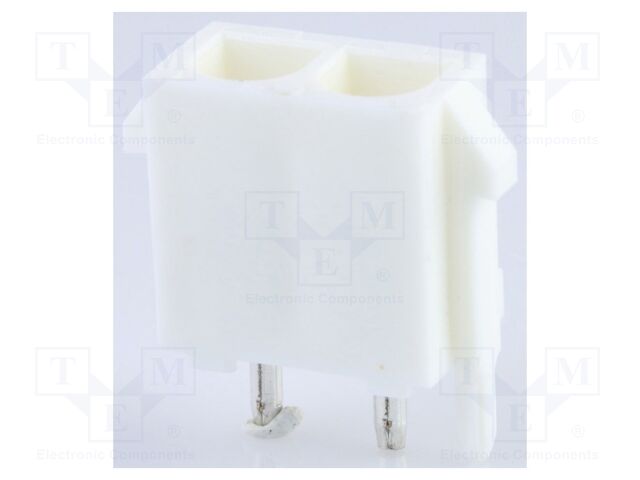

43255-0113 MOLEX
Hersteller: MOLEX
Category: Raster signal connectors 6,35mm
Description: Connector: wire-board; plug; male; PIN: 2; MLX; vertical; 12A; THT
Type of connector: wire-board
Manufacturer series: MLX
Current rating: 12A
Rated voltage: 0.6kV
Connector variant: shrouded
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: phosphor bronze
Contact plating: tinned
Body material: polyamide
Contacts pitch: 6.35mm
Body colour: natural
Connector: plug
Number of pins: 2
Flammability rating: UL94V-2
Operating temperature: -55...105°C
Max. voltage: 0.6kV
Spatial orientation: vertical
Kind of connector: male
Produktrezensionen
Produktbewertung abgeben
Technische Details 43255-0113 MOLEX
Description: 2CKT V-2 HDR W/PEG TIN 432550113, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-2, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 2, Mounting Type: Through Hole, Current Rating (Amps): 12A, Voltage Rating: 600V, Connector Type: Header, Features: Board Guide, Packaging: Tray, Insulation Material: Polyamide (PA66), Nylon 6/6, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.550" (13.97mm), Contact Length - Post: 0.170" (4.32mm), Contact Shape: Circular, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 137.8µin (3.50µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.250" (6.35mm), Insulation Color: Natural.
Weitere Produktangebote 43255-0113 nach Preis ab 0.42 EUR bis 0.89 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
43255-0113 | Molex |
Pin & Socket Connectors 2CKT V-2 HDR W/PEG TIN |
auf Bestellung 81 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| 43255-0113 | Molex |
Description: 2CKT V-2 HDR W/PEG TIN 432550113 Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-2 Termination: Solder Number of Positions Loaded: All Fastening Type: Locking Ramp Contact Type: Male Pin Operating Temperature: -55°C ~ 105°C Style: Board to Cable/Wire Number of Rows: 1 Number of Positions: 2 Mounting Type: Through Hole Current Rating (Amps): 12A Voltage Rating: 600V Connector Type: Header Features: Board Guide Packaging: Tray Insulation Material: Polyamide (PA66), Nylon 6/6 Shrouding: Shrouded - 4 Wall Insulation Height: 0.550" (13.97mm) Contact Length - Post: 0.170" (4.32mm) Contact Shape: Circular Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 137.8µin (3.50µm) Contact Finish - Mating: Tin Pitch - Mating: 0.250" (6.35mm) Insulation Color: Natural |
auf Bestellung 6826 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 43255-0113 |
|
Hersteller: Molex
Pin & Socket Connectors 2CKT V-2 HDR W/PEG TIN
Pin & Socket Connectors 2CKT V-2 HDR W/PEG TIN
auf Bestellung 81 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 0.89 EUR |
| 10+ | 0.77 EUR |
| 25+ | 0.72 EUR |
| 102+ | 0.61 EUR |
| 204+ | 0.49 EUR |
| 1020+ | 0.42 EUR |
| 43255-0113 |
|
Hersteller: Molex
Description: 2CKT V-2 HDR W/PEG TIN 432550113
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-2
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Locking Ramp
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 1
Number of Positions: 2
Mounting Type: Through Hole
Current Rating (Amps): 12A
Voltage Rating: 600V
Connector Type: Header
Features: Board Guide
Packaging: Tray
Insulation Material: Polyamide (PA66), Nylon 6/6
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.550" (13.97mm)
Contact Length - Post: 0.170" (4.32mm)
Contact Shape: Circular
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 137.8µin (3.50µm)
Contact Finish - Mating: Tin
Pitch - Mating: 0.250" (6.35mm)
Insulation Color: Natural
Description: 2CKT V-2 HDR W/PEG TIN 432550113
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-2
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Locking Ramp
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 1
Number of Positions: 2
Mounting Type: Through Hole
Current Rating (Amps): 12A
Voltage Rating: 600V
Connector Type: Header
Features: Board Guide
Packaging: Tray
Insulation Material: Polyamide (PA66), Nylon 6/6
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.550" (13.97mm)
Contact Length - Post: 0.170" (4.32mm)
Contact Shape: Circular
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 137.8µin (3.50µm)
Contact Finish - Mating: Tin
Pitch - Mating: 0.250" (6.35mm)
Insulation Color: Natural
auf Bestellung 6826 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 250+ | 0.52 EUR |
| 1500+ | 0.49 EUR |
| 2750+ | 0.48 EUR |
| 5500+ | 0.47 EUR |
