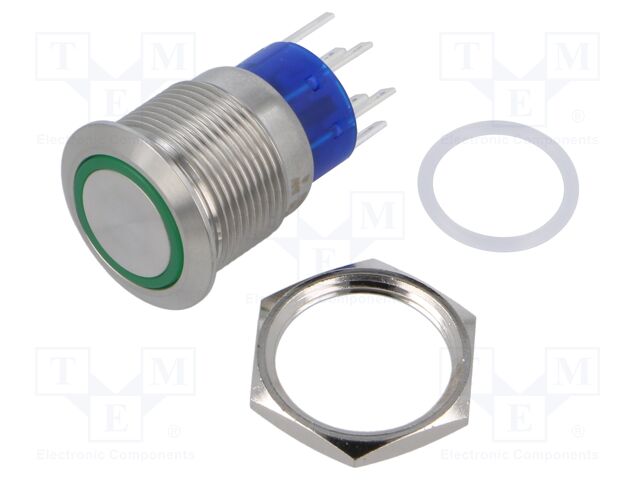

5-2213767-5 TE Connectivity
Hersteller: TE Connectivity
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON)
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: DPST
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: OFF-(ON)
Illumination: LED; ring
Backlight colour: green
Illumination voltage: 24V DC
Leads: connectors
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 3.5N
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø19.2mm
Body colour: silver
Manufacturer series: AV
Contact material: copper
Contact plating: silver plated
Actuator colour: silver
Min. insulation resistance: 1GΩ
Mounting: on panel
Key stroke: 3.2mm
Flammability rating: UL94V-0
Operating temperature: -20...55°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 35.75 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 5-2213767-5 TE Connectivity
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON), Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: DPST, AC contacts rating @R: 3A / 250V AC, IP rating: IP67, Switching method: OFF-(ON), Illumination: LED; ring, Backlight colour: green, Illumination voltage: 24V DC, Leads: connectors, Leads dimensions: 2.8x0.5mm, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 3.5N, Mechanical durability: 1000000 cycles, Button shape: round, Mounting hole diameter: Ø19.2mm, Body colour: silver, Manufacturer series: AV, Contact material: copper, Contact plating: silver plated, Actuator colour: silver, Min. insulation resistance: 1GΩ, Mounting: on panel, Key stroke: 3.2mm, Flammability rating: UL94V-0, Operating temperature: -20...55°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 5-2213767-5 nach Preis ab 14.36 EUR bis 40.28 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5-2213767-5 | Hersteller : TE Connectivity |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; DPST; 3A/250VAC; IP67; OFF-(ON) Type of switch: vandal resistant Number of positions: 2 Stable positions number: 1 Contacts configuration: DPST AC contacts rating @R: 3A / 250V AC IP rating: IP67 Switching method: OFF-(ON) Illumination: LED; ring Backlight colour: green Illumination voltage: 24V DC Leads: connectors Leads dimensions: 2.8x0.5mm Electrical life: 50000 cycles Max. contact resistance:: 50mΩ Operating Force: 3.5N Mechanical durability: 1000000 cycles Button shape: round Mounting hole diameter: Ø19.2mm Body colour: silver Manufacturer series: AV Contact material: copper Contact plating: silver plated Actuator colour: silver Min. insulation resistance: 1GΩ Mounting: on panel Key stroke: 3.2mm Flammability rating: UL94V-0 Operating temperature: -20...55°C |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
| 5-2213767-5 | Hersteller : TE Connectivity | AV19 DPM 5A Move Ring LED Green 24V |
auf Bestellung 100 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| 5-2213767-5 | Hersteller : TE Connectivity | AV19 DPM 5A Move Ring LED Green 24V |
auf Bestellung 72 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| 5-2213767-5 | Hersteller : TE Connectivity | AV19 DPM 5A Move Ring LED Green 24V |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| 5-2213767-5 | Hersteller : TE CONNECTIVITY / PARTNER STOCK |
Description: TE CONNECTIVITY / PARTNER STOCK - 5-2213767-5 - Vandalensicherer Schalter, AV19 Series, 19 mm, DPST, Tastend, Rund, bündig tariffCode: 85365080 rohsCompliant: Y-EX Schalteranschlüsse: Lötfahne Betätiger-/Kappenfarbe: - hazardous: false rohsPhthalatesCompliant: YES Plattenausschnitt (H x B): - Schalterfunktion: Tastend IP-Schutzart: IP67 usEccn: EAR99 AC-Kontaktstrom, max.: 3A euEccn: NLR DC-Kontaktstrom, max.: - Kontaktspannung V DC: - Farbe der Beleuchtung: Grün Durchmesser des Frontplattenausschnitts: 19mm Schaltermontage: Panelmontage Produktpalette: AV19 Series productTraceability: No Druckknopf-Betätiger: Rund, bündig Kontaktkonfiguration: DPST Kontaktspannung V AC: 250V SVHC: To Be Advised |
auf Bestellung 58 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
| 5-2213767-5 | Hersteller : TE Connectivity |
 AV19 DPM 5A Move Ring LED Green 24V |
Produkt ist nicht verfügbar |
||||||||||||||
 |
5-2213767-5 | Hersteller : TE Connectivity / Alcoswitch |
Pushbutton Switches AV19 DPM 3A MOVE RING LED GREEN 24V |
Produkt ist nicht verfügbar |
