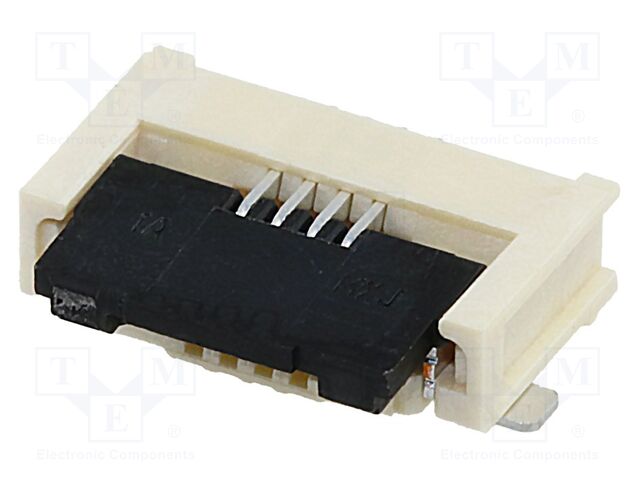

5052781733 Molex
Hersteller: Molex
Description: CONN FFC BOTTOM 17POS 0.5MM R/A
Features: Solder Retention
Packaging: Tape & Reel (TR)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 17
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 85°C
Termination: Solder
Height Above Board: 0.075" (1.90mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA), Nylon, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Tabbed, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
| Anzahl | Privatkunde |
|---|---|
| 3000+ | 0.87 EUR |
| 6000+ | 0.82 EUR |
| 9000+ | 0.8 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
3000 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details 5052781733 Molex
Description: CONN FFC BOTTOM 17POS 0.5MM R/A, Features: Solder Retention, Packaging: Tape & Reel (TR), Contact Finish: Tin, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 17, Pitch: 0.020" (0.50mm), Operating Temperature: -40°C ~ 85°C, Termination: Solder, Height Above Board: 0.075" (1.90mm), Locking Feature: Flip Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA), Nylon, Glass Filled, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Cable End Type: Tabbed, Tapered, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom.
Weitere Produktangebote 5052781733 nach Preis ab 0.68 EUR bis 1.52 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5052781733 | Molex |
Description: CONN FFC BOTTOM 17POS 0.5MM R/A Features: Solder Retention Packaging: Cut Tape (CT) Contact Finish: Tin Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 17 Pitch: 0.020" (0.50mm) Operating Temperature: -40°C ~ 85°C Termination: Solder Height Above Board: 0.075" (1.90mm) Locking Feature: Flip Lock Material Flammability Rating: UL94 V-0 Actuator Material: Polyamide (PA), Nylon, Glass Filled Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm Housing Material: Liquid Crystal Polymer (LCP), Glass Filled Cable End Type: Tabbed, Tapered Flat Flex Type: FFC, FPC Connector/Contact Type: Contacts, Bottom |
auf Bestellung 17996 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
505278-1733 | Molex |
FFC & FPC Connectors 0.5 FFC ZIF BTM CONT 17Ckt R/A FRONT FLIP |
auf Bestellung 1291 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
505278-1733 | Molex |
Description: 0.5 FFC ZIF BTM CONT EMBT PKG 17 |
auf Bestellung 6000 Stücke: Lieferzeit 10-14 Tag (e) |
Mindestbestellmenge: 3000 Stücke Im Einkaufswagen Stück im Wert von UAH | ||||||||||||||||
 |
505278-1733 | MOLEX |
Category: Connectors FFC/FPC 0.5mm Description: Connector: FFC/FPC; data; tinned; SMT; 500mA; 50V; Easy-On; PIN: 17 Type of connector: FFC/FPC Connector family: data Contact plating: tinned Flammability rating: UL94V-0 Electrical mounting: SMT Operating temperature: -40...85°C Connector variant: bottom contacts; with lock Number of pins: 17 Current rating: 0.5A Locking system: FlipLock Spatial orientation: right Rated voltage: 50V Contact material: phosphor bronze Manufacturer series: Easy-On |
auf Bestellung 9000 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 3000 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 5052781733 |
|
Hersteller: Molex
Description: CONN FFC BOTTOM 17POS 0.5MM R/A
Features: Solder Retention
Packaging: Cut Tape (CT)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 17
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 85°C
Termination: Solder
Height Above Board: 0.075" (1.90mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA), Nylon, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Tabbed, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Description: CONN FFC BOTTOM 17POS 0.5MM R/A
Features: Solder Retention
Packaging: Cut Tape (CT)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 17
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 85°C
Termination: Solder
Height Above Board: 0.075" (1.90mm)
Locking Feature: Flip Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA), Nylon, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Tabbed, Tapered
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
auf Bestellung 17996 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 17+ | 1.24 EUR |
| 21+ | 1.01 EUR |
| 25+ | 0.93 EUR |
| 50+ | 0.88 EUR |
| 100+ | 0.82 EUR |
| 250+ | 0.76 EUR |
| 500+ | 0.71 EUR |
| 1000+ | 0.68 EUR |
| 505278-1733 |
|
Hersteller: Molex
FFC & FPC Connectors 0.5 FFC ZIF BTM CONT 17Ckt R/A FRONT FLIP
FFC & FPC Connectors 0.5 FFC ZIF BTM CONT 17Ckt R/A FRONT FLIP
auf Bestellung 1291 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 1.52 EUR |
| 10+ | 1.3 EUR |
| 100+ | 1 EUR |
| 500+ | 0.95 EUR |
| 1000+ | 0.79 EUR |
| 3000+ | 0.7 EUR |
| 6000+ | 0.68 EUR |
| 505278-1733 |
|
Hersteller: Molex
Description: 0.5 FFC ZIF BTM CONT EMBT PKG 17
Description: 0.5 FFC ZIF BTM CONT EMBT PKG 17
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
| 505278-1733 |
|
Hersteller: MOLEX
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; data; tinned; SMT; 500mA; 50V; Easy-On; PIN: 17
Type of connector: FFC/FPC
Connector family: data
Contact plating: tinned
Flammability rating: UL94V-0
Electrical mounting: SMT
Operating temperature: -40...85°C
Connector variant: bottom contacts; with lock
Number of pins: 17
Current rating: 0.5A
Locking system: FlipLock
Spatial orientation: right
Rated voltage: 50V
Contact material: phosphor bronze
Manufacturer series: Easy-On
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; data; tinned; SMT; 500mA; 50V; Easy-On; PIN: 17
Type of connector: FFC/FPC
Connector family: data
Contact plating: tinned
Flammability rating: UL94V-0
Electrical mounting: SMT
Operating temperature: -40...85°C
Connector variant: bottom contacts; with lock
Number of pins: 17
Current rating: 0.5A
Locking system: FlipLock
Spatial orientation: right
Rated voltage: 50V
Contact material: phosphor bronze
Manufacturer series: Easy-On
auf Bestellung 9000 Stücke:
Lieferzeit 14-21 Tag (e)
