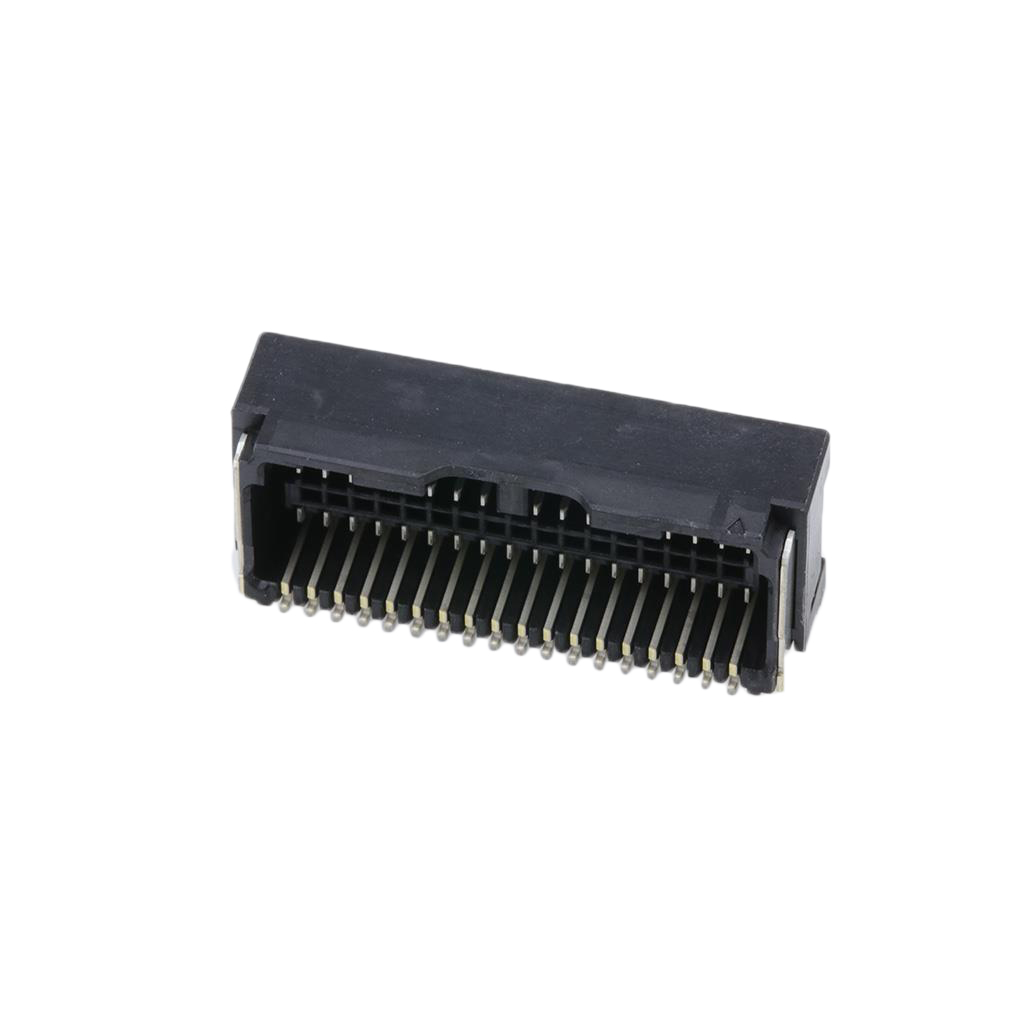

505448-3671 Molex

Description: CONN HEADER SMD R/A 36POS 1.25MM, Features: Pick and Place, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 50VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Right Angle, Number of Positions: 36, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.049" (1.25mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.352" (8.95mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
