51303

51303 HELUKABEL


pVersion=0046&contRep=ZT&docId=005056AB281E1EDC91BD677FC99B00CE&compId=50999-EN.pdf?ci_sign=b3c79732c030a6a47c18bb5a910eed9168230ac4 Hersteller: HELUKABEL
Category: Heat resistant cables

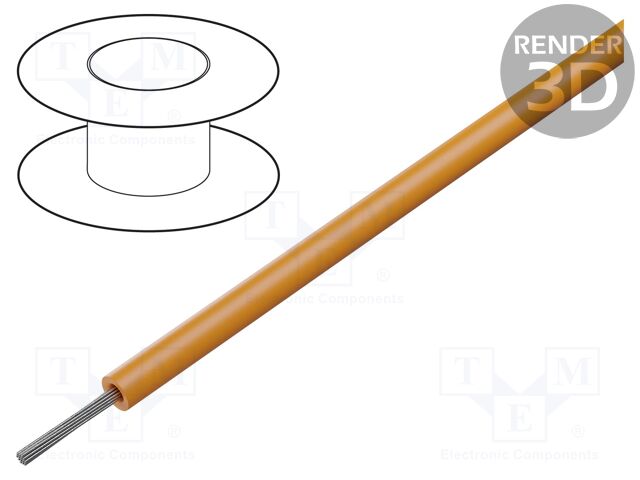

Description: Wire; HELUTHERM® 145; 1x0.75mm2; stranded; Cu; orange; -55÷145°C
Type of wire: assembly
Kind of wire: HELUTHERM® 145
Cable structure: 1x0.75mm2
Core structure: stranded
Kind of core: Cu; tinned
Number of cores: 1
Core section: 0.75mm2
Wire insulation material: crosslinked polyolefine copolymer; XLPO
Insulation colour: orange
Operating temperature: -55...145°C
Rated voltage: 300V; 500V
Resistance to: mechanical stesses; most of oils; ozone; to weather conditions; UV rays
Cable features: low smoke density
Cable external diameter: 2.2mm
Shield structure: unshielded
CPR standard: Eca
Flexibility class: 5
Kind of material: halogen free; no flame propagation
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 51303 HELUKABEL

Category: Heat resistant cables, Description: Wire; HELUTHERM® 145; 1x0.75mm2; stranded; Cu; orange; -55÷145°C, Type of wire: assembly, Kind of wire: HELUTHERM® 145, Cable structure: 1x0.75mm2, Core structure: stranded, Kind of core: Cu; tinned, Number of cores: 1, Core section: 0.75mm2, Wire insulation material: crosslinked polyolefine copolymer; XLPO, Insulation colour: orange, Operating temperature: -55...145°C, Rated voltage: 300V; 500V, Resistance to: mechanical stesses; most of oils; ozone; to weather conditions; UV rays, Cable features: low smoke density, Cable external diameter: 2.2mm, Shield structure: unshielded, CPR standard: Eca, Flexibility class: 5, Kind of material: halogen free; no flame propagation, Anzahl je Verpackung: 1 Stücke.
