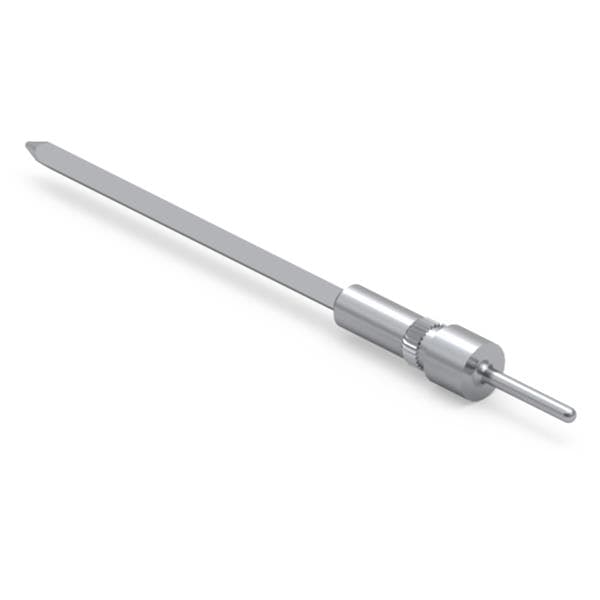

5301-0-05-80-00-00-01-0 Mill-Max Manufacturing Corp.
Hersteller: Mill-Max Manufacturing Corp.
Description: CONN PC PIN CIRC
Mounting Type: Through Hole
Contact Finish: Tin
Packaging: Bulk
Length - Above Flange: 0.147" (3.73mm)
Length - Below Flange: 0.673" (17.09mm)
Pin Size - Below Flange: 0.025" (0.64mm) Square
Pin Size - Above Flange: 0.019" (0.48mm) Dia
Terminal Style: Double End
Contact Material: Brass Alloy
Contact Finish Thickness: 200.0µin (5.08µm)
Mounting Hole Diameter: 0.057" (1.45mm)
Termination: Press-Fit, Knurled, Wire Wrap
Length - Overall: 0.880" (22.35mm)
Flange Diameter: 0.072" (1.83mm)
Terminal Type: PC Pin
Insulation: Non-Insulated
Produktrezensionen
Produktbewertung abgeben
Technische Details 5301-0-05-80-00-00-01-0 Mill-Max Manufacturing Corp.
Description: CONN PC PIN CIRC, Mounting Type: Through Hole, Contact Finish: Tin, Packaging: Bulk, Length - Above Flange: 0.147" (3.73mm), Length - Below Flange: 0.673" (17.09mm), Pin Size - Below Flange: 0.025" (0.64mm) Square, Pin Size - Above Flange: 0.019" (0.48mm) Dia, Terminal Style: Double End, Contact Material: Brass Alloy, Contact Finish Thickness: 200.0µin (5.08µm), Mounting Hole Diameter: 0.057" (1.45mm), Termination: Press-Fit, Knurled, Wire Wrap, Length - Overall: 0.880" (22.35mm), Flange Diameter: 0.072" (1.83mm), Terminal Type: PC Pin, Insulation: Non-Insulated.
Weitere Produktangebote 5301-0-05-80-00-00-01-0
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
5301-0-05-80-00-00-01-0 | Hersteller : Mill-Max |
Circuit Board Hardware - PCB 200u SN OVER NI |
Produkt ist nicht verfügbar |
