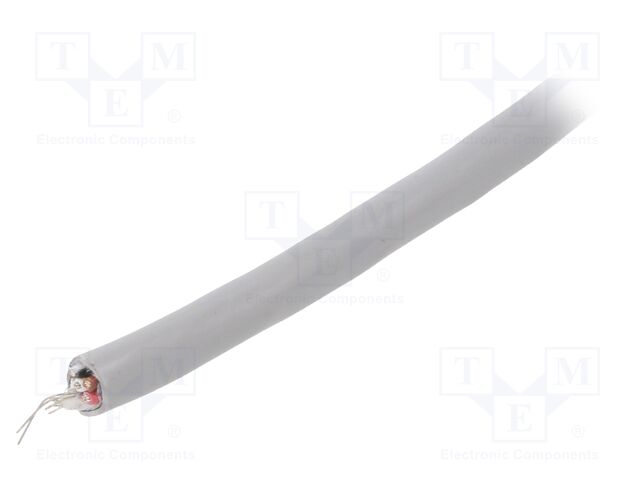

5483C SL005 Alpha Wire
Hersteller: Alpha WireDescription: MULTI-PAIR 6CON 22AWG SLATE 100'
Features: Biological Compatibility, Drain Wire, Rip Cord
Packaging: Spool
Length: 100.0' (30.5m)
Wire Gauge: 22 AWG
Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
Conductor Strand: 7/28
Operating Temperature: -35°C ~ 105°C
Number of Conductors: 6 (3 Pair Twisted)
Cable Type: Multi-Pair
Jacket (Insulation) Diameter: 0.249" (6.32mm)
Usage: Communication, Control
Ratings: ISO 10993, UL Style 2464
Jacket (Insulation) Thickness: 0.0320" (0.813mm)
Shield Type: Foil
Conductor Material: Copper, Tinned
Jacket Color: Slate
Part Status: Active
Voltage: 300 V
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 598.51 EUR |
| 3+ | 554.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 5483C SL005 Alpha Wire
Category: Multicore Cables - Shielded, Description: Wire; Xtra Guard® 1; 3x2x22AWG; shielded,Al foil; PVC; dark grey, Type of wire: control cable, Kind of wire: Xtra Guard® 1, Cable structure: 3x2x22AWG, Core structure: stranded, Kind of core: Cu; tinned, Number of cores: 6, No. of pairs: 3, Core diameter: 22AWG, Core marking: colours with colour repetition, Shield structure: Al foil; shielded, Wire insulation material: PVC, Insulation colour: dark grey, Rated voltage: 300V, Operating temperature: -35...105°C, Resistance to: flame; most of oils; UV rays, Cable features: twisted pair conductors, Package contents: 30.5m, Cable external diameter: 6.68mm, CPR standard: no classification, Earth core: none, Package contents - ft: 100ft, Conform to the norm: CSA CMG FT4; UL 2464; UL 2517; UL 10002; VW-1, Ground: tinned copper strand 22AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 5483C SL005 nach Preis ab 589.79 EUR bis 599.61 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5483C SL005 | Hersteller : ALPHA WIRE |
Category: Multicore Cables - Shielded Description: Wire; Xtra Guard® 1; 3x2x22AWG; shielded,Al foil; PVC; dark grey Type of wire: control cable Kind of wire: Xtra Guard® 1 Cable structure: 3x2x22AWG Core structure: stranded Kind of core: Cu; tinned Number of cores: 6 No. of pairs: 3 Core diameter: 22AWG Core marking: colours with colour repetition Shield structure: Al foil; shielded Wire insulation material: PVC Insulation colour: dark grey Rated voltage: 300V Operating temperature: -35...105°C Resistance to: flame; most of oils; UV rays Cable features: twisted pair conductors Package contents: 30.5m Cable external diameter: 6.68mm CPR standard: no classification Earth core: none Package contents - ft: 100ft Conform to the norm: CSA CMG FT4; UL 2464; UL 2517; UL 10002; VW-1 Ground: tinned copper strand 22AWG Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
|
|
5483C SL005 | Hersteller : ALPHA WIRE |
Category: Multicore Cables - Shielded Description: Wire; Xtra Guard® 1; 3x2x22AWG; shielded,Al foil; PVC; dark grey Type of wire: control cable Kind of wire: Xtra Guard® 1 Cable structure: 3x2x22AWG Core structure: stranded Kind of core: Cu; tinned Number of cores: 6 No. of pairs: 3 Core diameter: 22AWG Core marking: colours with colour repetition Shield structure: Al foil; shielded Wire insulation material: PVC Insulation colour: dark grey Rated voltage: 300V Operating temperature: -35...105°C Resistance to: flame; most of oils; UV rays Cable features: twisted pair conductors Package contents: 30.5m Cable external diameter: 6.68mm CPR standard: no classification Earth core: none Package contents - ft: 100ft Conform to the norm: CSA CMG FT4; UL 2464; UL 2517; UL 10002; VW-1 Ground: tinned copper strand 22AWG |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
5483C SL005 | Hersteller : Alpha Wire |
Multi-Conductor Cables 22AWG 3PR SHIELD 100ft SPOOL SLATE |
Produkt ist nicht verfügbar |
