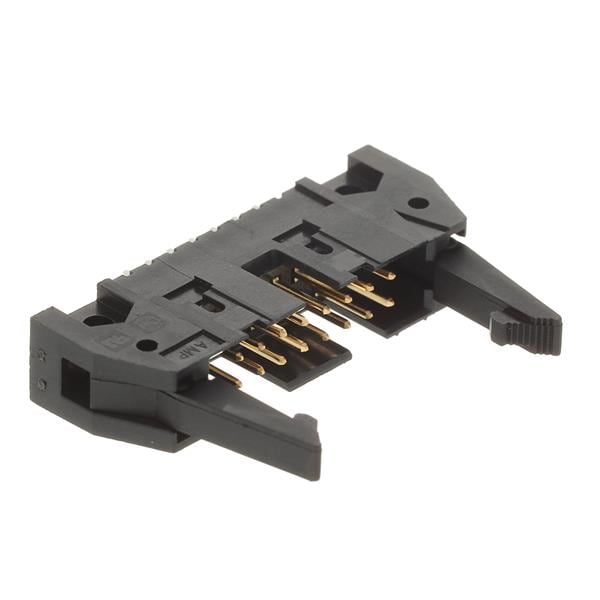

5499922-3

5499922-3

Hersteller: TE

DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
verfügbar/auf Bestellung
auf Bestellung 7 Stücke
Lieferzeit 14-28 Tag (e)

21+ 4.09 EUR
23+ 3.69 EUR
29+ 3.18 EUR
126+ 2.92 EUR
294+ 2.73 EUR

Technische Details 5499922-3

Description: CONN HEADER VERT 16POS 2.54MM, Base Part Number: 5499922, Contact Finish Thickness - Post: 100.0µin (2.54µm), Voltage Rating: 250VAC, Current Rating (Amps): 1A, Insulation Color: Black, Material Flammability Rating: UL94 V-0, Operating Temperature: -65°C ~ 105°C, Features: Keying Slot, Mounting Flange, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Shape: Square, Insulation Height: 0.549" (13.94mm), Overall Contact Length: 0.639" (16.23mm), Contact Length - Post: 0.110" (2.79mm), Contact Length - Mating: 0.240" (6.10mm), Fastening Type: Latch Lock/Eject Hooks, Long, Termination: Solder, Mounting Type: Through Hole, Shrouding: Shrouded - 4 Wall, Style: Board to Cable/Wire, Number of Positions Loaded: All, Row Spacing - Mating: 0.100" (2.54mm), Number of Rows: 2, Number of Positions: 16, Pitch - Mating: 0.100" (2.54mm), Contact Type: Male Pin, Connector Type: Header, Part Status: Active, Packaging: Tray, Manufacturer: TE Connectivity AMP Connectors.

Preis 5499922-3 ab 2.73 EUR bis 8.96 EUR

5499922-3
5499922-3
Hersteller: TE Connectivity
Headers & Wire Housings 16 POS HDR 15AU W/LONG LATCHES
DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
auf Bestellung 848 Stücke
Lieferzeit 14-28 Tag (e)
6+ 8.96 EUR
10+ 7.92 EUR
84+ 7.15 EUR
252+ 6.27 EUR
5499922-3
5499922-3
Hersteller: AMP - TE CONNECTIVITY
Description: AMP - TE CONNECTIVITY - 5499922-3 - Pin Header, Straight, Wire-to-Board, 2.54 mm, 2 Rows, 16 Contacts, Through Hole Straight
Contact Plating: Gold Plated Contacts
Product Range: AMP-LATCH Series
Connector Systems: Wire-to-Board
No. of Contacts: 16
No. of Rows: 2
Connector Shroud: Shrouded
Pitch Spacing: 2.54
Contact Termination Type: Through Hole Straight
Gender: Header
Contact Material: Copper
SVHC: No SVHC (19-Jan-2021)
DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
487 Stücke
5499922-3
5499922-3
Hersteller: TE Connectivity
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Tray
eng_cat_889409_0699_96_.pdf
428 Stücke
5499922-3
Hersteller: TE Connectivity
Material: 5499922-3 Other connectors TE
DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
Produkt ist nicht verfügbar, Sie können Anfrage senden wenn Sie Produkt in den Warenkorb hinzufügen
5499922-3
Hersteller: TE Connectivity
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Tray
DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
auf Bestellung 1 Stücke
Lieferzeit 14-21 Tag (e)
5499922-3
5499922-3
Hersteller: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 16POS 2.54MM
Base Part Number: 5499922
Contact Finish Thickness - Post: 100.0µin (2.54µm)
Voltage Rating: 250VAC
Current Rating (Amps): 1A
Insulation Color: Black
Material Flammability Rating: UL94 V-0
Operating Temperature: -65°C ~ 105°C
Features: Keying Slot, Mounting Flange
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold or Gold-Palladium
Contact Shape: Square
Insulation Height: 0.549" (13.94mm)
Overall Contact Length: 0.639" (16.23mm)
Contact Length - Post: 0.110" (2.79mm)
Contact Length - Mating: 0.240" (6.10mm)
Fastening Type: Latch Lock/Eject Hooks, Long
Termination: Solder
Mounting Type: Through Hole
Shrouding: Shrouded - 4 Wall
Style: Board to Cable/Wire
Number of Positions Loaded: All
Row Spacing - Mating: 0.100" (2.54mm)
Number of Rows: 2
Number of Positions: 16
Pitch - Mating: 0.100" (2.54mm)
Contact Type: Male Pin
Connector Type: Header
Part Status: Active
Packaging: Tray
Manufacturer: TE Connectivity AMP Connectors
DDEController?Action=srchrtrv&DocNm=5499922&DocType=Customer+Drawing&DocLang=English
Produkt ist nicht verfügbar, Sie können Anfrage senden wenn Sie Produkt in den Warenkorb hinzufügen
