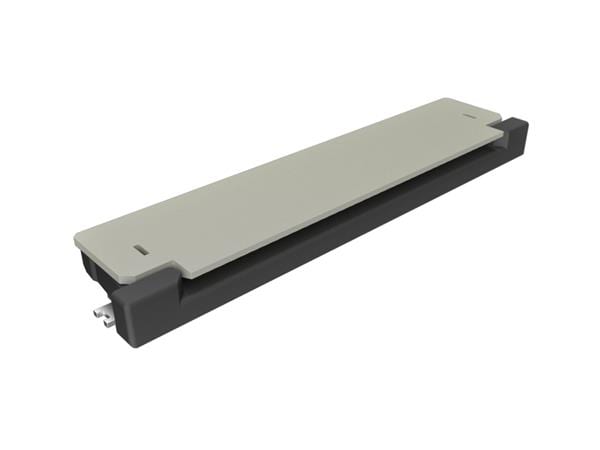

62684-362100ALF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC TOP 36POS 0.5MM R/A
Features: Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 36
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.079" (2.00mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyamide (PA9T), Nylon 9T, Glass Filled
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
Produktrezensionen
Produktbewertung abgeben
Technische Details 62684-362100ALF Amphenol ICC (FCI)
Description: CONN FPC TOP 36POS 0.5MM R/A, Features: Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 36, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 85°C, Termination: Solder, Height Above Board: 0.079" (2.00mm), Locking Feature: Slide Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Thermoplastic, Glass Filled, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, 0.33mm, Housing Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Cable End Type: Notched, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Top, Part Status: Active.
Weitere Produktangebote 62684-362100ALF nach Preis ab 0.58 EUR bis 1.64 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
62684-362100ALF | Amphenol ICC (FCI) |
Description: CONN FPC TOP 36POS 0.5MM R/A Features: Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Contact Finish: Gold Voltage Rating: 50V Mounting Type: Surface Mount, Right Angle Number of Positions: 36 Pitch: 0.020" (0.50mm) Operating Temperature: -55°C ~ 85°C Termination: Solder Height Above Board: 0.079" (2.00mm) Locking Feature: Slide Lock Material Flammability Rating: UL94 V-0 Actuator Material: Thermoplastic, Glass Filled Contact Material: Phosphor Bronze FFC, FCB Thickness: 0.30mm, 0.33mm Housing Material: Polyamide (PA9T), Nylon 9T, Glass Filled Cable End Type: Notched Flat Flex Type: FPC Connector/Contact Type: Contacts, Top Part Status: Active |
auf Bestellung 4776 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
62684-362100ALF | Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, OPU Series, 36 Position , Side Entry, Upper Side Contact, Surface Mount, ZIF |
auf Bestellung 4668 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| 62684-362100ALF | Burndy |
Conn FFC/FPC Connector SKT 36 POS 0.5mm Solder RA SMD T/R |
auf Bestellung 980 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
| 62684-362100ALF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 62684-362100ALF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 36 Kontakt(e), Buchse, FCI OPU 62684 Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.3mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 36Kontakt(e) euEccn: NLR Kontaktposition: Oben Produktpalette: FCI OPU 62684 Series productTraceability: No Kontaktanschluss: Oberflachenmontage, abgewinkelt Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (17-Jan-2023) |
auf Bestellung 3900 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
| 62684-362100ALF | AFCI |
|
auf Bestellung 2863 Stücke: Lieferzeit 21-28 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 62684-362100ALF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC TOP 36POS 0.5MM R/A
Features: Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 36
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.079" (2.00mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyamide (PA9T), Nylon 9T, Glass Filled
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
Description: CONN FPC TOP 36POS 0.5MM R/A
Features: Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 36
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.079" (2.00mm)
Locking Feature: Slide Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Glass Filled
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm, 0.33mm
Housing Material: Polyamide (PA9T), Nylon 9T, Glass Filled
Cable End Type: Notched
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Top
Part Status: Active
auf Bestellung 4776 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 20+ | 1.05 EUR |
| 24+ | 0.89 EUR |
| 25+ | 0.83 EUR |
| 50+ | 0.8 EUR |
| 100+ | 0.76 EUR |
| 250+ | 0.71 EUR |
| 500+ | 0.68 EUR |
| 1000+ | 0.64 EUR |
| 62684-362100ALF |
|
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, OPU Series, 36 Position , Side Entry, Upper Side Contact, Surface Mount, ZIF
FFC & FPC Connectors 0.50mm Flex Connector, OPU Series, 36 Position , Side Entry, Upper Side Contact, Surface Mount, ZIF
auf Bestellung 4668 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 1.08 EUR |
| 10+ | 0.95 EUR |
| 25+ | 0.87 EUR |
| 100+ | 0.82 EUR |
| 250+ | 0.74 EUR |
| 1000+ | 0.67 EUR |
| 2500+ | 0.63 EUR |
| 62684-362100ALF |
|
Hersteller: Burndy
Conn FFC/FPC Connector SKT 36 POS 0.5mm Solder RA SMD T/R
Conn FFC/FPC Connector SKT 36 POS 0.5mm Solder RA SMD T/R
auf Bestellung 980 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 980+ | 0.8 EUR |
| 62684-362100ALF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 62684-362100ALF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 36 Kontakt(e), Buchse, FCI OPU 62684 Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 36Kontakt(e)
euEccn: NLR
Kontaktposition: Oben
Produktpalette: FCI OPU 62684 Series
productTraceability: No
Kontaktanschluss: Oberflachenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (17-Jan-2023)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 62684-362100ALF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 36 Kontakt(e), Buchse, FCI OPU 62684 Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 36Kontakt(e)
euEccn: NLR
Kontaktposition: Oben
Produktpalette: FCI OPU 62684 Series
productTraceability: No
Kontaktanschluss: Oberflachenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (17-Jan-2023)
auf Bestellung 3900 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 153+ | 1.64 EUR |
| 262+ | 0.89 EUR |
| 300+ | 0.8 EUR |
| 800+ | 0.77 EUR |
| 2000+ | 0.58 EUR |
| 62684-362100ALF |
|
Hersteller: AFCI
auf Bestellung 2863 Stücke:
Lieferzeit 21-28 Tag (e)
