6343 SL005 ALPHA WIRE
Hersteller: ALPHA WIRECategory: Multicore Cables - Shielded

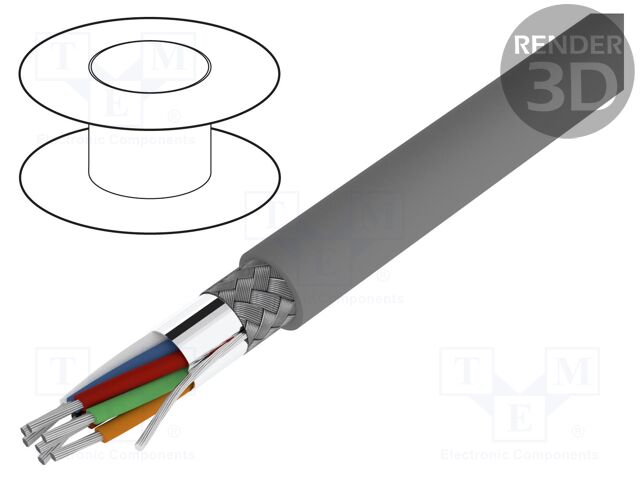

Description: Wire; Alpha Essential C&C; 7x22AWG; PVC; dark grey; 300V; 30.5m
Conform to the norm: CSA CMG FT4; UL 2464; UL CM; VW-1
Type of wire: control cable
Wire insulation material: PVC
Insulation colour: dark grey
Kind of core: Cu; tinned
Kind of wire: Alpha Essential C&C
Shield structure: Al-PET foil; shielded twofold; tinned copper braid
Number of cores: 7
Core marking: colours without colour repetition
Cable external diameter: 6.12mm
Core diameter: 22AWG
Core structure: stranded
Earth core: none
CPR standard: no classification
Package contents: 30.5m
Package contents - ft: 100ft
Ground: tinned copper strand 24AWG
Cable structure: 7x22AWG
Rated voltage: 300V
Operating temperature: -20...80°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 158.46 EUR |
| 5+ | 152.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 6343 SL005 ALPHA WIRE
Category: Multicore Cables - Shielded, Description: Wire; Alpha Essential C&C; 7x22AWG; PVC; dark grey; 300V; 30.5m, Conform to the norm: CSA CMG FT4; UL 2464; UL CM; VW-1, Type of wire: control cable, Wire insulation material: PVC, Insulation colour: dark grey, Kind of core: Cu; tinned, Kind of wire: Alpha Essential C&C, Shield structure: Al-PET foil; shielded twofold; tinned copper braid, Number of cores: 7, Core marking: colours without colour repetition, Cable external diameter: 6.12mm, Core diameter: 22AWG, Core structure: stranded, Earth core: none, CPR standard: no classification, Package contents: 30.5m, Package contents - ft: 100ft, Ground: tinned copper strand 24AWG, Cable structure: 7x22AWG, Rated voltage: 300V, Operating temperature: -20...80°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 6343 SL005 nach Preis ab 158.46 EUR bis 437.96 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
6343 SL005 | Hersteller : ALPHA WIRE |
Category: Multicore Cables - Shielded Description: Wire; Alpha Essential C&C; 7x22AWG; PVC; dark grey; 300V; 30.5m Conform to the norm: CSA CMG FT4; UL 2464; UL CM; VW-1 Type of wire: control cable Wire insulation material: PVC Insulation colour: dark grey Kind of core: Cu; tinned Kind of wire: Alpha Essential C&C Shield structure: Al-PET foil; shielded twofold; tinned copper braid Number of cores: 7 Core marking: colours without colour repetition Cable external diameter: 6.12mm Core diameter: 22AWG Core structure: stranded Earth core: none CPR standard: no classification Package contents: 30.5m Package contents - ft: 100ft Ground: tinned copper strand 24AWG Cable structure: 7x22AWG Rated voltage: 300V Operating temperature: -20...80°C |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
6343 SL005 | Hersteller : Alpha Wire |
Description: CABLE 7CON 22AWG SLATE SHLD 100' Features: Drain Wire Packaging: Spool Length: 100.0' (30.5m) Wire Gauge: 22 AWG Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC) Conductor Strand: 7/28 Operating Temperature: -20°C ~ 80°C Number of Conductors: 7 Cable Type: Multi-Conductor Jacket (Insulation) Diameter: 0.241" (6.12mm) Ratings: UL Style 2464 Jacket (Insulation) Thickness: 0.0320" (0.813mm) Shield Type: Foil, Braid Conductor Material: Copper, Tinned Jacket Color: Slate Part Status: Active Voltage: 300 V |
auf Bestellung 4 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
6343 SL005 | Hersteller : ALPHA WIRE |
Description: ALPHA WIRE - 6343 SL005 - Mehradrige Kabel, Steuerung, Geschirmt, 7 Ader(n), 22 AWG, 0.35 mm², 100 ft, 30.5 m tariffCode: 85444995 Anzahl der Adern: 7Ader(n) Länge auf Rolle (metrisch): 30.5m Leitermaterial: Verzinntes Kupfer rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Drahtdurchmesser: 22AWG Mantelmaterial: PVC usEccn: EAR99 Länge auf Rolle (imperial): 100ft Mantelfarbe: Schiefer Leiterquerschnitt CSA: 0.35mm² euEccn: NLR Max. Anzahl d. Einzeldrähte x Einzeldrahtgröße: 7 x 30AWG Außendurchmesser: 6.2mm Produktpalette: - productTraceability: No Nennspannung: 300V Kabelabschirmung: Geschirmt SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 5 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||
| 6343 SL005 | Hersteller : Alpha Wire |
Shielded Multi-Conductor Cable Tape Polyvinyl Chloride 7Conductors 22AWG 6.42mm 300VAC Slate Polyvinyl Chloride 30.48m Spool |
Produkt ist nicht verfügbar |
||||||||
 |
6343 SL005 | Hersteller : Alpha Wire |
Multi-Conductor Cables 22 AWG, 7 Conductor Communication Cable, Shielded, 100 ft - Slate |
Produkt ist nicht verfügbar |
