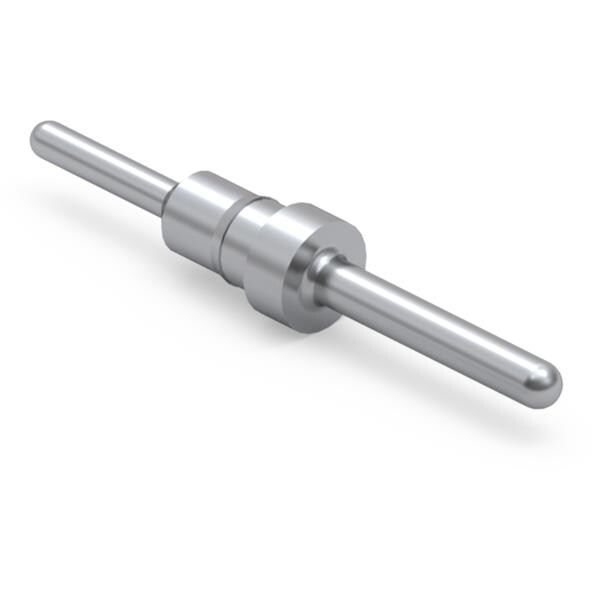

7007-0-00-80-00-00-03-0 Mill-Max Manufacturing Corp.
Hersteller: Mill-Max Manufacturing Corp.
Description: CONN PC PIN CIRC
Length - Above Flange: 0.195" (4.95mm)
Length - Below Flange: 0.211" (5.36mm)
Pin Size - Below Flange: 0.024" (0.61mm) Dia
Pin Size - Above Flange: 0.030" (0.76mm) Dia
Terminal Style: Double End
Contact Material: Brass Alloy
Contact Finish Thickness: 200.0µin (5.08µm)
Mounting Hole Diameter: 0.057" (1.45mm)
Termination: Press-Fit
Length - Overall: 0.438" (11.13mm)
Flange Diameter: 0.072" (1.83mm)
Terminal Type: PC Pin
Insulation: Non-Insulated
Mounting Type: Through Hole
Contact Finish: Tin
Packaging: Bulk
Produktrezensionen
Produktbewertung abgeben
Technische Details 7007-0-00-80-00-00-03-0 Mill-Max Manufacturing Corp.
Description: CONN PC PIN CIRC, Length - Above Flange: 0.195" (4.95mm), Length - Below Flange: 0.211" (5.36mm), Pin Size - Below Flange: 0.024" (0.61mm) Dia, Pin Size - Above Flange: 0.030" (0.76mm) Dia, Terminal Style: Double End, Contact Material: Brass Alloy, Contact Finish Thickness: 200.0µin (5.08µm), Mounting Hole Diameter: 0.057" (1.45mm), Termination: Press-Fit, Length - Overall: 0.438" (11.13mm), Flange Diameter: 0.072" (1.83mm), Terminal Type: PC Pin, Insulation: Non-Insulated, Mounting Type: Through Hole, Contact Finish: Tin, Packaging: Bulk.
Weitere Produktangebote 7007-0-00-80-00-00-03-0
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
7007-0-00-80-00-00-03-0 | Hersteller : Mill-Max |
Circuit Board Hardware - PCB 200u SN OVER NI |
Produkt ist nicht verfügbar |
