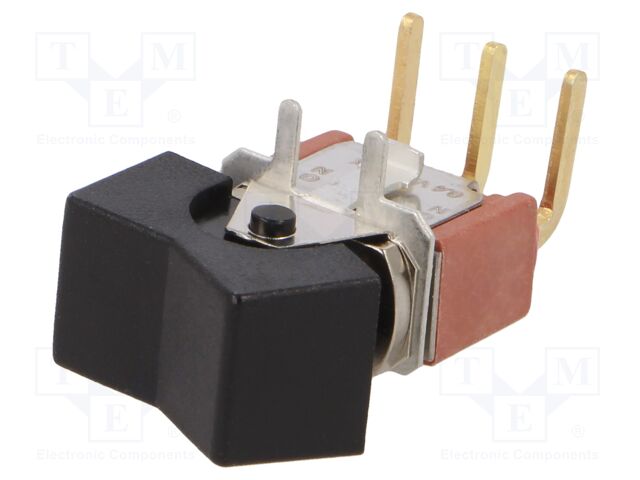

7101J1ABE2 C&K

Category: Rocker Switches
Description: ROCKER; SPDT; Pos: 2; ON-ON; 7000; Rcont max: 10mΩ; -30÷85°C; THT
Max. contact resistance:: 10mΩ
Min. insulation resistance: 1GΩ
Terminal pitch: 4.7mm
Operating temperature: -30...85°C
Body dimensions: 12.7x6.86x9.4mm
Leads: angled; for PCB
Number of terminals: 3
Electrical life: 100000 cycles
Contact material: copper
Type of switch: ROCKER
Contacts configuration: SPDT
Switching method: ON-ON
Stable positions number: 2
Manufacturer series: 7000
Number of positions: 2
Colour: black
Mounting: THT
Contact plating: gold-plated; nickel plated
Anzahl je Verpackung: 1 Stücke
auf Bestellung 61 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
6+ | 12.87 EUR |
8+ | 9.55 EUR |
9+ | 9.19 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 7101J1ABE2 C&K
Description: C&K COMPONENTS - 7101J1ABE2 - Wippschalter, Miniatur, Ein-Keine-Ein, SPDT, Nicht beleuchtet, Durchsteckmontage, Schwarz, tariffCode: 85365019, rohsCompliant: YES, Schalteranschlüsse: Leiterplattenstift, abgewinkelt, Betätiger-/Kappenfarbe: Schwarz, hazardous: false, rohsPhthalatesCompliant: YES, Schalterfunktion: Ein-Keine-Ein, Höhe des Frontplattenausschnitts: -, usEccn: EAR99, AC-Kontaktstrom, max.: -, Breite des Frontplattenausschnitts: -, AC-Kontaktspannung, nom.: 20V, euEccn: NLR, DC-Kontaktstrom, max.: -, Kontaktspannung V DC: 20V, DC-Kontaktspannung, nom.: 20V, Beleuchtung: Nicht beleuchtet, Durchmesser des Frontplattenausschnitts: -, Schaltermontage: Durchsteckmontage, Produktpalette: 7000 Series, productTraceability: No, Kontaktkonfiguration: SPDT, Kontaktspannung V AC: 20V, SVHC: Lead (10-Jun-2022).
Weitere Produktangebote 7101J1ABE2 nach Preis ab 9.19 EUR bis 19.45 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
7101J1ABE2 | Hersteller : C&K |
![]() Description: ROCKER; SPDT; Pos: 2; ON-ON; 7000; Rcont max: 10mΩ; -30÷85°C; THT Max. contact resistance:: 10mΩ Min. insulation resistance: 1GΩ Terminal pitch: 4.7mm Operating temperature: -30...85°C Body dimensions: 12.7x6.86x9.4mm Leads: angled; for PCB Number of terminals: 3 Electrical life: 100000 cycles Contact material: copper Type of switch: ROCKER Contacts configuration: SPDT Switching method: ON-ON Stable positions number: 2 Manufacturer series: 7000 Number of positions: 2 Colour: black Mounting: THT Contact plating: gold-plated; nickel plated |
auf Bestellung 61 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
![]() |
7101J1ABE2 | Hersteller : C&K |
![]() Packaging: Tray Features: Epoxy Sealed Terminals Current Rating (Amps): 0.4VA (AC/DC) Mounting Type: Through Hole, Right Angle Circuit: SPDT Switch Function: On-On Operating Temperature: -30°C ~ 85°C Termination Style: PC Pin Actuator Type: Concave (Standard V) Panel Cutout Dimensions: Rectangular - 17.96mm x 10.62mm Color - Actuator/Cap: Black Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 20 V Voltage Rating - DC: 20 V Approval Agency: cULus |
auf Bestellung 172 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
7101J1ABE2 | Hersteller : C&K COMPONENTS |
![]() tariffCode: 85365019 rohsCompliant: YES Schalteranschlüsse: Leiterplattenstift, abgewinkelt Betätiger-/Kappenfarbe: Schwarz hazardous: false rohsPhthalatesCompliant: YES Schalterfunktion: Ein-Keine-Ein Höhe des Frontplattenausschnitts: - usEccn: EAR99 AC-Kontaktstrom, max.: - Breite des Frontplattenausschnitts: - AC-Kontaktspannung, nom.: 20V euEccn: NLR DC-Kontaktstrom, max.: - Kontaktspannung V DC: 20V DC-Kontaktspannung, nom.: 20V Beleuchtung: Nicht beleuchtet Durchmesser des Frontplattenausschnitts: - Schaltermontage: Durchsteckmontage Produktpalette: 7000 Series productTraceability: No Kontaktkonfiguration: SPDT Kontaktspannung V AC: 20V SVHC: Lead (10-Jun-2022) |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
7101J1ABE2 | Hersteller : C&K |
![]() |
auf Bestellung 104 Stücke: Lieferzeit 10-14 Tag (e) |
