7301SYZQE
Produktcode: 199184
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Passive Bauelemente > Schalter, Schubschalter, Kippschalter (alle außer Knopf/Tasten)
Produktrezensionen
Produktbewertung abgeben
Technische Details 7301SYZQE
- SWITCH, 3PDT
- Series:7000
- Switch Function Type:3PDT On-On
- Contact Configuration:3PDT
- Max Contact Voltage AC:250V
- Max Contact Voltage DC:125V
- Max Contact Current AC:2A
- Max Contact Current DC:5A
- Terminal Type:Solder
- Tab Blade Thickness:0.76mm
- Bush Thread Length:8.88mm
- Contact Current @ Contact Voltage AC Max:2A
- Contact Current @ Contact Voltage DC Max:5A
- Contact Material:Silver
- Contact Resistance:10mohm
- External Depth:10.54mm
- External Length / Height:12.7mm
- External Width:16.51mm
- Height:12.7mm
- Lever Length:11mm
- Max Operating Temperature:85`C
- Min Temperature Operating:-55`C
- No. of Mechanical Operations:40000
- No. of Poles:3
- Panel Cut-out Diameter:6.35mm
- Thread Size:1/4" x 40 NS
Weitere Produktangebote 7301SYZQE nach Preis ab 25.36 EUR bis 49.93 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

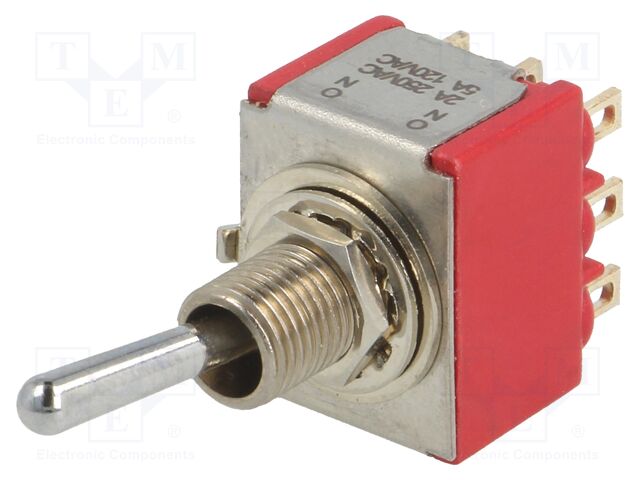

7301SYZQE | C&K |
 Category: Toggle SwitchesDescription: Switch: toggle; Pos: 2; 3PDT; ON-ON; 2A/250VAC; 5A/28VDC; 7000; IP40 IP rating: IP40 Manufacturer series: 7000 Mounting: on panel Leads: for soldering Contact plating: silver plated Switching method: ON-ON Kind of toggle: round Type of switch: toggle Operating temperature: -30...85°C Mounting hole diameter: Ø6.35mm Max. contact resistance:: 10mΩ Knob height: 11mm Body dimensions: 12.7x6.86x8.89mm Stable positions number: 2 Number of positions: 2 AC contacts rating @R: 2A / 250V AC DC contacts rating @R: 5A / 28V DC Electrical life: 100000 cycles Min. insulation resistance: 1GΩ Contacts configuration: 3PDT |
auf Bestellung 63 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
7301SYZQE | C&K |
Toggle Switches ON-ON 3PDT SLDR MNT |
auf Bestellung 235 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
7301SYZQE | Littelfuse |
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk |
auf Bestellung 195 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
7301SYZQE | C&K |
Description: SWITCH TOGGLE 3PDT 5A 120V Packaging: Bulk Features: Epoxy Sealed Terminals Current Rating (Amps): 5A (AC/DC) Mounting Type: Panel Mount Circuit: 3PDT Switch Function: On-On Operating Temperature: -30°C ~ 85°C Termination Style: Solder Lug Illumination: Non-Illuminated Bushing Thread: 1/4-40 Actuator Length: 10.67mm Actuator Type: Standard Round Panel Cutout Dimensions: Circular - 6.35mm Dia Part Status: Active Voltage Rating - AC: 120 V Voltage Rating - DC: 28 V |
auf Bestellung 135 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
7301SYZQE | Littelfuse |
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk |
auf Bestellung 63 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
7301SYZQE | C&K COMPONENTS |
Description: C&K COMPONENTS - 7301SYZQE - Kippschalter, Ein-Keine-Ein, 3PDT, Nicht beleuchtet, 7000 Series, Panelmontage, 5 A tariffCode: 85365080 euEccn: NLR rohsCompliant: YES Schalteranschlüsse: Lötfahne hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 5A Schalterfunktion: Ein-Keine-Ein isCanonical: Y AC-Kontaktspannung, nom.: 120V SVHC: Lead (10-Jun-2022) DC-Kontaktspannung, nom.: 28V Beleuchtung: Nicht beleuchtet Schaltermontage: Panelmontage Produktpalette: 7000 Series productTraceability: No usEccn: EAR99 Kontaktkonfiguration: 3PDT |
auf Bestellung 104 Stücke: Lieferzeit 14-21 Tag (e) |
|
| 7301SYZQE |
|
Hersteller: C&K
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; 3PDT; ON-ON; 2A/250VAC; 5A/28VDC; 7000; IP40
IP rating: IP40
Manufacturer series: 7000
Mounting: on panel
Leads: for soldering
Contact plating: silver plated
Switching method: ON-ON
Kind of toggle: round
Type of switch: toggle
Operating temperature: -30...85°C
Mounting hole diameter: Ø6.35mm
Max. contact resistance:: 10mΩ
Knob height: 11mm
Body dimensions: 12.7x6.86x8.89mm
Stable positions number: 2
Number of positions: 2
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Electrical life: 100000 cycles
Min. insulation resistance: 1GΩ
Contacts configuration: 3PDT
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; 3PDT; ON-ON; 2A/250VAC; 5A/28VDC; 7000; IP40
IP rating: IP40
Manufacturer series: 7000
Mounting: on panel
Leads: for soldering
Contact plating: silver plated
Switching method: ON-ON
Kind of toggle: round
Type of switch: toggle
Operating temperature: -30...85°C
Mounting hole diameter: Ø6.35mm
Max. contact resistance:: 10mΩ
Knob height: 11mm
Body dimensions: 12.7x6.86x8.89mm
Stable positions number: 2
Number of positions: 2
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Electrical life: 100000 cycles
Min. insulation resistance: 1GΩ
Contacts configuration: 3PDT
auf Bestellung 63 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 28.35 EUR |
| 10+ | 25.36 EUR |
| 7301SYZQE |
|
Hersteller: C&K
Toggle Switches ON-ON 3PDT SLDR MNT
Toggle Switches ON-ON 3PDT SLDR MNT
auf Bestellung 235 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 41.45 EUR |
| 10+ | 37.12 EUR |
| 20+ | 35.41 EUR |
| 50+ | 34.28 EUR |
| 100+ | 33.93 EUR |
| 200+ | 32.96 EUR |
| 500+ | 32.33 EUR |
| 7301SYZQE |
|
Hersteller: Littelfuse
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
auf Bestellung 195 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 45.4 EUR |
| 10+ | 40.67 EUR |
| 25+ | 36.99 EUR |
| 50+ | 35.16 EUR |
| 7301SYZQE |
|
Hersteller: C&K
Description: SWITCH TOGGLE 3PDT 5A 120V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 5A (AC/DC)
Mounting Type: Panel Mount
Circuit: 3PDT
Switch Function: On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: 1/4-40
Actuator Length: 10.67mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.35mm Dia
Part Status: Active
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
Description: SWITCH TOGGLE 3PDT 5A 120V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 5A (AC/DC)
Mounting Type: Panel Mount
Circuit: 3PDT
Switch Function: On-On
Operating Temperature: -30°C ~ 85°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: 1/4-40
Actuator Length: 10.67mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.35mm Dia
Part Status: Active
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
auf Bestellung 135 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 46.46 EUR |
| 10+ | 40.08 EUR |
| 25+ | 37.78 EUR |
| 50+ | 36.14 EUR |
| 100+ | 34.56 EUR |
| 7301SYZQE |
|
Hersteller: Littelfuse
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
Switch Toggle ON None ON 3PDT Round Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Medical Bulk
auf Bestellung 63 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 46.74 EUR |
| 10+ | 41.22 EUR |
| 7301SYZQE |
|
Hersteller: C&K COMPONENTS
Description: C&K COMPONENTS - 7301SYZQE - Kippschalter, Ein-Keine-Ein, 3PDT, Nicht beleuchtet, 7000 Series, Panelmontage, 5 A
tariffCode: 85365080
euEccn: NLR
rohsCompliant: YES
Schalteranschlüsse: Lötfahne
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 5A
Schalterfunktion: Ein-Keine-Ein
isCanonical: Y
AC-Kontaktspannung, nom.: 120V
SVHC: Lead (10-Jun-2022)
DC-Kontaktspannung, nom.: 28V
Beleuchtung: Nicht beleuchtet
Schaltermontage: Panelmontage
Produktpalette: 7000 Series
productTraceability: No
usEccn: EAR99
Kontaktkonfiguration: 3PDT
Description: C&K COMPONENTS - 7301SYZQE - Kippschalter, Ein-Keine-Ein, 3PDT, Nicht beleuchtet, 7000 Series, Panelmontage, 5 A
tariffCode: 85365080
euEccn: NLR
rohsCompliant: YES
Schalteranschlüsse: Lötfahne
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 5A
Schalterfunktion: Ein-Keine-Ein
isCanonical: Y
AC-Kontaktspannung, nom.: 120V
SVHC: Lead (10-Jun-2022)
DC-Kontaktspannung, nom.: 28V
Beleuchtung: Nicht beleuchtet
Schaltermontage: Panelmontage
Produktpalette: 7000 Series
productTraceability: No
usEccn: EAR99
Kontaktkonfiguration: 3PDT
auf Bestellung 104 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 49.93 EUR |
| 10+ | 42.69 EUR |
| 20+ | 41.83 EUR |
