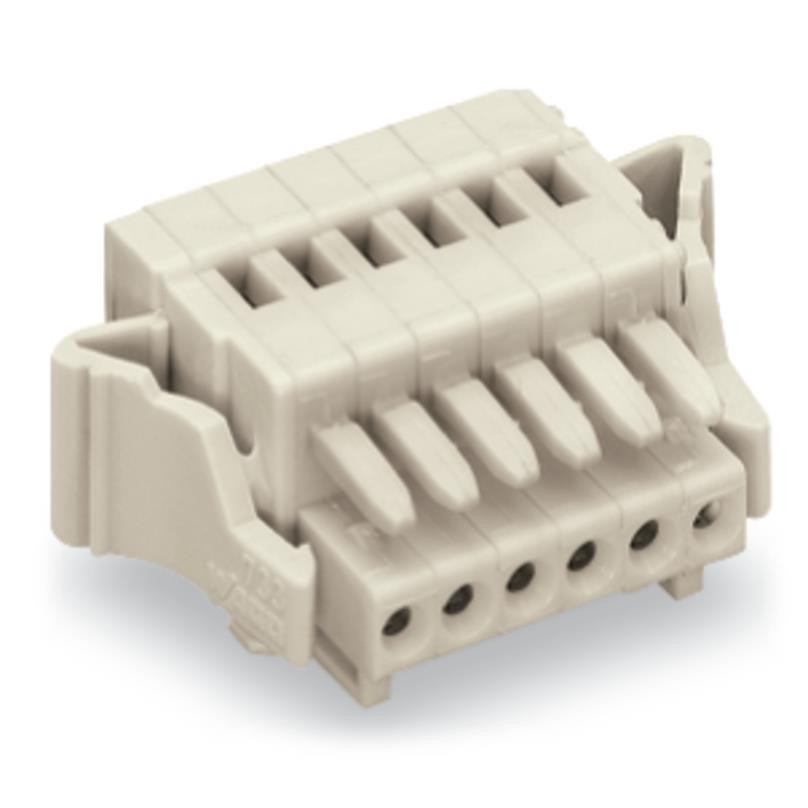

733-107/037-000 WAGO Corporation
Hersteller: WAGO CorporationDescription: 1-CONDUCTOR FEMALE PLUG; 100% PR
Features: Lever Actuated
Packaging: Box
Color: Gray
Mounting Type: Free Hanging (In-Line)
Number of Positions: 7
Pitch: 0.098" (2.50mm)
Type: Plug, Female Sockets
Operating Temperature: -60°C ~ 100°C
Termination Style: Screwless - Push-In Spring
Current - IEC: 6A
Number of Levels: 1
Wire Gauge or Range - AWG: 20-28 AWG
Wire Gauge or Range - mm²: 0.08-0.5mm²
Positions Per Level: 7
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 4 A
Voltage - IEC: 320 V
Voltage - UL: 150 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 733-107/037-000 WAGO Corporation
Description: 1-CONDUCTOR FEMALE PLUG; 100% PR, Features: Lever Actuated, Packaging: Box, Color: Gray, Mounting Type: Free Hanging (In-Line), Number of Positions: 7, Pitch: 0.098" (2.50mm), Type: Plug, Female Sockets, Operating Temperature: -60°C ~ 100°C, Termination Style: Screwless - Push-In Spring, Current - IEC: 6A, Number of Levels: 1, Wire Gauge or Range - AWG: 20-28 AWG, Wire Gauge or Range - mm²: 0.08-0.5mm², Positions Per Level: 7, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 4 A, Voltage - IEC: 320 V, Voltage - UL: 150 V.
