Produkte > BELDEN > 74003PU.01500
74003PU.01500

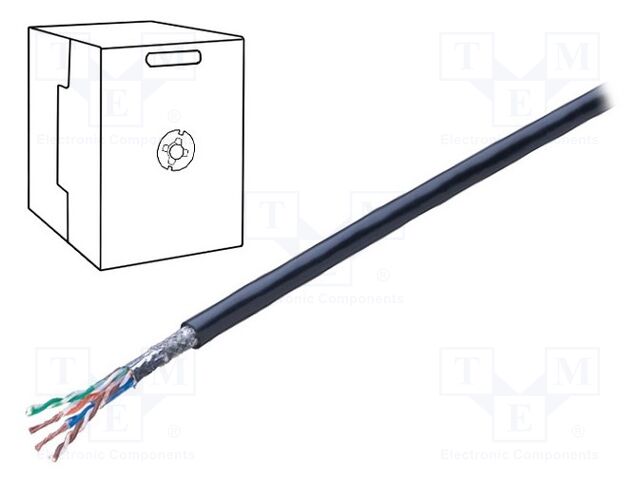

74003PU.01500 BELDEN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB3DFC75DE90B40D6&compId=74003PU_EN.pdf?ci_sign=25a6ad58cc7d4a8d0eeab5750dd67be3f5dc005e Hersteller: BELDEN
Category: Industrial Ethernet Cables
Description: Wire; SF/UTP; 4x2x26AWG; industrial Ethernet; 5e; stranded; Cu
Type of wire: data transmission
Kind of wire: SF/UTP
Core structure: stranded
Kind of core: Cu
Number of cores: 8
Shield structure: Al-PET foil; braid made of copper wires; shielded twofold
Wire insulation material: PUR
Insulation colour: black
Operating temperature: -40...80°C
Package contents: 500m
Cable external diameter: 6.65mm
CPR standard: no classification
Package contents - ft: 1640ft
Core diameter: 26AWG
Kind of material: no flame propagation
Cable structure: 4x2x26AWG
Rated voltage: 300V
Conform to the norm: ISO 11801
Ethernet category: Cat 5e
Resistance to: mechanical stesses; most of chemical compounds; most of oils; most of solvents; UV rays
Cable features: twisted pair conductors
No. of pairs: 4
Cable application: industrial Ethernet
auf Bestellung 314 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.55 EUR
19+3.95 EUR
20+3.73 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 74003PU.01500 BELDEN

Category: Industrial Ethernet Cables, Description: Wire; SF/UTP; 4x2x26AWG; industrial Ethernet; 5e; stranded; Cu, Type of wire: data transmission, Kind of wire: SF/UTP, Core structure: stranded, Kind of core: Cu, Number of cores: 8, Shield structure: Al-PET foil; braid made of copper wires; shielded twofold, Wire insulation material: PUR, Insulation colour: black, Operating temperature: -40...80°C, Package contents: 500m, Cable external diameter: 6.65mm, CPR standard: no classification, Package contents - ft: 1640ft, Core diameter: 26AWG, Kind of material: no flame propagation, Cable structure: 4x2x26AWG, Rated voltage: 300V, Conform to the norm: ISO 11801, Ethernet category: Cat 5e, Resistance to: mechanical stesses; most of chemical compounds; most of oils; most of solvents; UV rays, Cable features: twisted pair conductors, No. of pairs: 4, Cable application: industrial Ethernet, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 74003PU.01500 nach Preis ab 3.73 EUR bis 6.55 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
74003PU.01500 74003PU.01500 Hersteller : BELDEN pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB3DFC75DE90B40D6&compId=74003PU_EN.pdf?ci_sign=25a6ad58cc7d4a8d0eeab5750dd67be3f5dc005e Category: Industrial Ethernet Cables
Description: Wire; SF/UTP; 4x2x26AWG; industrial Ethernet; 5e; stranded; Cu
Type of wire: data transmission
Kind of wire: SF/UTP
Core structure: stranded
Kind of core: Cu
Number of cores: 8
Shield structure: Al-PET foil; braid made of copper wires; shielded twofold
Wire insulation material: PUR
Insulation colour: black
Operating temperature: -40...80°C
Package contents: 500m
Cable external diameter: 6.65mm
CPR standard: no classification
Package contents - ft: 1640ft
Core diameter: 26AWG
Kind of material: no flame propagation
Cable structure: 4x2x26AWG
Rated voltage: 300V
Conform to the norm: ISO 11801
Ethernet category: Cat 5e
Resistance to: mechanical stesses; most of chemical compounds; most of oils; most of solvents; UV rays
Cable features: twisted pair conductors
No. of pairs: 4
Cable application: industrial Ethernet
Anzahl je Verpackung: 1 Stücke
auf Bestellung 314 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
11+6.55 EUR
19+3.95 EUR
20+3.73 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
74003PU.01500 74003PU.01500 Hersteller : Belden 74003pu_techdata.pdf Multi-Conductor Cable Tape/Foil/Braid 8Conductors 26AWG 6.85mm 450VDC/300VAC Black Polyurethane 500m
