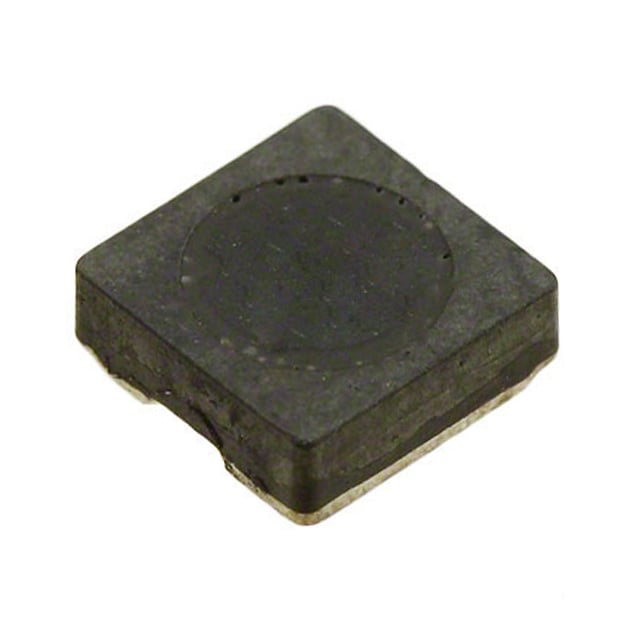

744042004

Hersteller: Würth Elektronik
Description: FIXED IND 4.7UH 1.72A 82 MOHM
Tolerance: ±30%
Packaging: Tape & Reel (TR)
Package / Case: 1919 (4848 Metric)
Size / Dimension: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 82mOhm Max
Frequency - Self Resonant: 70MHz
Current - Saturation (Isat): 1.65A
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.079" (2.00mm)
Part Status: Active
Inductance: 4.7 µH
Current Rating (Amps): 1.72 A

Hersteller: Würth Elektronik
Description: FIXED IND 4.7UH 1.72A 82 MOHM
Tolerance: ±30%
Packaging: Cut Tape (CT)
Package / Case: 1919 (4848 Metric)
Size / Dimension: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Drum Core, Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 82mOhm Max
Frequency - Self Resonant: 70MHz
Current - Saturation (Isat): 1.65A
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.079" (2.00mm)
Part Status: Active
Inductance: 4.7 µH
Current Rating (Amps): 1.72 A

Hersteller: Wurth Elektronik
Power Inductors - SMD WE-TPC 4818 4.7uH 1.72A .07Ohm

Hersteller: WURTH ELEKTRONIK
Description: WURTH ELEKTRONIK - 744042004 - Leistungsinduktivität (SMD), 4.7 µH, 1.72 A, Geschirmt, 1.65 A, WE-TPC Series
tariffCode: 85045000
Produkthöhe: 1.8mm
euEccn: NLR
rohsCompliant: YES
Induktivität: 4.7µH
Bauart der Induktivität: Geschirmt
Induktivitätstoleranz: ± 30%
hazardous: false
rohsPhthalatesCompliant: YES
Bauform/Gehäuse der Induktivität: -
DC-Widerstand, max.: 0.082ohm
Bauform - Leistungsinduktivität: 4.8mm x 4.8mm x 1.8mm
isCanonical: Y
RMS-Strom Irms: 1.72A
Sättigungsstrom (Isat): 1.65A
Produktlänge: 4.8mm
SVHC: No SVHC (04-Feb-2026)
Induktivität: Power
Produktpalette: WE-TPC Series
productTraceability: Yes-Date/Lot Code
usEccn: EAR99
Produktbreite: 4.8mm
