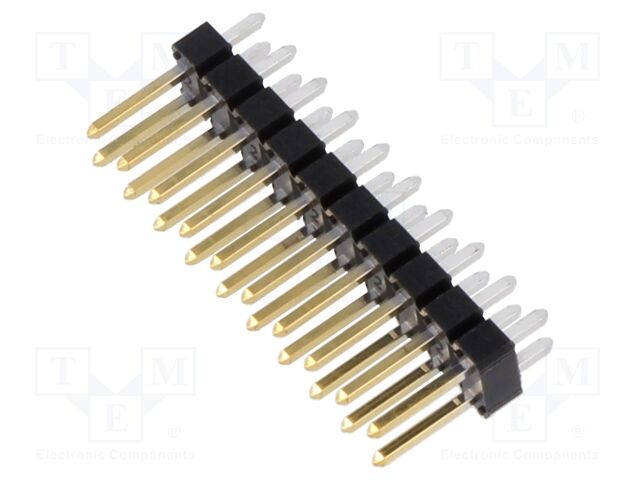

77313-101-20LF AMPHENOL COMMUNICATIONS SOLUTIONS
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 20; THT; BERGSTIK
Manufacturer series: BERGSTIK
Contacts pitch: 2.54mm
Number of pins: 20
Electrical mounting: THT
Connector pinout layout: 2x10
Type of connector: pin strips
Plating thickness: 0.76µm
Kind of package: bulk
Family: FCI
Kind of connector: male
Height: 10.8mm
Connector: pin header
Contact plating: gold-plated
Spatial orientation: straight
| Anzahl | Privatkunde |
|---|---|
| 65+ | 1.31 EUR |
| 71+ | 1.21 EUR |
| 76+ | 1.13 EUR |
| 81+ | 1.06 EUR |
| 100+ | 0.99 EUR |
| 200+ | 0.93 EUR |
| 400+ | 0.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 77313-101-20LF AMPHENOL COMMUNICATIONS SOLUTIONS
Description: CONN HEADER VERT 20POS 2.54MM, Contact Length - Mating: 0.230" (5.84mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Thermoplastic, Overall Contact Length: 0.425" (10.80mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.095" (2.41mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold or Gold, GXT™, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -65°C ~ 130°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 3A per Contact, Connector Type: Header, Breakaway, Packaging: Bulk.
Weitere Produktangebote 77313-101-20LF nach Preis ab 1.31 EUR bis 2.88 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
77313-101-20LF | Amphenol ICC (FCI) |
Description: CONN HEADER VERT 20POS 2.54MM Contact Length - Mating: 0.230" (5.84mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Thermoplastic Overall Contact Length: 0.425" (10.80mm) Shrouding: Unshrouded Insulation Height: 0.100" (2.54mm) Contact Length - Post: 0.095" (2.41mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Mating: Gold or Gold, GXT™ Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -65°C ~ 130°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 20 Mounting Type: Through Hole Current Rating (Amps): 3A per Contact Connector Type: Header, Breakaway Packaging: Bulk |
auf Bestellung 406 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
77313-101-20LF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 77313-101-20LF - Stiftleiste, vertikal, Board-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e) tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 20Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board Steckverbinder: Stiftleiste Produktpalette: BergStik 77313 productTraceability: No Kontaktanschluss: Durchsteckmontage, gerade Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (17-Jan-2023) |
auf Bestellung 102 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
77313-101-20LF | Amphenol FCI |
Headers & Wire Housings 20P STR DR TMT HDR .76 AU .425IN LENGTH |
auf Bestellung 639 Stücke: Lieferzeit 10-14 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 77313-101-20LF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN HEADER VERT 20POS 2.54MM
Contact Length - Mating: 0.230" (5.84mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Thermoplastic
Overall Contact Length: 0.425" (10.80mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.095" (2.41mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold or Gold, GXT™
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -65°C ~ 130°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 3A per Contact
Connector Type: Header, Breakaway
Packaging: Bulk
Description: CONN HEADER VERT 20POS 2.54MM
Contact Length - Mating: 0.230" (5.84mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Thermoplastic
Overall Contact Length: 0.425" (10.80mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.095" (2.41mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold or Gold, GXT™
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -65°C ~ 130°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 20
Mounting Type: Through Hole
Current Rating (Amps): 3A per Contact
Connector Type: Header, Breakaway
Packaging: Bulk
auf Bestellung 406 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 11+ | 1.9 EUR |
| 13+ | 1.62 EUR |
| 200+ | 1.31 EUR |
| 77313-101-20LF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 77313-101-20LF - Stiftleiste, vertikal, Board-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: BergStik 77313
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (17-Jan-2023)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 77313-101-20LF - Stiftleiste, vertikal, Board-to-Board, 2.54 mm, 2 Reihe(n), 20 Kontakt(e)
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 20Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbinder: Stiftleiste
Produktpalette: BergStik 77313
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (17-Jan-2023)
auf Bestellung 102 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 87+ | 2.88 EUR |
| 77313-101-20LF |
|
Hersteller: Amphenol FCI
Headers & Wire Housings 20P STR DR TMT HDR .76 AU .425IN LENGTH
Headers & Wire Housings 20P STR DR TMT HDR .76 AU .425IN LENGTH
auf Bestellung 639 Stücke:
Lieferzeit 10-14 Tag (e)
