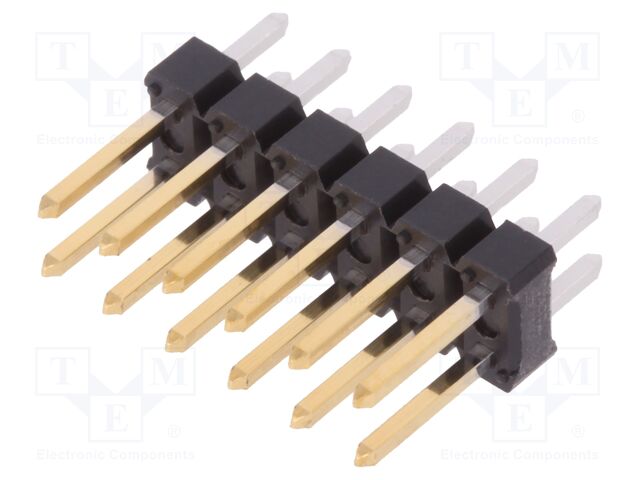

77313-818-12LF

77313-818-12LF AMPHENOL COMMUNICATIONS SOLUTIONS


77313-818-XXLF.pdf Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 12; BERGSTIK; THT
Manufacturer series: BERGSTIK
Height: 11.43mm
Number of pins: 12
Connector pinout layout: 2x6
Contacts pitch: 2.54mm
Kind of package: bulk
Electrical mounting: THT
Plating thickness: 0.38µm
Spatial orientation: straight
Family: FCI
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Contact plating: gold-plated
Anzahl je Verpackung: 1 Stücke
auf Bestellung 514 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
109+0.66 EUR
165+0.43 EUR
186+0.39 EUR
188+0.38 EUR
200+0.36 EUR
250+0.35 EUR
Mindestbestellmenge: 109
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 77313-818-12LF AMPHENOL COMMUNICATIONS SOLUTIONS

Description: CONN HEADER VERT 12POS 2.54MM, Packaging: Bag, Connector Type: Header, Breakaway, Current Rating (Amps): 3A per Contact, Mounting Type: Through Hole, Number of Positions: 12, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 130°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold, GXT™, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.450" (11.43mm), Insulation Material: Thermoplastic, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).

Weitere Produktangebote 77313-818-12LF nach Preis ab 0.35 EUR bis 1.90 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
77313-818-12LF 77313-818-12LF Hersteller : AMPHENOL COMMUNICATIONS SOLUTIONS 77313-818-XXLF.pdf Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 12; BERGSTIK; THT
Manufacturer series: BERGSTIK
Height: 11.43mm
Number of pins: 12
Connector pinout layout: 2x6
Contacts pitch: 2.54mm
Kind of package: bulk
Electrical mounting: THT
Plating thickness: 0.38µm
Spatial orientation: straight
Family: FCI
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Contact plating: gold-plated
auf Bestellung 514 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
109+0.66 EUR
165+0.43 EUR
186+0.39 EUR
188+0.38 EUR
200+0.36 EUR
250+0.35 EUR
Mindestbestellmenge: 109
Im Einkaufswagen  Stück im Wert von  UAH
77313-818-12LF 77313-818-12LF Hersteller : Amphenol FCI bwb_bergstik.pdf Headers & Wire Housings BERGSTIK
auf Bestellung 248 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+1.60 EUR
10+1.26 EUR
100+1.12 EUR
500+0.98 EUR
1000+0.87 EUR
2500+0.78 EUR
5000+0.76 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
77313-818-12LF 77313-818-12LF Hersteller : Amphenol ICC (FCI) bwb_bergstik.pdf Description: CONN HEADER VERT 12POS 2.54MM
Packaging: Bag
Connector Type: Header, Breakaway
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 130°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold, GXT™
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.450" (11.43mm)
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
auf Bestellung 870 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.90 EUR
13+1.45 EUR
100+1.11 EUR
500+0.93 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
77313-818-12LF 77313-818-12LF Hersteller : AMPHENOL COMMUNICATIONS SOLUTIONS 2838119.pdf Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 77313-818-12LF - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 12Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbindertyp: Pin Header
Produktpalette: FCI BergStik 77313 Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (12-Jan-2017)
auf Bestellung 1500 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
77313-818-12LF Hersteller : AMPHENOL / PARTNER STOCK bwb_bergstik.pdf Description: AMPHENOL / PARTNER STOCK - 77313-818-12LF - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366990
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: TBA
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 12Contacts
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Produktpalette: BergStik 77313 Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (23-Jan-2024)
auf Bestellung 2500 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
