Produkte > ALPHA WIRE > 78438 SL005
78438 SL005

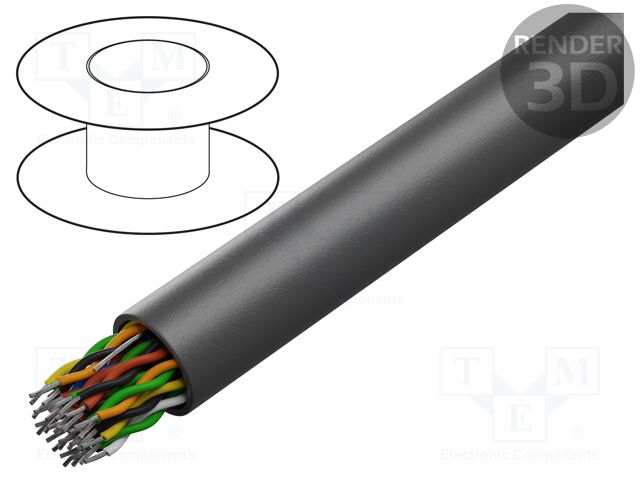

78438 SL005 ALPHA WIRE


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC4D0ED617620D6&compId=78438.pdf?ci_sign=d30677563a02a12958963cf70b37c129f9f2b9af Hersteller: ALPHA WIRE
Category: Multicore Cables - Unshielded
Description: Wire; EcoCable Mini; 25x2x24AWG; unshielded; 300V; 30.5m; Cu; 100ft
Type of wire: control cable
Kind of wire: EcoCable Mini
Cable structure: 25x2x24AWG
Wire insulation material: MPPE
Insulation colour: dark grey
Core structure: stranded
Kind of core: Cu; tinned
Operating temperature: -40...80°C
Number of cores: 50
Cable external diameter: 10.62mm
Core marking: colours without colour repetition
Shield structure: unshielded
CPR standard: no classification
Earth core: none
Kind of material: halogen free
Conform to the norm: C(RU) AWM I A/B FT1; UL 21460; VW-1
Cable features: twisted pair conductors
No. of pairs: 25
Core diameter: 24AWG
Package contents: 30.5m
Package contents - ft: 100ft
Rated voltage: 300V
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 78438 SL005 ALPHA WIRE

Category: Multicore Cables - Unshielded, Description: Wire; EcoCable Mini; 25x2x24AWG; unshielded; 300V; 30.5m; Cu; 100ft, Type of wire: control cable, Kind of wire: EcoCable Mini, Cable structure: 25x2x24AWG, Wire insulation material: MPPE, Insulation colour: dark grey, Core structure: stranded, Kind of core: Cu; tinned, Operating temperature: -40...80°C, Number of cores: 50, Cable external diameter: 10.62mm, Core marking: colours without colour repetition, Shield structure: unshielded, CPR standard: no classification, Earth core: none, Kind of material: halogen free, Conform to the norm: C(RU) AWM I A/B FT1; UL 21460; VW-1, Cable features: twisted pair conductors, No. of pairs: 25, Core diameter: 24AWG, Package contents: 30.5m, Package contents - ft: 100ft, Rated voltage: 300V, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 78438 SL005

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
78438 SL005 78438 SL005 Hersteller : Alpha Wire EcoCableMiniBrochure.pdf Description: 24AWG 25P 300V UNSHIELDED MPPE
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
78438 SL005 78438 SL005 Hersteller : Alpha Wire AW_Product_Specification-1835186.pdf Multi-Conductor Cables 24 AWG 25 Conductor 300V Unshielded, MPPE, MPPE 100 ft Spool, Slate
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
78438 SL005 78438 SL005 Hersteller : ALPHA WIRE pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC4D0ED617620D6&compId=78438.pdf?ci_sign=d30677563a02a12958963cf70b37c129f9f2b9af Category: Multicore Cables - Unshielded
Description: Wire; EcoCable Mini; 25x2x24AWG; unshielded; 300V; 30.5m; Cu; 100ft
Type of wire: control cable
Kind of wire: EcoCable Mini
Cable structure: 25x2x24AWG
Wire insulation material: MPPE
Insulation colour: dark grey
Core structure: stranded
Kind of core: Cu; tinned
Operating temperature: -40...80°C
Number of cores: 50
Cable external diameter: 10.62mm
Core marking: colours without colour repetition
Shield structure: unshielded
CPR standard: no classification
Earth core: none
Kind of material: halogen free
Conform to the norm: C(RU) AWM I A/B FT1; UL 21460; VW-1
Cable features: twisted pair conductors
No. of pairs: 25
Core diameter: 24AWG
Package contents: 30.5m
Package contents - ft: 100ft
Rated voltage: 300V
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
