Produkte > TE CONNECTIVITY > 796638-6

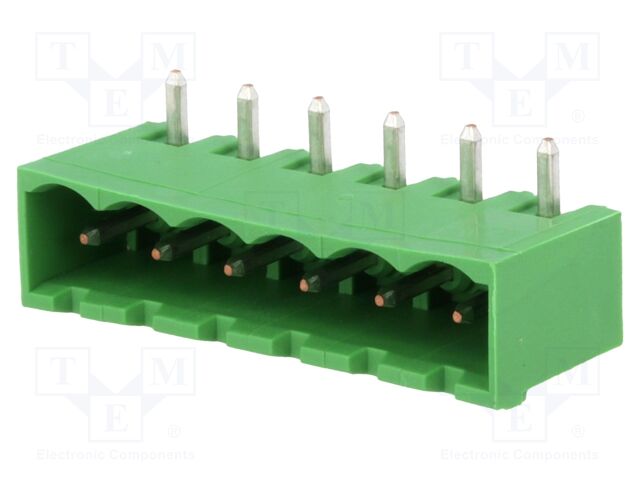

796638-6

796638-6 TE Connectivity

796638-5.pdf Hersteller: TE Connectivity
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 300V
Number of pins: 6
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: copper alloy
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Connector pinout layout: 1x6
Contacts pitch: 5.08mm
Number of ways: 6
Locking system: latch
Conform to the norm: UL
Height: 8.35mm
Operating temperature: -40...105°C
Length: 32.3mm
Depth: 12mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 98 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
27+2.69 EUR
32+2.26 EUR
35+2.09 EUR
100+2.06 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 796638-6 TE Connectivity

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT, Type of connector: pluggable terminal block, Connector: socket, Kind of connector: male, Current rating: 15A, Rated voltage: 300V, Number of pins: 6, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: THT, Contact material: copper alloy, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Connector pinout layout: 1x6, Contacts pitch: 5.08mm, Number of ways: 6, Locking system: latch, Conform to the norm: UL, Height: 8.35mm, Operating temperature: -40...105°C, Length: 32.3mm, Depth: 12mm, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 796638-6 nach Preis ab 1.84 EUR bis 3.19 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
796638-6 796638-6 Hersteller : TE Connectivity 796638-5.pdf Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 300V
Number of pins: 6
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: copper alloy
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Connector pinout layout: 1x6
Contacts pitch: 5.08mm
Number of ways: 6
Locking system: latch
Conform to the norm: UL
Height: 8.35mm
Operating temperature: -40...105°C
Length: 32.3mm
Depth: 12mm
auf Bestellung 98 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
27+2.69 EUR
32+2.26 EUR
35+2.09 EUR
Mindestbestellmenge: 27
Im Einkaufswagen  Stück im Wert von  UAH
796638-6 796638-6 Hersteller : TE Connectivity AMP Connectors product-796638-6.datasheet.pdf Description: TERM BLOCK HDR 6POS 90DEG 5.08MM
Packaging: Bulk
Color: Green
Mounting Type: Through Hole
Number of Positions: 6
Pitch: 0.200" (5.08mm)
Type: Header, Male Pins, Shrouded (4 Side)
Operating Temperature: -40°C ~ 110°C
Termination Style: Solder
Number of Levels: 1
Positions Per Level: 6
Header Orientation: 90°, Right Angle
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 15 A
Voltage - UL: 300 V
auf Bestellung 6117 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.13 EUR
10+2.87 EUR
25+2.78 EUR
50+2.75 EUR
100+2.56 EUR
300+2.51 EUR
500+2.29 EUR
1000+2.05 EUR
5000+1.84 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
796638-6 796638-6 Hersteller : TE Connectivity ENG_CD_796638_C7-2424041.pdf Pluggable Terminal Blocks 5.08MM RA HDR 6P
auf Bestellung 3660 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+3.19 EUR
10+2.46 EUR
50+2.34 EUR
100+2.06 EUR
200+1.95 EUR
500+1.92 EUR
Im Einkaufswagen  Stück im Wert von  UAH
796638-6 796638-6 Hersteller : BUCHANAN - TE CONNECTIVITY 1650926.pdf Description: BUCHANAN - TE CONNECTIVITY - 796638-6 - Standard-Reihenklemme, Termi-Blok, 6 Kontakt(e), 5.08 mm, Klemmenblock, Euro
tariffCode: 85366990
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
Steckverbindermontage: Leiterplattenmontage
usEccn: EAR99
Leiterstärke (AWG), max.: 12AWG
Anzahl der Kontakte: 6Kontakt(e)
euEccn: NLR
Steckverbindertyp: Klemmenblock, Euro
Leiterstärke (AWG), min.: 30AWG
Produktpalette: Termi-Blok
productTraceability: No
Rastermaß: 5.08mm
SVHC: No SVHC (27-Jun-2024)
auf Bestellung 685 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
