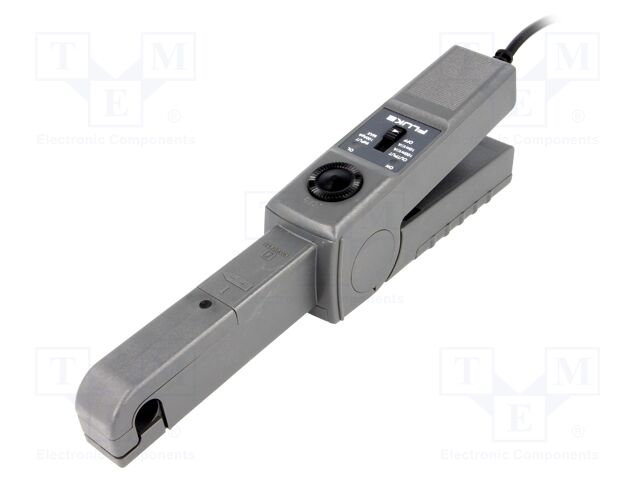

80I-110S FLUKE
Hersteller: FLUKECategory: Meters and AC/DC Clamp Probes
Description: AC/DC current clamp adapter; Øcable: 11.8mm; 600V; Len: 1.6m; BNC
Type of test accessories: AC/DC current clamp adapter
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Measuring instrument features: measurement by means of Hall-effect sensor; permanently connected test leads; zero adjustment function
AC current measuring range: 100mA...10A; 100A
DC current measuring range: 100mA...10A; 100A
Max. diameter of measured cable: 11.8mm
Dimensions: 231x67x36mm
Cable length: 1.6m
DC current measuring accuracy: ±(3% + 50mA)
AC current measuring accuracy: ±(3% + 50mA)
Weight with battery: 330g
Output signal: 10mV/1A (for 100A); 100mV/1A (for 10A)
Max. operating voltage: 600V
Measurement: AC current; DC current
Kind of connector: BNC
Power supply: battery 6LR61 9V x1
Battery/ rechargeable battery: battery 6LR61 9V x1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 1495.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 80I-110S FLUKE
Category: Meters and AC/DC Clamp Probes, Description: AC/DC current clamp adapter; Øcable: 11.8mm; 600V; Len: 1.6m; BNC, Type of test accessories: AC/DC current clamp adapter, Conform to the norm: CAT II 600V; CAT III 300V; EN 61010, Measuring instrument features: measurement by means of Hall-effect sensor; permanently connected test leads; zero adjustment function, AC current measuring range: 100mA...10A; 100A, DC current measuring range: 100mA...10A; 100A, Max. diameter of measured cable: 11.8mm, Dimensions: 231x67x36mm, Cable length: 1.6m, DC current measuring accuracy: ±(3% + 50mA), AC current measuring accuracy: ±(3% + 50mA), Weight with battery: 330g, Output signal: 10mV/1A (for 100A); 100mV/1A (for 10A), Max. operating voltage: 600V, Measurement: AC current; DC current, Kind of connector: BNC, Power supply: battery 6LR61 9V x1, Battery/ rechargeable battery: battery 6LR61 9V x1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 80I-110S nach Preis ab 1495.67 EUR bis 1770.54 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||
|---|---|---|---|---|---|---|---|---|---|
|
+3 |
80I-110S | Hersteller : FLUKE |
Category: Meters and AC/DC Clamp Probes Description: AC/DC current clamp adapter; Øcable: 11.8mm; 600V; Len: 1.6m; BNC Type of test accessories: AC/DC current clamp adapter Conform to the norm: CAT II 600V; CAT III 300V; EN 61010 Measuring instrument features: measurement by means of Hall-effect sensor; permanently connected test leads; zero adjustment function AC current measuring range: 100mA...10A; 100A DC current measuring range: 100mA...10A; 100A Max. diameter of measured cable: 11.8mm Dimensions: 231x67x36mm Cable length: 1.6m DC current measuring accuracy: ±(3% + 50mA) AC current measuring accuracy: ±(3% + 50mA) Weight with battery: 330g Output signal: 10mV/1A (for 100A); 100mV/1A (for 10A) Max. operating voltage: 600V Measurement: AC current; DC current Kind of connector: BNC Power supply: battery 6LR61 9V x1 Battery/ rechargeable battery: battery 6LR61 9V x1 |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
 |
80I-110S | Hersteller : Fluke Electronics |
Description: SCOPEMETER R PROBE AC/DC 1-100A Packaging: Bulk Type: Current Meter, Clamp/Probe (Add On) Specifications: Measures AC, DC Current to 100A, BNC Interface Ratings: CAT II 600V, CAT III 300V Part Status: Active |
auf Bestellung 9 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
80I-110S | Hersteller : Fluke |
Test Probes AC/DC CURRENT PROBE, SCOPEMETER(R) |
Produkt ist nicht verfügbar |
