82-4552.1133 EAO
Hersteller: EAO

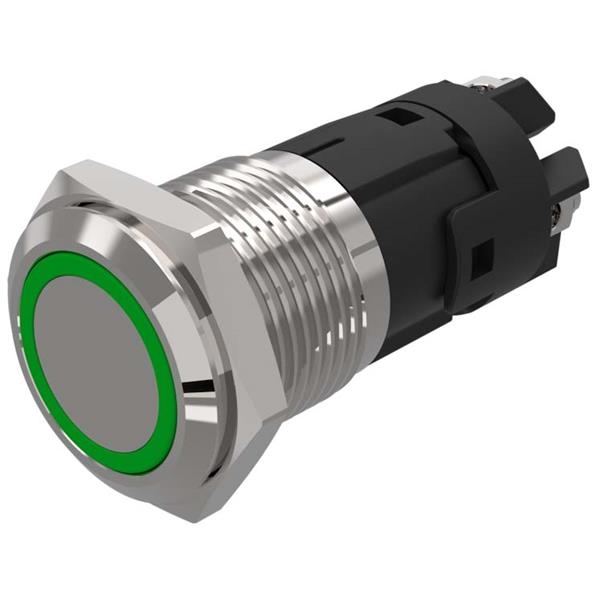

Pushbutton Switches 82-4552.1133.Illuminated pushbutton.momentary.16 mm.aluminium natural.flush/flat.ring.green.12 V.screw terminal
Produktrezensionen
Produktbewertung abgeben
Technische Details 82-4552.1133 EAO
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/240VAC; 3A/240VDC; green, Manufacturer series: 82, Contact material: silver, Leads: screw, Button shape: flat; round, Backlight colour: green, IP rating: IP65; IP67, Illumination: LED; ring, Type of switch: vandal resistant, Switching method: ON-(ON), Contacts configuration: SPDT, Operating temperature: -30...70°C, Mounting hole diameter: Ø16mm, Max. contact resistance:: 50mΩ, DC contacts rating @R: 3A / 240V DC, Stable positions number: 1, Number of positions: 2, AC contacts rating @R: 3A / 240V AC, Illumination voltage: 12V, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Body material: aluminium anodised.
Weitere Produktangebote 82-4552.1133
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
82-4552.1133 | EAO |
 Category: Push Button SwitchesDescription: Switch: vandal resistant; Pos: 2; SPDT; 3A/240VAC; 3A/240VDC; green Manufacturer series: 82 Contact material: silver Leads: screw Button shape: flat; round Backlight colour: green IP rating: IP65; IP67 Illumination: LED; ring Type of switch: vandal resistant Switching method: ON-(ON) Contacts configuration: SPDT Operating temperature: -30...70°C Mounting hole diameter: Ø16mm Max. contact resistance:: 50mΩ DC contacts rating @R: 3A / 240V DC Stable positions number: 1 Number of positions: 2 AC contacts rating @R: 3A / 240V AC Illumination voltage: 12V Electrical life: 50000 cycles Mechanical durability: 1000000 cycles Body material: aluminium anodised |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 5 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 82-4552.1133 |
|
Hersteller: EAO
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/240VAC; 3A/240VDC; green
Manufacturer series: 82
Contact material: silver
Leads: screw
Button shape: flat; round
Backlight colour: green
IP rating: IP65; IP67
Illumination: LED; ring
Type of switch: vandal resistant
Switching method: ON-(ON)
Contacts configuration: SPDT
Operating temperature: -30...70°C
Mounting hole diameter: Ø16mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 240V DC
Stable positions number: 1
Number of positions: 2
AC contacts rating @R: 3A / 240V AC
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Body material: aluminium anodised
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/240VAC; 3A/240VDC; green
Manufacturer series: 82
Contact material: silver
Leads: screw
Button shape: flat; round
Backlight colour: green
IP rating: IP65; IP67
Illumination: LED; ring
Type of switch: vandal resistant
Switching method: ON-(ON)
Contacts configuration: SPDT
Operating temperature: -30...70°C
Mounting hole diameter: Ø16mm
Max. contact resistance:: 50mΩ
DC contacts rating @R: 3A / 240V DC
Stable positions number: 1
Number of positions: 2
AC contacts rating @R: 3A / 240V AC
Illumination voltage: 12V
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Body material: aluminium anodised
