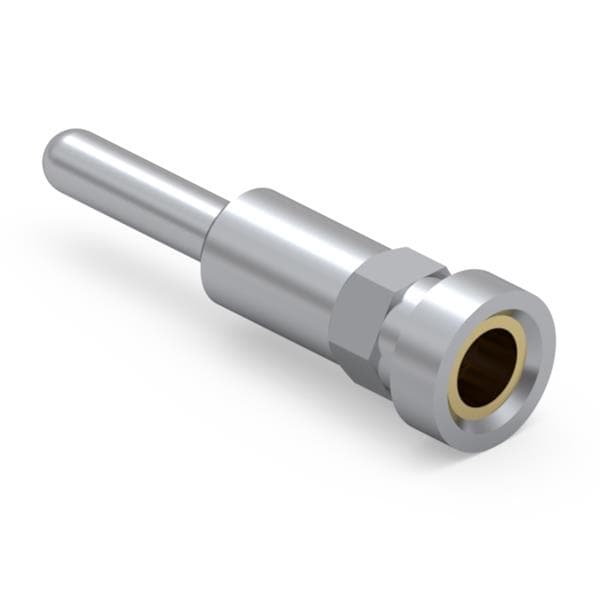

Technische Details 8401-0-15-01-47-27-04-0 Mill-Max Mfg. Corp.
Description: CONN RECEPT PIN .025-.037" .120", Accepts Square Pin Size: 0.025" (0.64mm), Socket Depth: 0.144" (3.66mm), Tail Diameter: 0.031" (0.79mm), Pin Hole Diameter: 0.051" (1.30mm), Accepts Pin Diameter: 0.025" ~ 0.037" (0.64mm ~ 0.94mm), Tail Type: Standard Tail, Contact Material: Beryllium Copper, Contact Finish Thickness: 30.0µin (0.76µm), Mounting Hole Diameter: 0.063" (1.60mm), Termination: Press-Fit, Hex, Length - Overall: 0.285" (7.24mm), Flange Diameter: 0.079" (2.01mm), Contact Finish: Gold, Packaging: Bulk.
Weitere Produktangebote 8401-0-15-01-47-27-04-0
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| 8401-0-15-01-47-27-04-0 | Hersteller : Mill-Max Manufacturing Corp. |
Description: CONN RECEPT PIN .025-.037" .120" Accepts Square Pin Size: 0.025" (0.64mm) Socket Depth: 0.144" (3.66mm) Tail Diameter: 0.031" (0.79mm) Pin Hole Diameter: 0.051" (1.30mm) Accepts Pin Diameter: 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Tail Type: Standard Tail Contact Material: Beryllium Copper Contact Finish Thickness: 30.0µin (0.76µm) Mounting Hole Diameter: 0.063" (1.60mm) Termination: Press-Fit, Hex Length - Overall: 0.285" (7.24mm) Flange Diameter: 0.079" (2.01mm) Contact Finish: Gold Packaging: Bulk |
Produkt ist nicht verfügbar |
||
 |
8401-0-15-01-47-27-04-0 | Hersteller : Mill-Max | Pin & Socket Connectors 200u SN/PB OVER NI 47 CON |
Produkt ist nicht verfügbar |
